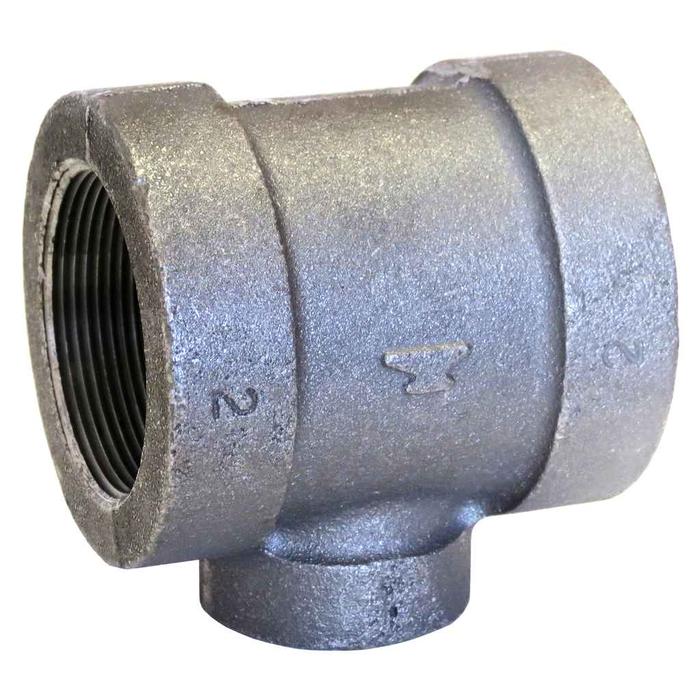

2X2X11/4 XH BLK MI TEE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 2
- Size 2:
- 2
- Size 3:
- 1.25
- Strength:
- XH
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 4.22 lbs
ASC Engineered Solutions 310525407 – Frequently Asked Questions
1) What size is the ASC Engineered Solutions black malleable iron reducing tee, and which outlet is the reduced one?
It's a 2 x 2 x 1-1/4 inch reducing tee. The run is 2 inch on both ends and the branch outlet steps down to 1-1/4 inch, so you tap a 1-1/4 inch line off a 2 inch run without needing a separate bushing.
2) Are the ends of this 2 x 2 x 1-1/4 malleable iron tee threaded, and what thread type?
All three openings are female pipe thread (FPT), cut to ASME B1.20.1, which is standard NPT. It mates directly with male-threaded black steel or malleable nipples and pipe of the matching size, no adapters needed.
3) What does the XH marking mean on this black iron tee, and is it interchangeable with a standard weight tee?
XH is extra heavy, a thicker wall than standard weight, which raises the pressure rating under ASME B16.3. The threads and takeout follow the same ASME B16.3 dimensional standard, so it threads onto the same NPT pipe as a standard 150 tee, but it is physically heavier and bulkier. Spec it where the drawing calls for extra heavy; don't substitute a standard fitting in its place.
4) Is this ASC black tee UL listed and FM approved for fire protection piping?
Yes, the 2 x 2 x 1-1/4 extra heavy black tee carries UL/FM, so it can be used on fire sprinkler and fire protection piping where a UL Listed, FM Approved threaded fitting is required.
5) Can I use this black malleable iron tee on a potable water line?
No. Black malleable iron is for gas, fire protection, steam, and non-potable service. The black finish has no corrosion-resistant coating, so for potable water use a galvanized or brass/copper fitting instead.
6) What material spec does this extra heavy tee meet?
The casting is malleable iron to ASTM A-197, with dimensions and pressure rating to ASME B16.3. That's the combination most commercial mechanical and fire protection specs call out for threaded malleable fittings.
