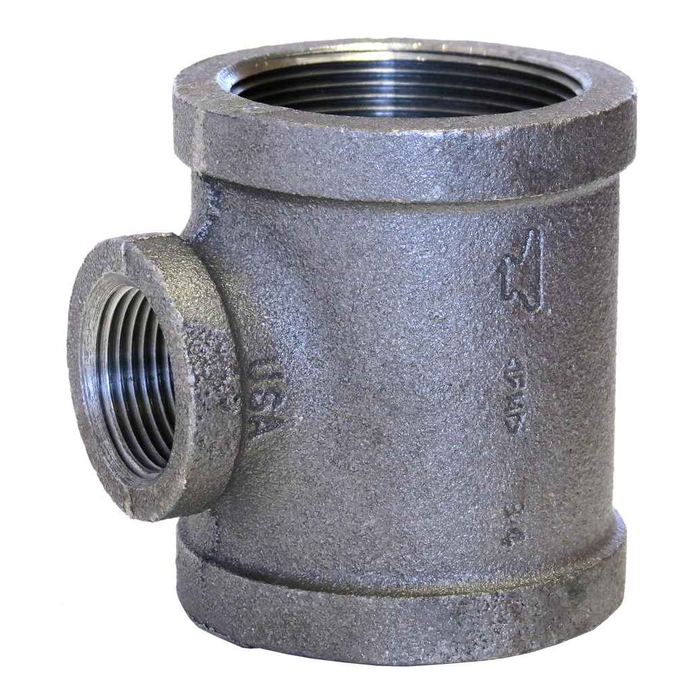

2X2X3/4 GALV MI TEE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 2
- Size 2:
- 2
- Size 3:
- 0.75
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 1.94 lbs
ASC Engineered Solutions 311049407 – Frequently Asked Questions
1) What size pipe does the ASC 2 x 2 x 3/4 galvanized malleable iron tee take on each opening?
Run is 2 inch on both ends, branch is 3/4 inch. All three openings are female pipe thread (FPT), so it threads onto male-threaded pipe ends. Use it where you need a 3/4 inch takeoff off a 2 inch line without reducing the run.
2) Is this galvanized tee approved for fire sprinkler piping?
It carries UL/FM approval, so it can be used on fire protection piping where UL Listed and FM Approved fittings are required. It's standard (STD) pattern malleable iron with pressure ratings per ASME B16.3.
3) Is the galvanizing on this ASC malleable iron tee hot-dip, and will it hold up outdoors?
The zinc coating is applied to ASTM A-153, the hot-dip galvanizing standard for iron and steel hardware. That's the coating normally specified for wet, outdoor, and corrosive-service piping, and it matches galvanized steel pipe so you aren't mixing coatings in the same run.
4) Should I use a galvanized malleable iron tee or a black iron tee on my line?
Go galvanized for domestic water, wet sprinkler systems, and any damp or exterior run where corrosion is the concern. Black malleable iron is the usual pick for gas and dry, indoor service. This one is galvanized malleable iron to ASTM A-197, so it belongs on the wet side.
5) Can I use a bushing in a straight 2 inch tee instead of buying this 2x2x3/4 reducing tee?
You can, but the reducing tee is the cleaner build. A 2 x 2 x 3/4 tee gives you the 3/4 FPT branch directly, so you skip a bushing joint, one more thread seal, and the extra leak path. It also keeps the assembly within ASME B16.3 dimensions, which matters if the run is dimensioned on a drawing.
6) What's the ASC part number for the 2 x 2 x 3/4 galvanized tee?
Manufacturer part number 311049407 from ASC Engineered Solutions. That's the number to quote for the 2 x 2 x 3/4 galvanized malleable iron reducing tee with FPT ends.
