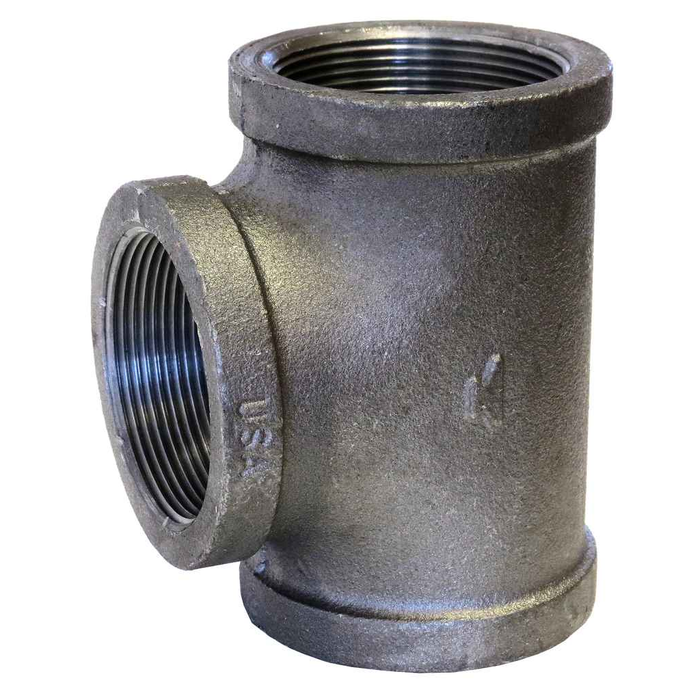

3 GALV MI TEE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 3
- Size 2:
- 3
- Size 3:
- 3
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 7.25 lbs
ASC Engineered Solutions 311031207 – Frequently Asked Questions
1) Is the ASC Engineered Solutions 3 inch galvanized malleable iron tee threaded on all three openings?
All three outlets are FPT (female pipe thread), and all three are 3 inch, so it is a straight run tee with a full-size 3 inch branch. Threads follow ASME B1.20.1, the NPT standard, so it mates with standard threaded steel or iron pipe and nipples cut to NPT.
2) Can this 3 inch malleable iron tee be used on a wet fire sprinkler system?
It carries UL/FM approval, so it is acceptable for fire protection piping, and the galvanized finish is what most specs call for on wet and dry sprinkler mains. It is a standard (STD) pressure class malleable iron fitting to ASME B16.3, threaded NPT.
3) Is the galvanizing on this ASC tee hot dip, and will it match galvanized pipe?
The coating is specified to ASTM A-153, which is hot dip galvanizing on iron and steel hardware. That pairs it with standard galvanized threaded pipe for water service and sprinkler work without creating a bare-steel joint at the fitting.
4) What is this tee made of, and can I use it on steam or compressed air?
Material is malleable iron to ASTM A-197, in the standard (STD) pressure class per ASME B16.3. Malleable iron threaded fittings in that class are the common choice for water, air, gas, and low pressure steam service in building mechanical work, within the B16.3 rating for the class and size.
5) What part number do I order for the ASC 3 inch galvanized tee?
The manufacturer part number is 311031207, an ASC Engineered Solutions 3 x 3 x 3 galvanized malleable iron tee with FPT ends.
6) Is this a reducing tee or a full size tee?
Full size. Sizes 1, 2 and 3 are all 3 inch, so the branch is the same as the run. If you need to drop to a smaller branch, you either order a reducing tee or use this one with a bushing in the outlet.
