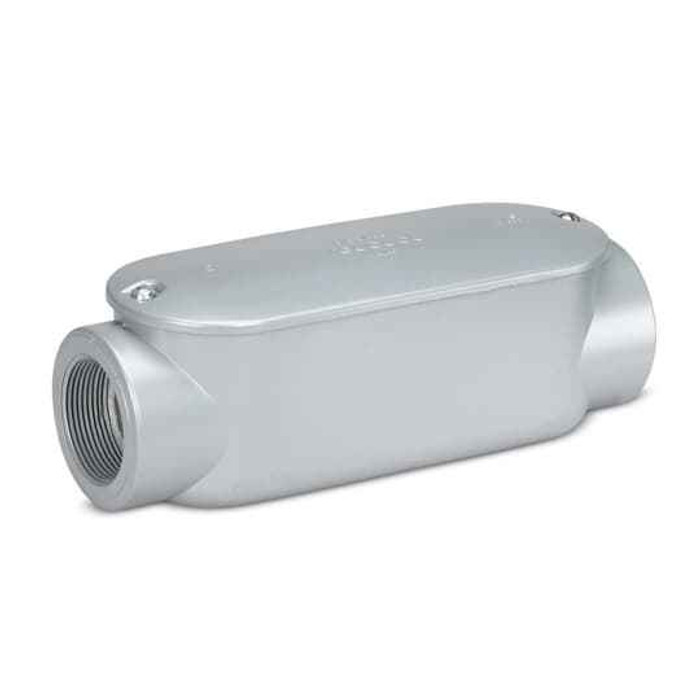

3 INCH RGD THRFD CONDUIT BODY
Manufacturer Resources
Product Specs
- Application:
- For Use with Rigid/IMC Conduit
- Number Of Batteries:
- 0
- Product Group:
- Conduit & Fittings
- Product Type:
- Conduit Body - Series A - Rigid/IMC
- Department:
- Electrical
- Product Subgroup:
- Conduit Bodies
- Product Material:
- Aluminum Die Cast
Red Dot AC-8 – Frequently Asked Questions
1) Can I use a 3 inch Red Dot AC-8 on EMT?
No. The AC-8 is threaded for rigid and IMC conduit only. EMT is unthreaded, so you would need an EMT-to-threaded coupling or a conduit body intended for EMT. Running it directly onto EMT is not a valid connection.
2) Should I use a 3 inch conduit body or a pull box for a 3 inch rigid run?
A conduit body like the AC-8 is the lighter-weight choice when you need to change direction or gain a pulling point on a 3 inch rigid or IMC run without the volume of a box. Use a pull or junction box instead when you are splicing conductors or need the cubic-inch volume for multiple raceways entering from several directions. Conduit bodies of this type are pulling fittings, not splice enclosures, unless the body is marked with a volume.
3) What is the Red Dot AC-8 made of, and will it hold up outdoors on a roof or exterior wall?
The body is die cast aluminum. Aluminum resists corrosion in outdoor and damp exterior runs and is lighter than malleable iron on a 3 inch run, which matters when you are supporting a large body off a wall or rooftop sleeper. For a weatherproof installation you still need the matching cover and gasket.
4) Does the Red Dot AC-8 come with a cover and gasket?
The AC-8 is the conduit body itself. A cover and gasket are ordered separately and sized to the body, so add them to the order if you need the opening closed up or the run kept weathertight. Pulling elbows and bodies are shipped as the casting with hubs only.
5) What does the "Series A" designation on a Red Dot AC-8 conduit body mean?
Series A is the Red Dot family designation for its threaded rigid/IMC conduit bodies, and the AC-8 is the 3 inch size in that family. When a distributor or inspector asks for the exact item, the manufacturer part number is AC-8.
