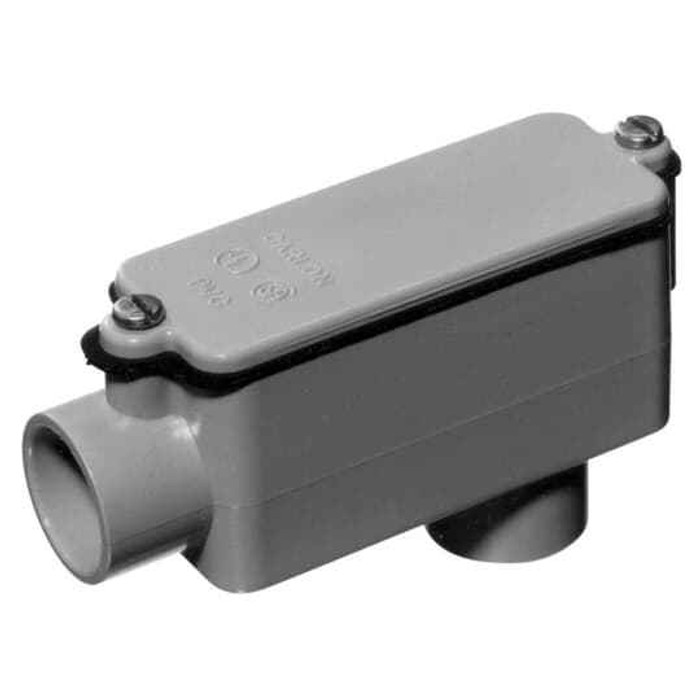

Carlon 3 Inch Gray PVC Type LB Conduit Body with Textured Lid

Carlon 3 Inch Gray PVC Type LB Conduit Body with Textured Lid

Professional-Grade Schedule 40/80 Conduit Fitting Solution

The Carlon 3 Inch Gray PVC Type LB Conduit Body delivers professional-grade conduit system performance for Schedule 40 and 80 conduit installations. This PVC conduit body features textured lid design for enhanced grip and durability, designed for electrical contractors and installers who demand reliable performance and code-compliant safety in their conduit routing applications.

Professional Features & Benefits

Superior Construction Quality

• Heavy-Duty PVC Construction - Provides exceptional durability and corrosion resistance for long-lasting conduit system performance
• Textured Lid Design - Enhanced grip surface ensures secure handling during installation and maintenance procedures
• Precision Molded Body - Accurate dimensions guarantee proper fit with Schedule 40 and 80 conduit systems
• Professional Gray Finish - Standard electrical industry color coding for consistent system appearance and identification

Code Compliance & Safety

• Schedule 40/80 Compatibility - Engineered for reliable connection with standard electrical conduit systems
• Type LB Configuration - Provides 90-degree directional change with removable cover for wire pulling access
• Code Compliant Design - Meets electrical installation standards for residential and commercial applications

Technical Specifications

3 inch nominal size Type LB conduit body constructed from durable PVC material with professional gray finish. Features textured lid for enhanced grip and handling. Dimensions: 13-1/4 inches length x 4-11/32 inches width. Compatible with Schedule 40 and 80 conduit systems. Sold individually per each unit.

Installation Process

1. Verify conduit alignment and measure required directional change for proper Type LB placement
2. Apply appropriate PVC primer and cement to conduit ends following manufacturer specifications
3. Insert conduit firmly into conduit body hubs ensuring complete seating for reliable connection
4. Allow proper cure time for cement joint before proceeding with wire installation procedures
5. Remove textured lid to access wire pulling chamber during conductor installation
6. Replace and secure lid after wire pulling completion to maintain system integrity and protection

Professional Applications

Ideal for:

• Residential Electrical Systems - Home wiring conduit routing around obstacles and directional changes
• Commercial Building Installations - Office and retail electrical conduit systems requiring access points
• Industrial Conduit Networks - Manufacturing facility electrical distribution with maintenance access needs
• Outdoor Electrical Installations - Weather-resistant conduit routing for exterior electrical systems
• Underground Conduit Systems - Buried electrical distribution with corrosion-resistant PVC construction
• Conduit Direction Changes - 90-degree routing solutions in tight spaces and around structural elements
• Wire Pulling Access Points - Strategic placement for efficient conductor installation and maintenance
• Electrical Panel Connections - Service entrance and distribution panel conduit terminations

PVC Material Advantage

Carlon PVC conduit bodies offer superior corrosion resistance compared to metallic alternatives, making them ideal for moisture-prone environments, chemical exposure areas, and underground installations. The lightweight PVC construction reduces installation labor while maintaining structural integrity and electrical safety standards throughout the system lifecycle.

Why Choose Carlon Quality?

Carlon demonstrates unwavering commitment to electrical safety through precision-engineered conduit system components that meet rigorous industry standards. Our Type LB conduit bodies provide electrical professionals with reliable performance, code-compliant installations, and the durability required for long-term electrical system integrity in demanding applications.
