3-POINT JUNCTION W/O BRKT
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Group:
- Components & Hardware
- Product Type:
- 3-Point Junction
- Selling Unit Of Measure:
- each
- Standards:
- ANSI/IEEE 386
- Temperature Range:
- -40 to +65 °C
- Type2:
- Cable accessories
- Department:
- Electrical
- Product Subgroup:
- Miscellaneous
- Product Material:
- EPDM Rubber
Blackburn 164J3-5 – Frequently Asked Questions
1) What is the Blackburn 164J3-5 used for in a padmount or underground distribution setup?

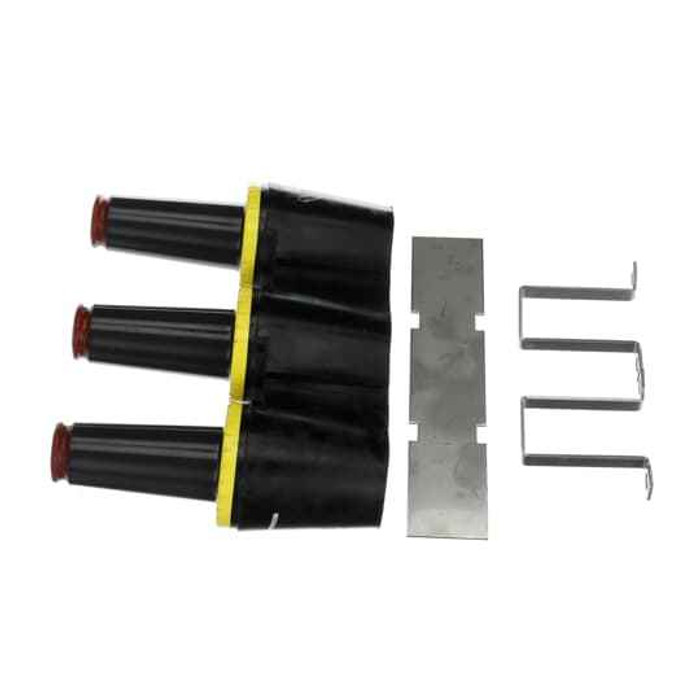

The 164J3-5 is a 3-point junction, a separable connector cable accessory that ties three load-break elbow connections together at a single point. It is used in underground residential and commercial distribution to branch or loop feed cable runs without splicing.
2) Does the Blackburn 164J3-5 junction come with a mounting bracket?
No. The 164J3-5 is the no-bracket version, so you order the mounting bracket separately if the installation needs the junction fixed to a pad, cabinet wall, or standoff. Plan the mounting hardware into the job before the crew is on site.
3) Is the Blackburn 164J3-5 3-point junction compatible with standard 200A load-break elbows?
The junction is built to ANSI/IEEE 386, the standard that governs separable insulated connector systems and the interface dimensions for load-break and dead-break elbows. Any elbow built to that same 386 interface in the matching class will mate with it.
4) Can the Blackburn 164J3-5 junction handle cold weather direct-buried vault installs?
Rated for -40 to +65 degrees C, so it holds up in northern winter vaults and in hot summer pad enclosures. The insulating body is EPDM rubber, which is what gives it that low-temperature flexibility and resistance to ozone and moisture.
5) Is the Blackburn 164J3-5 made in the USA for domestic-preference procurement?
Country of origin on the 164J3-5 is the United States, which is what government, municipal utility, and institutional buyers working under domestic-sourcing requirements need on the submittal.
6) What part number should I quote for the Blackburn 3-point junction without bracket?
Blackburn manufacturer part number 164J3-5 is the 3-point junction supplied without a bracket. That is the number to put on the PO or the submittal.
7) Is the Blackburn 164J3-5 sold individually or in a box?
It sells each, one junction per unit, so utility and MRO buyers can order exact quantities against a work order rather than a case pack.
