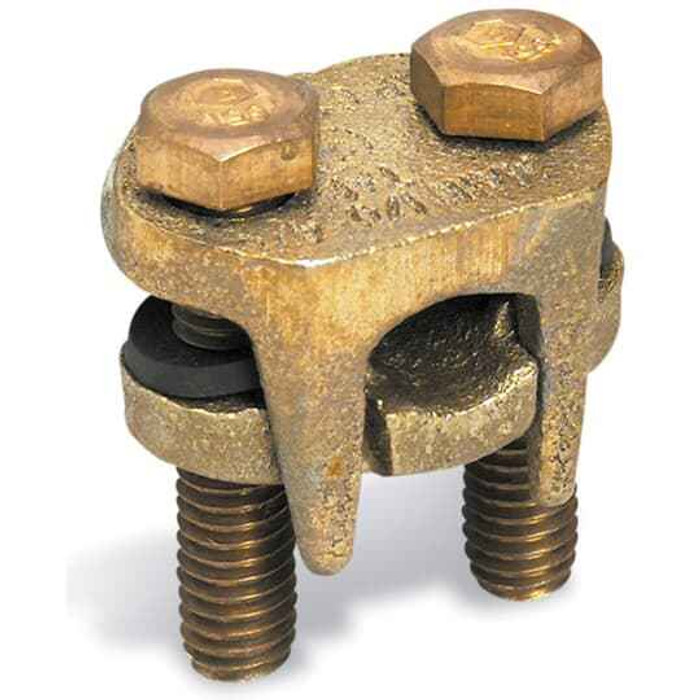

CU 2BLT CONN W/O SPCR 750-1000 5/16
Manufacturer Resources
Product Specs
- Country Of Origin:
- India (IN)
- Outside Diameter:
- 15/16 in
- Product Group:
- Wire & Cable Management
- Product Type:
- Two-Bolt Connector
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Type2:
- Mechanical connectors
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Material:
- Copper
Blackburn 2B1000 – Frequently Asked Questions
1) Is the Blackburn 2B1000 connector copper or aluminum, and can I use it on aluminum conductors?
Copper body, copper conductors. The 2B1000 is a copper mechanical connector, so use it on copper conductor runs. If your feeder is aluminum or you are splicing aluminum to copper, you need a dual-rated AL9CU connector instead.
2) Does the Blackburn 2B1000 come with a spacer?
No spacer. The 2B1000 is the without-spacer version of the two-bolt connector. Spacers are used when you need to make up a run of smaller conductors in a larger connector barrel, so if your job calls for one, order the spacer version rather than adding a shim.
3) Will the 2B1000 connector fit inside my enclosure or gutter?
Plan around a 15/16 inch outside diameter on the barrel, plus the bolt heads and wrench clearance above it. Two-bolt connectors on 750 to 1000 kcmil copper take real room in a pull box or gutter, so check your wire bending space before you commit to the location.
4) Is the Blackburn 2B1000 sold individually or in a pack?
Sold each. One 2B1000 connector per unit, so count your terminations, one per conductor landing, and order that quantity.
