Spears PVC DWV Combination Wye & 1/8 Bend, Hub x Hub x Hub

Spears PVC DWV Combination Wye & 1/8 Bend, Hub x Hub x Hub

(No reviews yet) Write a Review

Model: P501-020

In Stock (leaves warehouse same day if ordered before 3pm ET)

$9.04
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Spears PVC DWV Combination Wye & 1/8 Bend, Hub x Hub x Hub

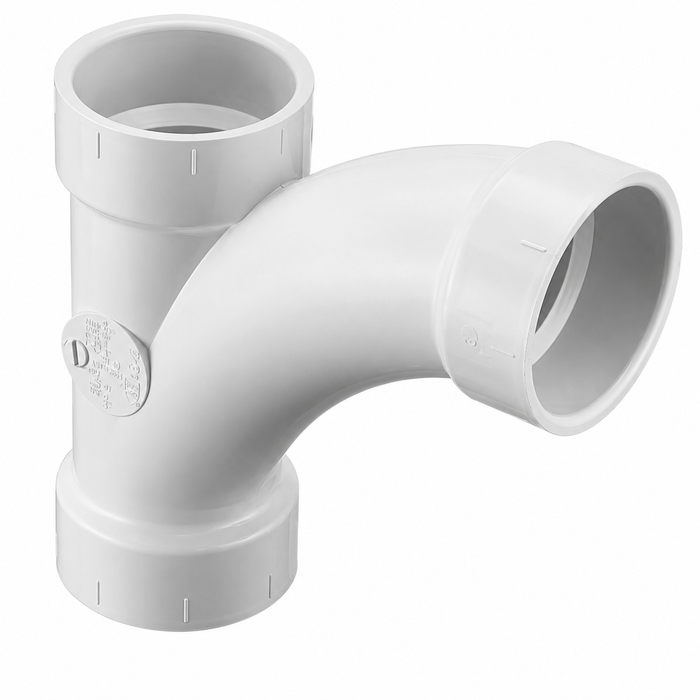

The Spears PVC DWV Combination Wye & 1/8 Bend is a hub x hub x hub fitting engineered for drain, waste, and vent (DWV) piping systems. Molded in durable PVC, this combination fitting merges a wye branch with a 1/8 bend into a single unit, streamlining directional and branch connections in a DWV run. Supplied 10 ea per package, it is built to deliver a dependable, long-lasting connection point in residential and commercial plumbing installations.

Key Features

  • Durable Construction: Molded PVC material provides corrosion resistance and long-term durability in DWV applications.
  • Combination Fitting Design: Combines a wye branch with a 1/8 bend in one fitting, reducing the number of joints needed in a DWV line.
  • Hub x Hub x Hub Connections: Three hub-style connection points for straightforward solvent-welded joining to matching PVC DWV pipe and fittings.
  • Packaging: Supplied 10 ea per package for convenient stocking and installation planning.

Technical Specifications

  • Product Type: Elbow
  • Product Group: PVC & CPVC Fittings
  • Department: Plumbing
  • Packaging: 10 ea

Typical Applications

  • Drain, Waste, and Vent (DWV) Piping Systems
  • Residential and Commercial Plumbing Installations
  • Branch and Directional Connections in DWV Runs
  • Renovation and New Construction Plumbing

Why Spears?

Spears PVC DWV fittings are molded for reliable, code-compliant performance in demanding plumbing installations. This combination wye and 1/8 bend fitting reflects Spears' focus on durable PVC construction that simplifies installation while maintaining dependable, long-lasting connections.

Product Specs

Product Type:
Elbow
Department:
Plumbing
Product Group:
PVC & CPVC Fittings
Product Material:
PVC
Product Subgroup:
Pipe Fittings

Spears P501-020 – Frequently Asked Questions

1) What sizes does the Spears P501 PVC DWV combination wye and 1/8 bend come in?
Three sizes: 2 inch (P501-020), 3 inch (P501-030), and 4 inch (P501-040). All three are hub x hub x hub, so every opening takes PVC DWV pipe solvent welded into the socket. Sizes are same-size all around, so a 3 inch fitting takes 3 inch pipe on the run and the branch alike.
2) What is a combination wye and 1/8 bend actually used for on a DWV line?
It merges a wye branch with a 1/8 bend (45 degrees) into one body, so a branch line enters the main at a sweep and is already turned toward flow direction. That saves you buying a separate wye plus a 45 and gluing an extra joint. Typical use is picking up a fixture branch off a horizontal drain or transitioning a vertical stack into horizontal, where code wants a long sweep rather than a hard 90.
3) Will the Spears P501 join to ABS drain pipe?
It is PVC, so it solvent welds to PVC DWV pipe and fittings. It will not chemically bond to ABS with standard PVC cement. Where you have to tie PVC to an existing ABS line, make the change with a mechanical coupling rather than trying to glue this hub to ABS.
4) Do hub connections on this fitting need glue, or do they take a gasket?
Solvent weld. The three hub sockets are made for solvent cementing to matching PVC DWV pipe, so you will need PVC primer and DWV-rated PVC cement on the job. There is no gasket or O-ring in the socket, and it does not thread.
5) How many come in a pack of the Spears P501 combo wye?
Supplied 10 each per package. That is the stocking unit for property maintenance shops and plumbing contractors buying a size for repeat use, so plan the order in multiples rather than singles.
6) Is the 3 inch Spears combo wye suitable for a commercial building drain, or is it residential only?
Both. The P501 is used in residential and commercial DWV installations, new construction and renovation alike. For multi-family and commercial work the 3 inch (P501-030) and 4 inch (P501-040) are the usual building drain and stack sizes.
