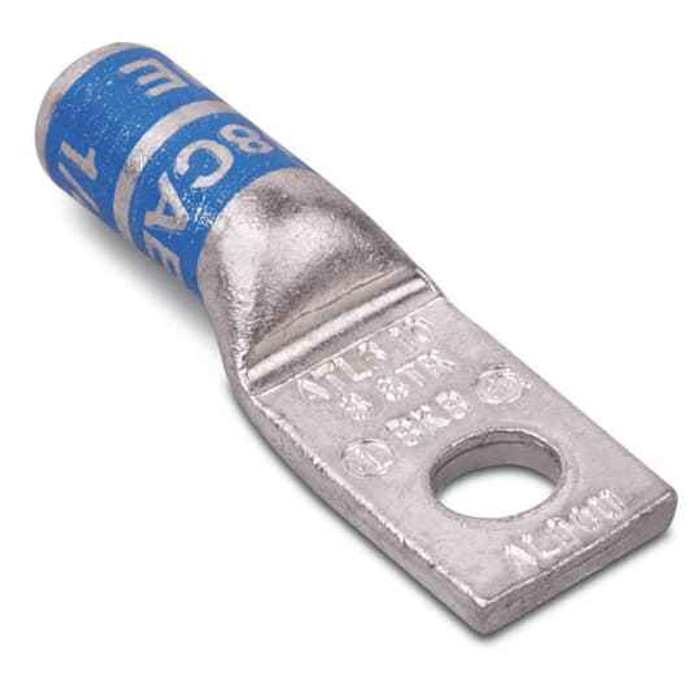

3/0 AL TP COMP LUG 1HL 3/8IN RUBY
Manufacturer Resources
Product Specs
- Cable Size:
- 3/0 AWG
- Country Of Origin:
- Mexico (MX)
- Product Group:
- Wire Termination
- Product Type:
- Aluminum One-Hole Lug
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Stud Size:
- 3/8 in
- Sub Brand Label:
- Blackburn
- Type2:
- Cable or wire lug
- Department:
- Electrical
- Product Subgroup:
- Lugs
- Product Color:
- Ruby
- Product Material:
- Aluminum
Blackburn ATL30-38 – Frequently Asked Questions
1) What wire size does the Blackburn ATL30-38 compression lug take?
The ATL30-38 is sized for 3/0 AWG conductor. It is a one-hole aluminum compression lug, so the barrel is crimped onto the cable rather than set-screwed. Run a different conductor size and you need a different lug in the series, since compression barrels are size-specific.
2) What does the ruby color on this Blackburn lug mean?
Ruby is the die color code for this barrel. When you crimp it, you select the matching ruby die in your compression tool so the crimp depth is correct for 3/0 aluminum. Using an unmatched die is the usual cause of a failed pull test on these.
3) Can I use this aluminum lug on copper conductor?
The ATL30-38 body is aluminum, which is the standard dual-rated construction for terminating either aluminum or copper 3/0 conductor. Confirm the AL9CU marking on the part or the equipment terminal rating before mixing metals on a job, and use the joint compound the crimp calls for on aluminum runs.
4) Is this a compression lug or a set-screw mechanical lug?
Compression. The ATL30-38 is crimped on with a hydraulic or battery compression tool and the matching die, so it is a one-time permanent termination. If you need a connection you can back off and re-land, a mechanical set-screw lug is the one to buy instead.
5) Are Blackburn ATL30-38 lugs sold individually or in bags?
Each. The ATL30-38 is sold as a single lug, so order one per termination and count the neutrals and grounds as well as the phases when you build your quantity.
6) What is the exact manufacturer part number and origin for this Blackburn lug?
Manufacturer part number ATL30-38 from Blackburn, country of origin Mexico. That MPN is what to quote on a submittal for a 3/0 aluminum one-hole compression lug with a 3/8 inch stud hole.
