Spec Sheet
Product Specs
- Actuator Color:
- Red
- Actuator Material:
- Plastic
- Bezel:
- Chrome
- Illumination:
- Non-illuminated
- Operating Mode:
- Latched by padlockable attachment in down position (hand)
- Series:
- 10250T
- Department:
- Electrical
- Product Type:
- 30.5 mm, Heavy-Duty
- Product Length:
- 2.4 IN
- Product Details:
- 30.5 mm, Heavy-Duty
- Mounting Method:
- Flush
- Performance Rating:
- NEMA 3, 3R, 4, 4X, 12, 13
- Product Height:
- 3.3 IN
- Product Weight:
- .25 LB
- Product Width:
- 2.1 IN
B-LINE 10250TA16 – Frequently Asked Questions
1) What size panel hole does the B-Line 10250TA16 pushbutton operator need?
The 10250TA16 is a 30.5 mm operator, so it drops into the standard 30.5 mm (1-3/16 inch) heavy-duty panel opening used across the 10250T series. It mounts flush to the enclosure face.
2) Can the 10250TA16 be padlocked out for lockout/tagout?

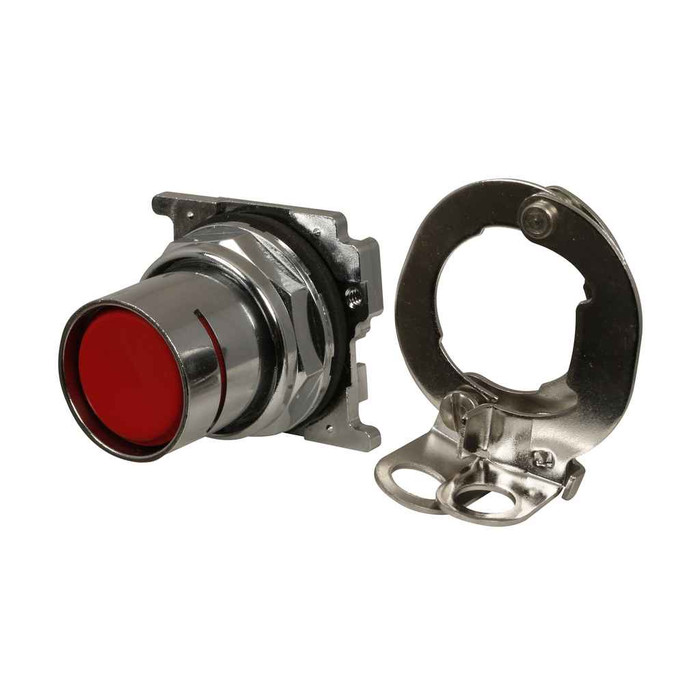

Yes. The 10250TA16 operates as a push button that latches in the down position by hand and accepts a padlockable attachment in that position, so it can be locked out while the machine is stopped. That is the reason maintenance crews pick this version over a plain momentary button.
3) Is this red pushbutton rated for a washdown or outdoor enclosure?
Yes, within limits. The 10250TA16 carries NEMA 3, 3R, 4, 4X, 12 and 13 ratings, which covers rain and sleet outdoors, hosedown and corrosion-resistant washdown, and dust or dripping-oil industrial areas. It is not rated for hazardous locations.
4) Does the 10250TA16 come with contact blocks, or do I have to order those separately?
It is an operator only. The 10250TA16 is the red plastic actuator with a chrome bezel and the padlockable latching mechanism; the contact blocks that make and break the circuit are separate 10250T series items you add behind the panel to suit your control scheme.
5) Will the 10250TA16 fit an existing 10250T station on my machine?
Yes, if the existing device is a 30.5 mm heavy-duty 10250T operator, since both use the same 30.5 mm flush panel opening and the same series contact blocks. Reuse your existing blocks and swap the operator. Confirm the old unit is 30.5 mm and not a 22 mm compact button, which uses a smaller hole.
6) Is this button lit? I need an indicating stop button.
No light in this one. The 10250TA16 is non-illuminated, so there is no lamp or LED and no transformer module behind it. If you need the button itself to indicate status, you need an illuminated 10250T operator instead.
7) Does the button spring back, or does it stay pushed in?
It stays in. Pressing it by hand latches it in the down position, and it is held there until released; a padlockable attachment can be fitted to keep it down. If you want a button that returns on release for start or jog duty, choose a momentary 10250T operator.
8) Is the red actuator metal or plastic, and does that matter in a washdown area?
The actuator is plastic with a chrome bezel. Plastic holds up well to the wet and mildly corrosive conditions implied by the NEMA 4X rating; if you want a metal button face for impact resistance, look at a metal-actuator 10250T operator instead.
