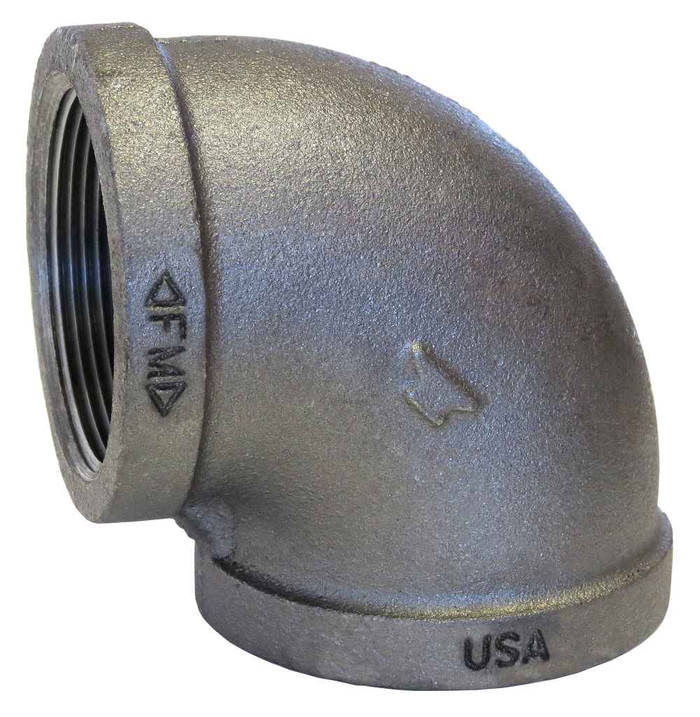

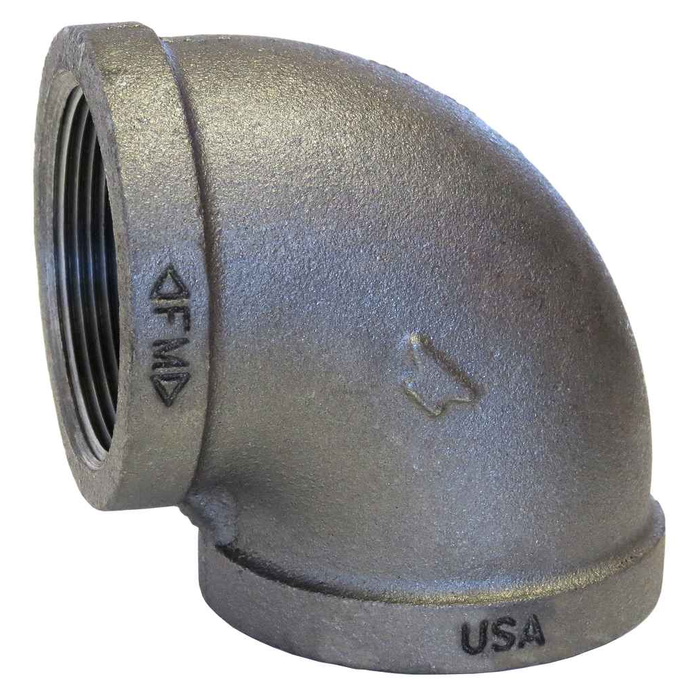

31/2 BLK MI 90 ELL
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 3.5
- Size 2:
- 3.5
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 90° Elbow
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 7.1 lbs
ASC Engineered Solutions 310002407 – Frequently Asked Questions
1) What size pipe does the ASC 3-1/2 inch black malleable iron 90 degree elbow thread onto?
Both openings are 3-1/2 inch female pipe thread, so it joins two runs of 3-1/2 inch threaded pipe at a right angle. The threads are cut to ASME B1.20.1 (NPT), which is what standard black steel and malleable iron nipples are threaded to, so it mates with ordinary 3-1/2 inch NPT male ends without an adapter.
2) Is this black malleable iron elbow approved for fire sprinkler piping?
It carries UL/FM approval, which is the listing fire protection contractors and AHJs look for on threaded fittings in sprinkler systems. Black finish and malleable iron construction are standard for wet-pipe sprinkler mains; for galvanized or dry-pipe work you would want the galvanized version of the same fitting instead.
3) Can I use a black malleable iron 90 elbow on a water line, or should it be galvanized?
Black malleable iron is intended for gas, air, steam, and closed-loop or sprinkler water service, not for open potable water, where the uncoated iron will rust and discolor. This fitting is black finish. Use galvanized malleable iron or a copper/CPVC transition for domestic water.
4) Is this a standard or extra heavy pattern elbow?
Standard (STD) pattern, dimensioned and pressure rated to ASME B16.3. If your drawing calls for a 300 lb extra heavy malleable iron pattern, this is not the fitting; Class 300 fittings have heavier bodies and different face-to-end dimensions.
5) What material spec does this fitting meet for a submittal package?
The casting is to ASTM A-197 malleable iron, with dimensions and pressure rating to ASME B16.3 and threads to ASME B1.20.1. Those three lines plus the UL/FM approval are typically all a mechanical submittal needs for a threaded black iron 90.
6) What is the exact part number to order for the ASC 3-1/2 inch black 90 elbow?
Order ASC Engineered Solutions part 310002407. It is a single configuration, 3-1/2 x 3-1/2 inch FPT, black malleable iron, standard pattern, so there is no finish or size option to specify.
7) Does this elbow come with thread sealant or a nipple?
No. It is the fitting only, two 3-1/2 inch female threaded openings. You supply the nipples or threaded pipe ends and the pipe joint compound or PTFE tape rated for the service, gas or sprinkler as applicable.
