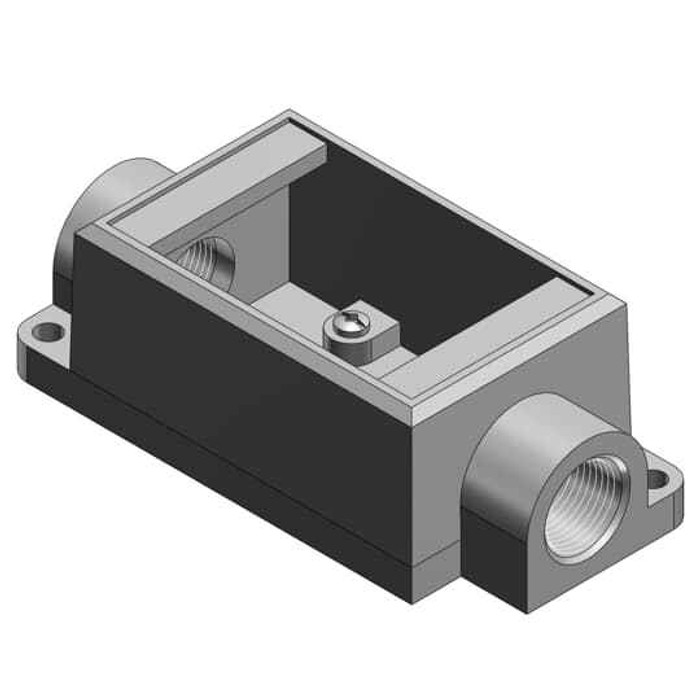

3/4 , 1G-SHALLOW BOX, IRON, THRU-FE
Manufacturer Resources
Product Specs
- Number Of Batteries:
- 0
- Product Group:
- Electrical Boxes
- Product Type:
- 1 Gang, Shallow Device Box, Thru-Feed
- Department:
- Electrical
- Product Subgroup:
- Electrical Boxes
- Product Material:
- Iron
Thomas & Betts FSC2-TB – Frequently Asked Questions
1) What is the Thomas & Betts FSC2-TB box used for?
The FSC2-TB is a one gang shallow device box in the FS/FSC cast family, built for a single wiring device (switch or receptacle) in exposed conduit work. It is a thru-feed body, so conduit enters one side and continues out the other rather than dead-ending at the box, which lets you run a device off a continuing conduit line without a separate junction.
2) Does the FSC2-TB come with a cover?
The FSC2-TB is the box body only. You order the cover separately and pick it to match the device: a single gang toggle switch cover, a duplex receptacle cover, or a blank cover if you are using it as a pull point. The gasket and cover screws come with the cover, not the box.
3) What is the difference between an FS box and an FSC thru-feed box?
An FS body has hubs on one side only, so it terminates the run. The FSC2-TB is the thru-feed version, with hubs on both ends so conduit passes straight through and continues to the next device. Use FS at the end of a run and FSC mid-run. Both take the same single gang covers.
4) Is the FSC2-TB a shallow or deep box, and does that limit what I can put in it?
Shallow. That matters for wire fill and for deep devices, GFCI receptacles and dimmers in particular can crowd a shallow FS body. If you are stacking conductors through a thru-feed body plus a device, step up to the deep version of the box instead.
5) What is the manufacturer part number for this Thomas & Betts shallow thru-feed box?
Order it as Thomas & Betts FSC2-TB. The 2 in the catalog number is the 3/4 inch hub size, and TB is the thru-feed one gang shallow body.
