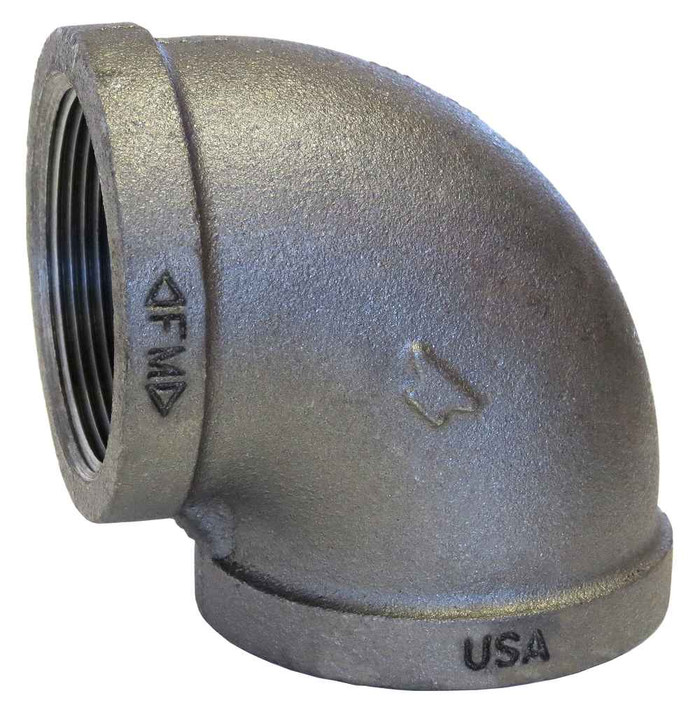

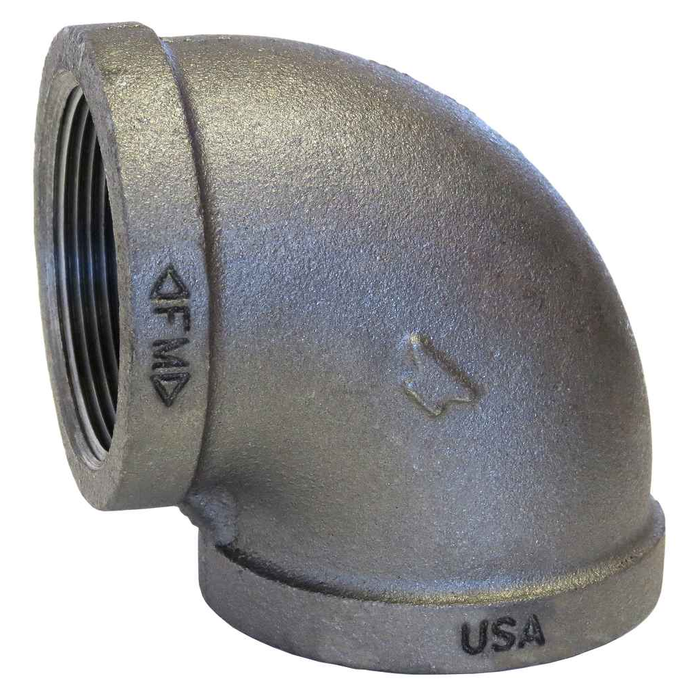

3/4 BLK MI 90 ELL
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 0.75
- Size 2:
- 0.75
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 90° Elbow
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 0.45 lbs
ASC Engineered Solutions 310001003 – Frequently Asked Questions
1) What thread does the ASC 3/4 inch black malleable iron 90 degree elbow use, and will it screw onto standard black pipe?
Both ends are 3/4 inch FPT (female pipe thread) cut to ASME B1.20.1, the standard NPT thread spec. It threads directly onto any 3/4 inch male NPT pipe nipple or threaded black steel pipe end. Use pipe dope or PTFE tape on the male threads to seal.
2) Is this a 150 lb standard elbow or an extra heavy 300 lb fitting?
It is the standard (STD) class pattern, dimensioned and pressure rated to ASME B16.3, which is the common 150 class malleable fitting. If your drawing calls for 300 class extra heavy, this is not the fitting for that spec.
3) How much does one of these 3/4 inch malleable 90s weigh for a takeoff?
0.45 lbs each. Handy if you are pricing freight or figuring hanger loads on a run with a lot of fittings.
4) What is the ASC part number for the 3/4 inch black malleable iron 90 degree elbow?
ASC Engineered Solutions part number 310001003. That is the 3/4 x 3/4 FPT black malleable 90, standard pattern.
