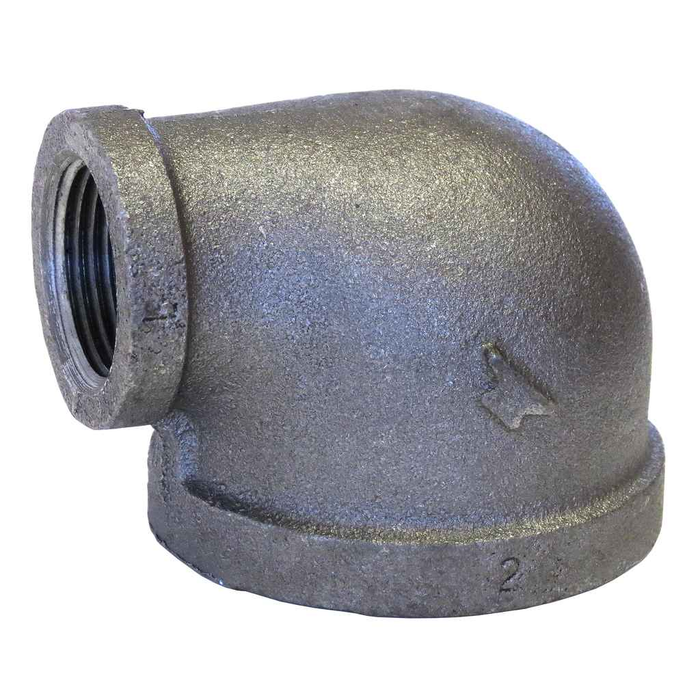

3/8X1/4 BLK MI 90 ELL
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 0.375
- Size 2:
- 0.25
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 90° Elbow
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 0.14 lbs
ASC Engineered Solutions 310007000 – Frequently Asked Questions
1) Can I use a black malleable iron 90 elbow on a gas line?
Black malleable iron fittings are the standard choice for black iron gas piping, and this one is built to the recognized specs for that service: ASTM A-197 malleable iron, ASME B16.3 for dimensions and pressure class, and NPT threads to ASME B1.20.1. It is a standard (STD) class fitting, black finish, not galvanized. Always install to the gas code in force for your jurisdiction and pressure-test the joint.
2) Will a 3/8 x 1/4 malleable iron elbow drop into the same space as the fitting I'm pulling out?
Its face-to-center dimensions follow ASME B16.3, the same standard governing other Class 150 malleable iron threaded fittings, so a like-for-like 3/8 x 1/4 reducing 90 from another manufacturer built to B16.3 occupies the same take-out. Threads are NPT per ASME B1.20.1. What you cannot swap it against is a forged steel or brass fitting of a different class, since those use different face-to-center dimensions.
3) Does this elbow need a bushing to connect 3/8 to 1/4 inch pipe?
No bushing needed. Because one outlet is already 1/4 inch FPT and the other is 3/8 inch FPT, the size change happens inside the fitting itself. That means one joint instead of two at the turn, which matters in tight equipment connections and on gas trains where every added joint is another leak path to test.
