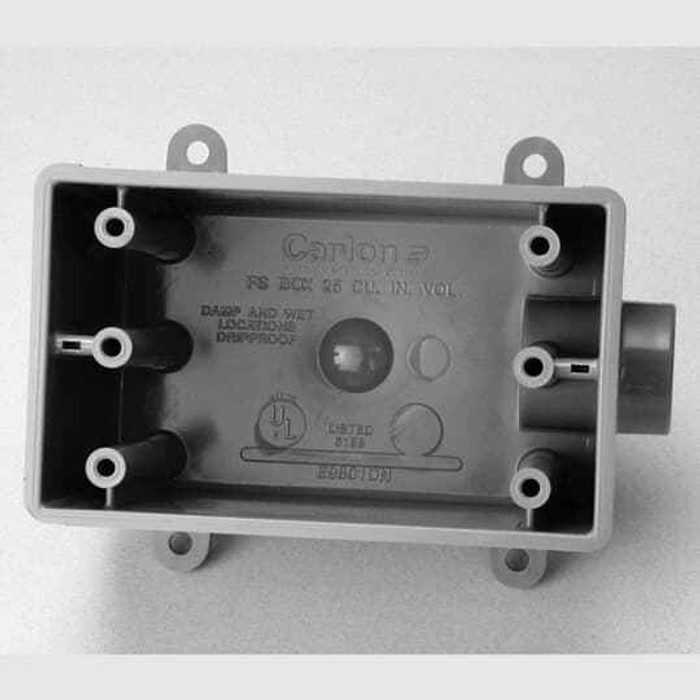

Carlon 3/4 Inch 25 Cubic Inch Non-Metallic Weatherproof Junction Box
Professional-Grade Deep Weatherproof Electrical Box
The Carlon 3/4 Inch Weatherproof Junction Box delivers professional-grade electrical box performance for dead-end terminations and outdoor applications. This non-metallic weatherproof box features 25 cubic inches of capacity designed for electrical contractors and installers, providing the reliable performance and UL Listed safety that electrical professionals demand for large devices and additional wiring capacity requirements.
Professional Features & Benefits
Superior Construction Quality
- 25 Cubic Inch Capacity - Provides ample space for large devices and additional wiring connections with professional reliability
- Deep Box Design - Accommodates oversized devices and complex wiring configurations for versatile installations
- Non-Metallic Construction - Delivers corrosion-resistant performance and lightweight handling for long-lasting electrical safety
- 1-Gang Configuration - Professional single-gang layout optimized for standard electrical device mounting and connections
Weatherproof Protection & Compliance
- UL Listed Safety - Certified under UL E11461 standards ensuring code-compliant installations and electrical contractor confidence
- Weatherproof Design - Engineered for outdoor and wet location applications with reliable moisture protection
- Standard Compatibility - Accepts all standard covers, accessories, and devices for versatile professional applications
Technical Specifications
3/4 inch hub size with 25 cubic inch internal volume, non-metallic weatherproof construction, UL Listed under E11461 standards, 1-gang deep configuration, compatible with standard electrical covers and devices, designed for dead-end termination applications requiring additional wiring capacity.
Installation Process
- Select appropriate mounting location ensuring code-compliant clearances and weatherproof positioning for reliable performance
- Secure box to mounting surface using appropriate fasteners for structural integrity and professional installation standards
- Install 3/4 inch conduit connections ensuring proper sealing and weatherproof integrity for electrical safety
- Route electrical conductors through conduit entries maintaining proper fill ratios and code compliance
- Make electrical connections within the 25 cubic inch capacity following NEC guidelines for professional results
- Install appropriate weatherproof cover and accessories ensuring complete moisture protection and code compliance
Professional Applications
Ideal for:
- Dead-End Terminations - Perfect for conduit run terminations requiring large device accommodation and additional wiring space
- Outdoor Electrical Installations - Weatherproof construction ideal for exterior lighting, receptacles, and equipment connections
- Wet Location Applications - Designed for areas exposed to moisture including patios, decks, and covered outdoor spaces
- Large Device Mounting - 25 cubic inch capacity accommodates oversized switches, receptacles, and specialty electrical devices
- Complex Wiring Configurations - Deep box design provides space for multiple wire connections and junction applications
- Commercial Exterior Systems - Professional-grade construction suitable for commercial building outdoor electrical systems
- Residential Outdoor Circuits - Reliable weatherproof protection for home exterior electrical installations and landscape lighting
- Industrial Weatherproof Applications - Non-metallic construction resists corrosion in harsh outdoor industrial environments
Non-Metallic Construction Advantage
Carlon's non-metallic weatherproof box construction provides superior corrosion resistance compared to metal alternatives, eliminating rust and deterioration concerns in outdoor applications. The lightweight yet durable material simplifies installation while maintaining structural integrity, and the non-conductive properties enhance electrical safety in wet locations where metallic boxes might pose grounding challenges.
Why Choose Carlon Quality?
Carlon demonstrates unwavering commitment to UL Listed safety standards and reliable weatherproof performance that electrical professionals trust for critical outdoor installations. Every weatherproof junction box undergoes rigorous testing to ensure code compliance and long-term reliability, while the standardized design guarantees compatibility with industry-standard covers and accessories for versatile professional applications.
Manufacturer Resources
Product Specs
- Application:
- For dead-end terminations where large devices or additional wiring capacity is required.
- Material:
- Non-Metallic
- Product Name:
- PLASTIC ELEC BOX W/O CONDUCTOR
- Product Type:
- Weatherproof Covers
- Selling Unit Of Measure:
- each
- Size:
- 3/4 Inch
- Special Functions:
- All sizes take standard covers and accessories or devices.
- Standards:
- UL E11461
- Volume:
- 25 in_
- Product Group:
- Boxes and Enclosures
- Department:
- Electrical
- Product Sub group:
- Electrical Boxes
- Product Type2:
- Electrical junction box
