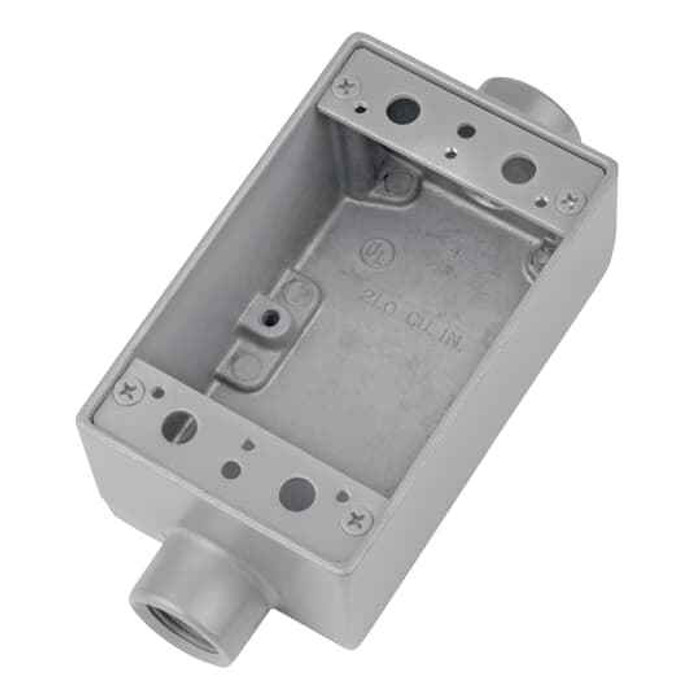

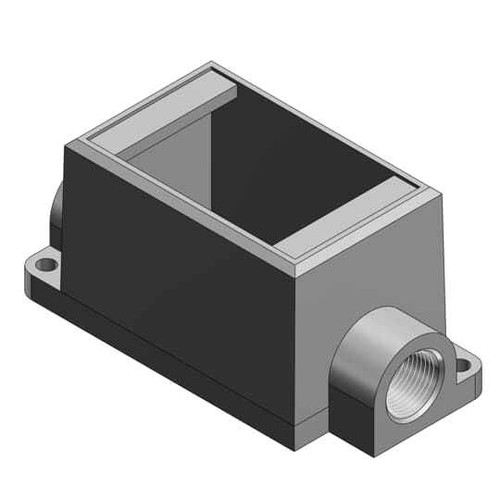

3/4 IN, 1G-FS BOX, ALUM, THRU-FEED
Manufacturer Resources
Product Specs
- Customs Tariff Number:
- 7616995190
- Number Of Batteries:
- 0
- Package Level 1 Depth Length:
- 10.25 in260 mm
- Package Level 1 Height:
- 2.88 in73 mm
- Package Level 1 Units:
- 5 piece
- Package Level 1 Width:
- 6.13 in156 mm
- Package Level 2 Depth Length:
- 14.25 in362 mm
- Package Level 2 Height:
- 11.5 in292 mm
- Package Level 2 Units:
- 25 piece
- Package Level 2 Width:
- 9 in229 mm
- Product Material:
- Aluminum Die Cast
- Product Size:
- 3/4 Inch
- Product Type:
- FS/FD Box
- Weee Category:
- Product Not in WEEE Scope
- Department:
- Electrical
- Product Group:
- Boxes & Enclosures
- Product Subgroup:
- Electrical Boxes
Thomas & Betts AFSC-2 – Frequently Asked Questions
1) Is the AFSC-2 a thru-feed box or a dead-end box?
Thru-feed. The AFSC-2 has hubs on opposite ends so conduit can enter one side and continue out the other, which is what you want mid-run. For a termination point at the end of a run you'd use a dead-end FS box instead of feeding and capping a hub.
2) Is the Thomas & Betts AFSC-2 box aluminum or steel, and can I use it outdoors?
Die cast aluminum. That's the standard choice for wet and damp locations and outdoor conduit runs because it won't rust like a painted steel box, and it's lighter to hang. Pair it with a raintight cover, which is sold separately, to keep water off the device.
3) Does the AFSC-2 FS box come with a cover?
No cover is included. The AFSC-2 is the box body only. Order the cover to match the device going in it, whether that's a blank, a switch cover, a duplex receptacle cover, or a raintight cover for outdoor use, plus the gasket if the location is wet.
4) How many devices will a 1-gang shallow FS box like the AFSC-2 hold?
One. The AFSC-2 is a single-gang device box, so it takes one switch, receptacle, or similar wiring device. It is also the shallow version, so wiring volume is tighter than a deep FS box. If you're stacking conductors or using a bulky device, step up to the deep body.
5) Is this box rated for industrial use or just residential?
The AFSC-2 is an industrial grade device box, intended to protect wiring devices, switches, and electronic components in exposed conduit installations. That's plant floors, parking structures, exterior walls, and mechanical rooms rather than concealed residential work, where a plastic or steel nail-on box is the norm.
6) What is the exact part number to order this 3/4 inch aluminum FS box?
Thomas & Betts AFSC-2. The C in the designation is the thru-feed shallow body, and the -2 is the 3/4 inch hub size. Quote that MPN directly so you don't get a dead-end or deep body by mistake.
