Thomas & Betts FS22-TB 3/4 IN,...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$325.43
$324.10

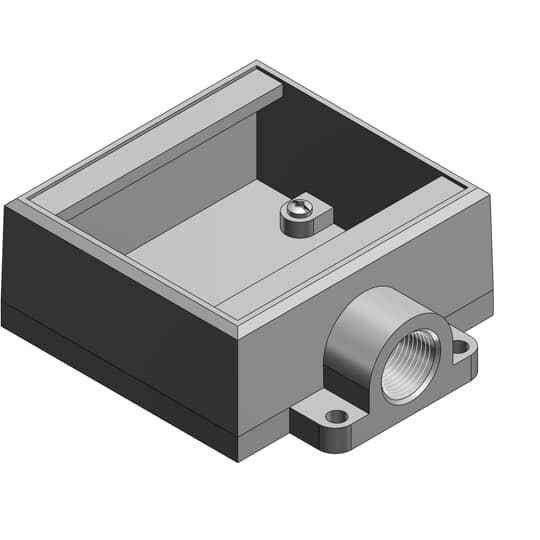

Thomas & Betts FS22-TB 3/4 IN, 2G-SHALLOW BOX, IRON, D-END

(No reviews yet) Write a Review

Model: FS22-TB
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$325.43
$324.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
3/4 IN, 2G-SHALLOW BOX, IRON, D-END

Manufacturer Resources

Product Specs

Number Of Batteries:
0
Product Group:
Electrical Boxes
Product Type:
2 Gang, Shallow Device Box, Dead End
Department:
Electrical
Product Subgroup:
Electrical Boxes
Product Material:
Iron

Thomas & Betts FS22-TB – Frequently Asked Questions

1) Will a two-gang device like a duplex receptacle and a switch fit in the FS22-TB?
Yes. It's a 2 gang device box, so it takes two devices side by side under a two-gang FS cover. Note it's the shallow depth version, so wire volume is tighter than a standard-depth FS box; if you're splicing several conductors behind the devices, step up to the deep version.
2) What does dead end mean on an FS box, and where do the conduits enter?
Dead end means the box is closed at the ends rather than having feed-through hubs, so the conduit entries are limited to one side and the run terminates at the box. Use it where the circuit stops, such as the last receptacle or switch on a run. If you need to carry conduit straight through to the next box, you want a through-feed FS configuration instead.
3) Is the FS22-TB box suitable for damp or outdoor locations?
FS boxes like the FS22-TB are cast iron with threaded hubs, the construction normally used for exposed work outdoors, in damp areas, and in industrial spaces. Weather performance depends on the cover and gasket you pair with it, so specify a gasketed weatherproof cover for any wet location.
4) Does the FS22-TB come with a cover?
No cover is included with the FS22-TB. It's the box only, so order a separate two-gang FS cover matched to the devices going in, whether that's a duplex, a toggle switch, a blank, or a weatherproof flip lid with a gasket.
5) Can I surface mount the FS22-TB on a wall or a ceiling?
Yes, FS boxes are made for surface mounting on exposed work, not for recessing into a stud bay. The cast iron body has mounting provisions on the back so it fastens flat to masonry, framing, or strut, with threaded conduit landing in the hubs.
