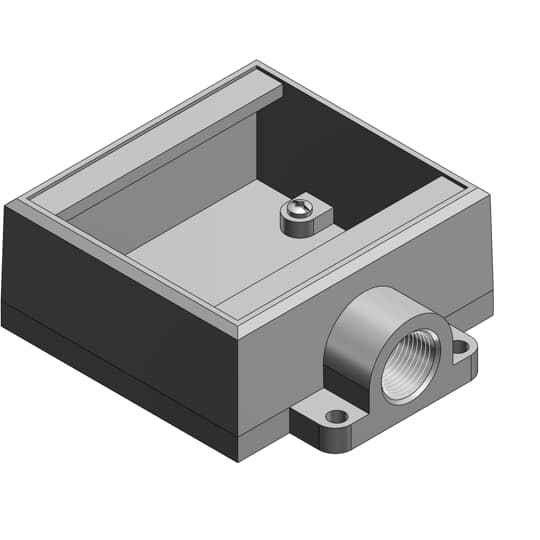

1 INCH, 2G-SHALLOW BOX, IRON, D-END
Manufacturer Resources
Product Specs
- Number Of Batteries:
- 0
- Product Group:
- Electrical Boxes
- Product Type:
- 2 Gang, Shallow Device Box, Dead End
- Department:
- Electrical
- Product Subgroup:
- Electrical Boxes
- Product Material:
- Iron
Thomas & Betts FS32-TB – Frequently Asked Questions
1) What does dead end mean on an FS box like the FS32-TB?
Dead end means the box is closed at one end, with conduit entering from one side only rather than passing straight through. Use it where the run terminates at the device. If your conduit has to continue past the box, you want a through-feed FS body instead.
2) Will a two-gang switch or receptacle assembly mount in the FS32-TB?
Yes. The FS32-TB is a two-gang device box, so it accepts a two-gang device arrangement with the matching two-gang FS cover. The cover is a separate item and is what determines whether you get duplex receptacle, toggle switch, or blank openings.
3) Is the shallow FS32-TB deep enough for my wiring?
It is a shallow-depth two-gang FS body, which is the right choice where the box sits against a wall or structure and you cannot project further out. Shallow bodies give you less wiring volume than a standard-depth FS, so for a box full of conductors, splices and a two-gang device, step up to a standard or deep FS body rather than forcing conductors into the shallow version.
4) Is the Thomas & Betts FS32-TB metal or PVC?
Cast iron. That makes it suitable for surface-mounted rigid metal conduit work where a nonmetallic box would not hold up, and the metal body carries the equipment ground path through the threaded hubs when the conduit system is used as the grounding means.
5) Can I use the FS32-TB outdoors or in a wet location?
The cast iron FS body is the standard choice for surface conduit in damp and exposed locations, but weatherproof performance depends on the cover and gasket you pair with it, not the box alone. Order a gasketed weatherproof two-gang FS cover if the box is outdoors.
6) Does the FS32-TB come with a cover?
No. The FS32-TB is the box body only. You order the two-gang FS cover separately, selecting it by device type, plus a gasket if the location calls for one.
7) What is the exact part number for the Thomas & Betts 1 inch two-gang shallow dead end FS box?
FS32-TB, from Thomas & Betts. That single number covers the 1 inch hub, two-gang, shallow, dead end cast iron configuration.
