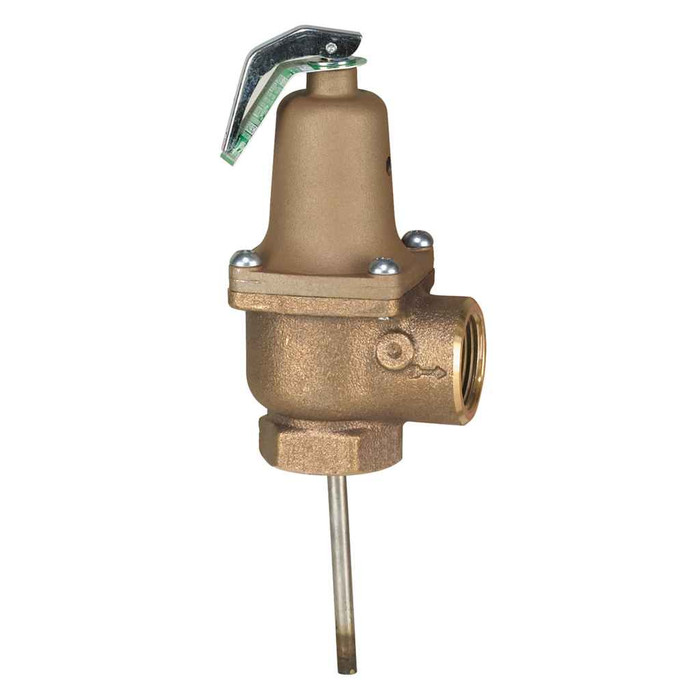

3/4 In Bronze Automatic Reseating Temp And Pressure Relief Valve, 150 psi, 210 degree F, 3 In Thermostat, Female Connections
0254702 - spec sheet
0254702 - spec sheet
Manufacturer Resources
Product Specs
- Application:
- Water Heater
- Body Material:
- Bronze
- Gpm When Relieved:
- Does Not Apply to Product
- Inlet Connection Size:
- 3/4 IN
- Inlet Connection Type:
- Female Threaded
- Inlet Thread Type:
- NPT
- Maximum Temperature:
- 210°F
- Maximum Temperature Fahrenheit:
- 210
- Maximum Working Pressure:
- 113
- Outlet Connection Size:
- 3/4 IN
- Outlet Connection Type:
- Female Threaded
- Outlet Thread Type:
- NPT
- Pressure Range:
- 75 to 150 PSI
- Pressure Relief Setting:
- 150 PSI
- Pressure Relief Setting Psi:
- 150
- Pressure Steam Discharge Capacity:
- 1,437,600 BTU per hour
- Protection Type:
- Temperature And Pressure
- Series:
- 140
- Shank Length:
- Does Not Apply To Product
- Temperature Relief:
- 210°F
- Temperature Relief Fahrenheit:
- 210
- Temperature Steam Discharge Capacity:
- 180,000 BTU per hour
- Test Lever:
- Yes
- Thermostat Material:
- Copper
- Thermostat Probe Length:
- 3 IN
- Department:
- Plumbing
- Product Group:
- Plumbing
- Product Subgroup:
- Valves
- Product Type:
- Relief Valve
