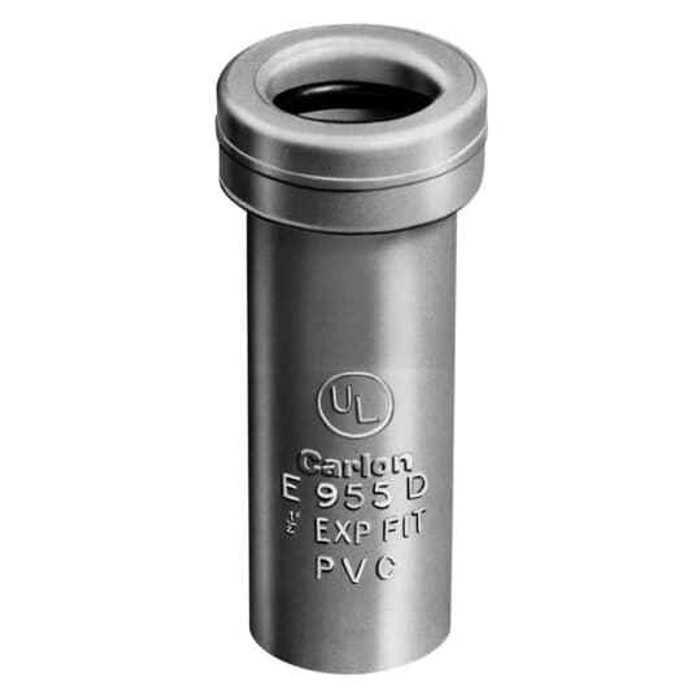

Carlon 3/4 Inch Gray PVC Schedule 40 Short Expansion Coupling
Professional-Grade Conduit Expansion Solution
The Carlon 3/4 Inch Gray PVC Schedule 40 Short Expansion Coupling delivers professional-grade conduit connection performance for rigid conduit applications requiring thermal expansion accommodation. This PVC expansion coupling features innovative expansion capability up to 2 inches maximum designed for electrical contractors and installers, providing the reliable performance and UL Listed safety that electrical professionals demand for conduit system installations.
Professional Features & Benefits
Advanced Expansion Technology
- 2 Inch Maximum Expansion Range - Accommodates thermal movement and settling in long conduit runs while maintaining secure connection integrity
- Schedule 40 Compatibility - Engineered for seamless integration with standard Schedule 40 rigid conduit systems
- Precision Bore Design - 1.07 inch inside diameter ensures optimal wire pulling capacity and smooth cable installation
- Professional Gray Finish - Industry-standard gray color provides consistent appearance in electrical installations
UL Listed Safety & Code Compliance
- UL E23018 Certification - Meets rigorous safety standards for electrical conduit coupling applications
- Code Compliant Installation - Approved for use in residential and commercial electrical systems requiring expansion joints
- Reliable Connection Security - Maintains electrical continuity and protection throughout expansion cycles
Technical Specifications
Nominal Size: 3/4 inch | Inside Diameter: 1.07 inches | Outside Diameter: 1.60 inches | Length: 3.5 inches | Material: High-grade PVC construction | Finish: Professional gray | UL Listed: E23018 | Maximum Expansion: 2 inches | Application: Rigid conduit systems | Selling Unit: Each
Installation Process
- Measure conduit run and calculate required expansion allowance for temperature variations and structural movement
- Cut rigid conduit ends square and remove burrs to ensure proper coupling engagement and wire protection
- Insert first conduit end into coupling, ensuring full engagement while allowing for expansion positioning
- Position coupling at calculated expansion point, typically at building expansion joints or long straight runs
- Insert second conduit end, setting initial gap according to temperature conditions and expected movement
- Verify secure connection and test expansion movement to confirm proper installation and functionality
Professional Applications
Ideal for:
- Commercial Building Systems - Long conduit runs in office buildings, retail spaces, and industrial facilities requiring thermal expansion accommodation
- Outdoor Electrical Installations - Exposed conduit systems subject to temperature variations and thermal cycling
- Bridge and Infrastructure Wiring - Electrical systems on structures with significant movement and expansion requirements
- Industrial Process Areas - Manufacturing facilities with temperature fluctuations requiring flexible conduit connections
- Parking Garage Electrical - Underground and covered parking electrical systems with structural movement considerations
- Hospital and Healthcare Facilities - Critical electrical systems requiring reliable expansion joint solutions
- Educational Institution Wiring - School and university electrical systems with long conduit runs and building movement
- Data Center Infrastructure - Precision electrical installations requiring controlled expansion in temperature-sensitive environments
PVC Construction Advantage
Carlon PVC expansion couplings offer superior corrosion resistance compared to metallic alternatives, eliminating rust and oxidation concerns in moisture-prone environments. The lightweight PVC construction reduces installation labor while providing excellent chemical resistance and long-term durability. The non-conductive properties enhance electrical safety by preventing stray currents and maintaining proper grounding system integrity throughout the expansion range.
Why Choose Carlon Quality?
Carlon demonstrates unwavering commitment to UL Listed safety standards and reliable performance in electrical conduit systems. Our expansion couplings undergo rigorous testing to ensure code compliance and professional-grade reliability that electrical contractors trust for critical infrastructure projects. Every Carlon expansion coupling delivers the precision engineering and quality construction that electrical professionals demand for safe, compliant, and long-lasting electrical installations.
Manufacturer Resources
Product Specs
- Application:
- For use with Rigid Conduit
- Color:
- Gray
- Inside Diameter:
- 1.07 in
- Material:
- PVC
- Nominal Size:
- 3/4 in
- Outside Diameter:
- 1.60 in
- Product Name:
- PLASTIC COUPLING
- Product Net Depth Length:
- 3.5 in
- Product Type:
- P&C Duct
- Selling Unit Of Measure:
- each
- Special Functions:
- Expand to a maximum of 2 inches
- Standards:
- UL E23018
- Product Group:
- Conduit Systems
- Department:
- Electrical
- Product Sub group:
- Conduit & Components
- Product Type2:
- Electrical conduit coupling
