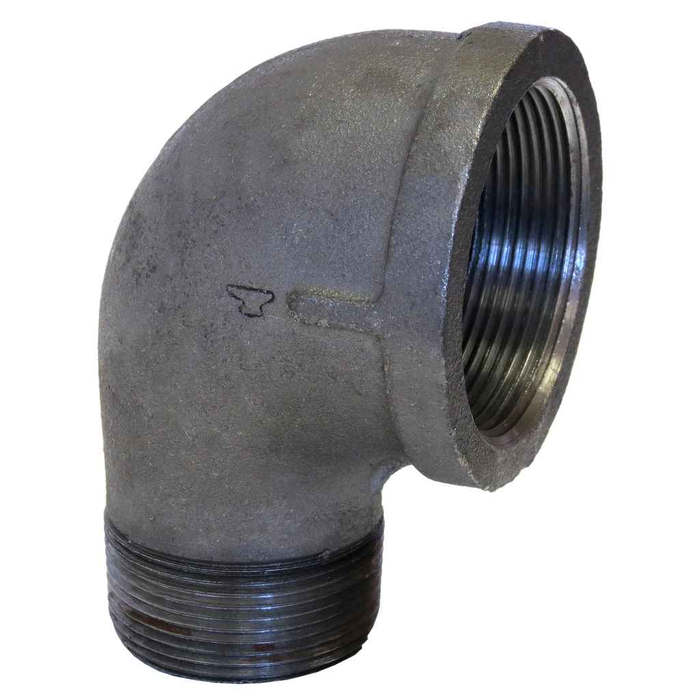

3/4X1/2 BLK MI 90 STREET ELL
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- MPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 0.75
- Size 2:
- 0.5
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Street Elbows
- Product Type:
- Street Elbow
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 0.32 lbs
ASC Engineered Solutions 310019005 – Frequently Asked Questions
1) What's the difference between a street elbow and a regular 90 elbow?
A street elbow has one female end and one male end, so it threads directly into a fitting without needing a close nipple between them. The ASC Engineered Solutions 3/4 x 1/2 black malleable iron 90 street ell has an FPT socket on one end and an MPT spigot on the other. A standard 90 elbow is female on both ends, which means you'd need a nipple to land it into a valve, tee, or another fitting. Use the street ell where you're tight on space or want to cut a joint out of the assembly.
2) Can I use this malleable iron street ell on a fire sprinkler line?
It carries a UL/FM listing, so it's acceptable where the AHJ requires UL Listed or FM Approved fittings, including sprinkler piping. Confirm the size and configuration match the sprinkler drawing before you cut it in.
3) Is this a Class 150 standard fitting or extra heavy?
It's a standard-strength (STD) malleable iron fitting built to ASME B16.3, which is the dimensional and pressure-rating standard for threaded malleable iron fittings. If your spec calls for Class 300 extra-heavy, this is not the fitting for that line.
4) Is this black fitting okay for gas piping, or do I need galvanized?
Black malleable iron with NPT threads is the usual choice for natural gas and propane piping, and galvanized is generally avoided on gas because the zinc can flake. This fitting is black finish malleable iron made to ASTM A-197 with ASME B1.20.1 threads. It's black, so it isn't for wet or exposed corrosive service where galvanized would be specified.
5) What is the part number and weight of the ASC 3/4 x 1/2 black street elbow?
The manufacturer part number is 310019005 and the fitting weighs 0.32 lbs. Handy if you're estimating hanger loads or a freight count on a bulk fitting order.
