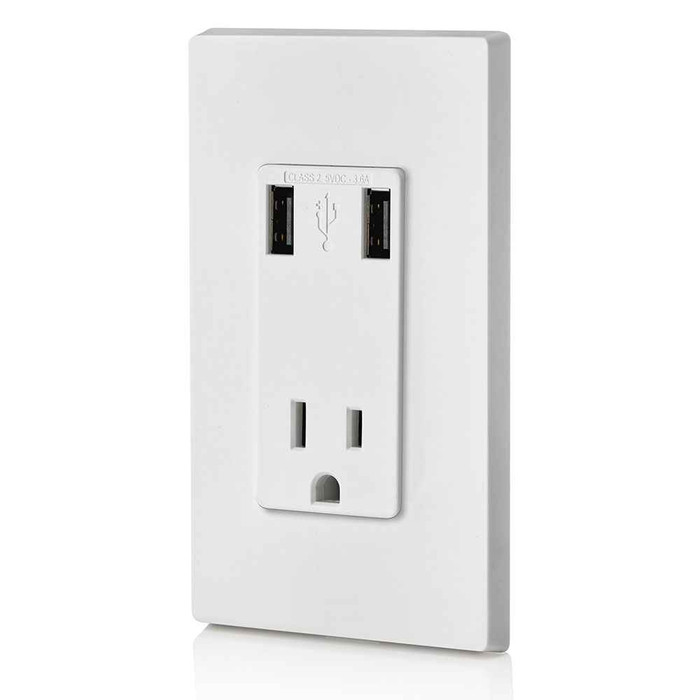

3.6A USB Type-A/Type-A Wall Outlet Charger with 15A Tamper-Resistant Receptacle, White
Features
- Strategic Placement of ports positioned vertically provides more space for maneuvering and reduces stress on USB cables
- Compact Design fits in a standard wallbox, is compatible with standard wallplates and can be multi-ganged with other standard Leviton devices
- cCSAus Listed
- Easy to install. Can replace existing outlets
- POWERFUL – Two high-powered charging ports with 3.6A of charging power
- CONVENIENT – No more searching for charging adapters! Upgrade your existing outlets so you can charge up to two USB powered electronics at once, leaving the outlet free for additional power needs
- EASY - Compact design fits in a standard wallbox and works with Decora and Decora Plus screwless wallplates.
- Smart chip designed for recognizing and optimizing the charging requirements of your device
- Back and Side Wired for easy installation
- USB Ports with a combined power of 3.6A, capable of charging multiple tablets and devices.
- Tamper-Resistant 2011 NEC® Compliant shutter mechanism blocks access to contacts from most foreign objects for improved safety with other devicesPerfect for use in residential applications such as kitchens, bedrooms and home offices and in commercial applications such as hotels, airports, restaurants and cafes, salons, office cubicles and college dorm rooms
- Compatible with USB 3.0, 2.0, 1.1 devices
- SMART - Built-in smart chip recognizes the individual device’s charging requirement to optimize the charge
Manufacturer Resources
Product Specs
- Body Material:
- Thermoplastic
- Cover Material:
- Thermoplastic
- Fcc Part 15:
- Class B
- Horsepower Rating:
- 15A-1/2 HP; 20A-1 HP
- Operating Temperature:
- -10°C to 60°C
- Product Id:
- Stamped on Strap
- Product Type:
- Outlet/USB Combo
- Strap Material:
- Steel
- Terminal Accom :
- 14-12 AWG
- Terminal Id:
- Brass-Hot Black-Hot White-Neutral Green-Gnd
- Torque Range:
- 12-14 inch pounds
- Product Group:
- Outlets
- Department:
- Electrical
- Product Subgroup:
- Switches & Receptacles
- Amperage:
- 15 A
- Ccsaus:
- Listed
- Flammability:
- Rated V-2 per UL 94
- Grade:
- Residential/Commercial Specification Grade
- Nema:
- 5-15R
- Nom:
- NOM-ANCE
- Ratings:
- 15A-125V
- Termination:
- Back & Side
- Series:
- Decora
- Product Voltage:
- 125 VAC
- Product Details:
- 2-Port Type-A Combination Receptacle
- Product Color:
- White
