Leviton USB Type-A/Type-A Charging Duplex Receptacle, 15A Tamper-Resistant

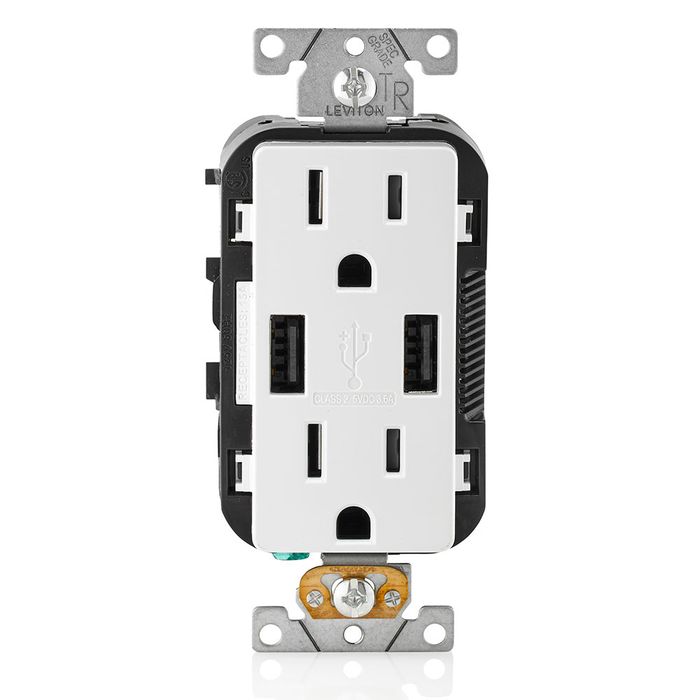

The Leviton USB Type-A/Type-A Charging Duplex Receptacle pairs a 15A-125VAC tamper-resistant duplex receptacle with two vertically positioned USB Type-A charging ports delivering up to 3.6A of combined charging power. Built to a Residential/Commercial Specification Grade standard and cCSAus Listed, this NEMA 5-15R device fits a standard wallbox for easy retrofit into existing installations. A built-in smart chip recognizes each connected device's charging requirement and optimizes the charge automatically.
Key Features
- Vertical USB Ports: Positioned vertically to provide more space for maneuvering and reduce stress on USB cables.
- Smart Charging: Built-in smart chip recognizes and optimizes the charging requirement of individual devices; compatible with USB 3.0, 2.0, and 1.1 devices, delivering 3.6A of combined charging power.
- 15A Tamper-Resistant Receptacle: Duplex receptacle rated 15A-125V, NEMA 5-15R, freeing up outlets for additional power needs.
- Durable Construction: Thermoplastic body and cover with a steel mounting strap for long-term reliability.
- Easy Installation: Compact design fits a standard wallbox, works with Decora and Decora Plus screwless wallplates, can be multi-ganged with other devices, and includes a self-grounding clip.
- Flexible Termination: Back & side termination accommodates 14-12 AWG wire, with a specified torque range of 12-14 inch pounds.
- Operating Range: Rated for use from -10°C to 40°C.
Certifications & Compliance
- cCSAus Listed
- FCC Part 15 Class B
- Flammability Rated V-0 per UL 94
Technical Specifications
- Product Subgroup: Switches & Receptacles
- Nom: 57
- list_batch: LEV-20260731
Typical Applications
- Residential Kitchens, Bedrooms, and Home Offices
- Commercial Hotels, Airports, and Restaurants
- Salons and Office Cubicles
- College Dorm Rooms
- Renovation and New Construction Electrical Upgrades
Why Leviton?
Leviton builds this USB charging receptacle to a Residential/Commercial Specification Grade standard, using a durable thermoplastic body and cover paired with a steel mounting strap. Backed by cCSAus listing and a V-0 flammability rating per UL 94, it delivers dependable, code-compliant charging and power performance for professional electrical installations across residential and commercial projects.
Manufacturer Resources
Technical Information
Product Specs
- Body Material:
- Thermoplastic
- Cover Material:
- Thermoplastic
- Fcc Part 15:
- Class B
- Horsepower Rating:
- 15A-1/2 HP
- Operating Temperature:
- -10°C to 40°C
- Product Id:
- Stamped on Strap
- Strap Material:
- Steel
- Terminal Accom:
- 14-12 AWG
- Terminal Id:
- Brass-Hot Black-Hot White-Neutral Green-Gnd
- Torque Range:
- 12-14 inch pounds
- Product Group:
- Wiring Devices
- Department:
- Electrical
- Product Subgroup:
- Receptacles & Outlets
- Amperage Rating:
- 15A
- Grade:
- Residential/Commercial Specification Grade
- Grounding:
- Self-Grounding
- Listed:
- cCSAus
- Nema:
- 5-15R
- Nom:
- 57
- Ratings:
- 15A-125V
- Termination:
- Back & Side
- Series:
- Decora
- Product Voltage:
- 125 VAC
- Product Details:
- Type A/A Duplex Receptacle
- Product Material:
- Thermoplastic
- Product Type:
- Receptacle
- Listing:
- cCSAus Listed
- Torque:
- 12-14 pound inches
- Flammability Class:
- Rated V-0 Per UL 94
- Warranty Length:
- 5 years
- Voltage Rating:
- 125V
Leviton T5632-SW – Frequently Asked Questions
1) Will this Leviton USB receptacle fit in an existing standard wall box, or do I need a deeper box?
The Leviton Type-A/Type-A USB charging duplex receptacle is built compact to fit a standard wallbox, which is what makes it a straight retrofit for an existing outlet. It also multi-gangs with other devices, so it can drop into one position of a two- or three-gang box.
2) What wire size and torque does this Leviton USB outlet take, and can I back-wire it?
Terminals accept 14-12 AWG copper and the device offers back and side termination, so you can back-wire or wrap the screws. Torque the terminal screws to 12-14 inch pounds. Terminal identification is brass for hot, black for hot, white for neutral, green for ground.
3) Is this a tamper-resistant 15A receptacle for a dorm or daycare where TR is required?
Yes, it's a tamper-resistant duplex rated 15A-125V with NEMA 5-15R faces. That covers the TR requirement for dwelling units and similar occupancies, and Leviton builds it to a Residential/Commercial Specification Grade standard.
4) How much USB charging power do the two Type-A ports actually deliver?
Both Type-A ports share 3.6A of combined charging power, not 3.6A each. A smart chip reads each connected device and sets the charge rate for it, and the ports work with USB 3.0, 2.0 and 1.1 devices. For a hotel nightstand or a cubicle that means two phones charge at once without tying up either AC outlet.
5) Is this a Type-A/Type-A device or does it have a USB-C port?
Both ports are USB Type-A, positioned vertically rather than side by side so there's more room to work a plug in and less bend stress on the cable. If your users are on USB-C devices and you want native C charging, this is the wrong configuration and you want an A/C or C/C version instead.
6) What colors does the Leviton T5832 USB receptacle come in?
Two: white (T5632-SW) and brown (T5832-B). If you're standardizing a building on one device, those are the two face colors to spec.
7) Does this Leviton USB outlet need a special wallplate?
It takes a Decora opening. Standard Decora wallplates work, and so do Decora Plus screwless plates. The plate is not part of the device, so order it separately in the gang count and color you need.
8) Do I need a separate grounding pigtail to a metal box with this receptacle?
The device is self-grounding, with a clip on the mounting strap that bonds through the mounting screw to a properly grounded metal box. The green ground terminal is still there if your inspector or job spec calls for a bonding jumper.
9) Can I install this USB charging receptacle in an unheated garage or an outdoor-adjacent space?
Its rated operating range is -10 C to 40 C (14 F to 104 F). Below or above that, it's outside the device's rating, so unconditioned space in a cold climate or a hot mechanical room is the wrong application for it.
10) What is this Leviton USB receptacle listed to, and will it pass inspection on a commercial job?
It's cCSAus Listed, covering both US and Canadian requirements, meets FCC Part 15 Class B for the charging electronics, and the thermoplastic body and cover are rated V-0 per UL 94 for flammability. Those are the three compliance marks a spec reviewer normally wants on a USB charging device.
11) Can this receptacle run a motor load like a small pump or fan?
It carries a 15A-1/2 HP horsepower rating at 125 VAC, so it will handle a cord-connected motor load up to 1/2 horsepower on a 15A branch circuit. The body and cover are thermoplastic on a steel mounting strap.
12) Where do I find the model number once the receptacle is installed?
The product ID is stamped on the mounting strap, so a maintenance tech can pull the wallplate and read it without removing the device. Useful when you're matching replacements across a portfolio of units.
