Leviton Smart Chip 4-Port USB Type-A Charging Receptacle, 4.2A-125V

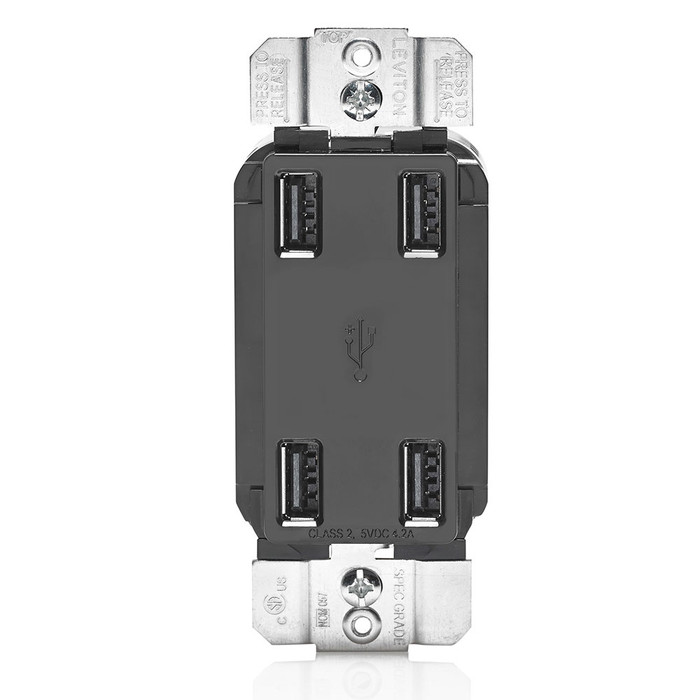

The Leviton Smart Chip 4-Port USB Type-A Charging Receptacle transforms any standard wallbox into a dedicated charging station, delivering a combined 4.2A of charging power at 125V (125 VAC) across four USB Type-A ports. Its microprocessor-driven smart chip automatically recognizes each connected device's charging requirement and optimizes the charge accordingly, making it a reliable, code-ready solution for residential and light commercial installations. The unit is cCSAus listed and compatible with USB 3.0, 2.0, and 1.1 devices, and is offered across a range of finishes to match existing wiring devices.

Key Features

  • 4-Port Charging: Four vertical USB Type-A ports are generously spaced to provide more room for maneuvering and reduce stress on USB cables, delivering a combined 4.2A of charging power.
  • Smart Charging Technology: A built-in microprocessor and smart chip recognize each device's individual charging requirement to optimize the charge, compatible with USB 3.0, 2.0, and 1.1 devices.
  • Compact, Code-Ready Design: Fits in a standard wallbox, works with Decora and Decora Plus screwless wallplates, and can be multi-ganged with other standard devices.
  • Electrical Rating: Rated 4.2A-125V (125 VAC / 4-Port Type-A Receptacle) for dependable everyday charging performance.
  • Wire Leads: Wire lead terminations allow for straightforward installation into new or existing wallboxes.
  • Charging-Only Design: No data transfer capability, keeping the device focused solely on fast, simultaneous charging of up to four USB-powered electronics, including multiple tablets.
  • Available Finishes: Offered across a range of finishes including White, Ivory, Light Almond, Gray, and Black to match existing devices and wallplates.

Certifications & Compliance

  • cCSAus Listed

Technical Specifications

  • Product Group: Outlets
  • Amperage: 4.2 A
  • list_batch: LEV-20260731
  • Product Type: USB Charging Receptacle

Typical Applications

  • Home Offices and Workstations
  • Kitchen and Bedroom Charging Stations
  • Multi-Gang Wallplate Installations
  • Residential and Light Commercial Retrofits
  • New Construction Wiring

Why Leviton?

Leviton engineers its USB charging devices with smart-chip technology and cCSAus listing to ensure safe, code-compliant performance in everyday electrical installations. The compact, wallbox-ready design and compatibility with Decora and Decora Plus wallplates make it easy for professionals and homeowners alike to add reliable, high-powered USB charging to any room without sacrificing a standard device opening. With a combined 4.2A output at 125V across four dedicated USB Type-A ports, this Leviton receptacle delivers dependable, simultaneous charging for phones, tablets, and other USB-powered electronics in both new construction and retrofit projects.

Manufacturer Resources

Technical Information

Product Specs

Product Group:
Outlets
Department:
Electrical
Product Subgroup:
USB & Power Charging
Amperage Rating:
4.2 A
Ratings:
4.2A-125V
Series:
Decora
Product Voltage:
125 VAC
Product Details:
4-Port Type-A Receptacle
Product Type:
USB Charging Receptacle
Listing:
cCSAus Listed
Connection Type:
Wire Leads
Country of Origin:
China

Leviton USB4P-E – Frequently Asked Questions

1) Does the Leviton USB4P 4-port USB charger also have AC outlets, or is it USB only?
USB only. The USB4P is a four-port USB Type-A charging receptacle, so the whole device opening is given over to charging and there are no tamper-resistant AC receptacles on it. If you need a duplex outlet at the same location, gang it beside a standard device or plan a second wallbox.
2) How is the Leviton USB4P wired in, screw terminals or pigtails?
Wire leads. The USB4P terminates with pigtail leads rather than side screws or back-wire clamps, so you splice to the branch circuit with wire nuts inside the box. Make sure the box has the volume for the leads plus splices, since the device body on a USB charger takes up more depth than a plain receptacle.
3) Will 4.2A across four USB-A ports actually charge two tablets at once?
Yes, the USB4P is rated 4.2A combined at 125V and Leviton calls out simultaneous charging of up to four USB devices including multiple tablets. Bear in mind 4.2A is the total shared across the four ports, not per port, so four heavy loads at once will each draw less than a tablet plugged in alone.
4) Does the Leviton USB4P fit a standard single-gang box and take a normal Decora plate?
It fits a standard wallbox and uses Decora or Decora Plus screwless wallplates, the same opening as any other Decora-style device. It can also be multi-ganged with standard switches and receptacles, so it drops into an existing two- or three-gang plate without a special cover.
5) Can I use this USB charger to sync or transfer data to a laptop?
No. The USB4P is a charging-only device with no data transfer capability. If a tenant or employee needs a data connection at the wall, this is the wrong part.
6) What colors does the Leviton USB4P come in, and what are the part numbers?
Five: White (USB4P-W), Ivory (USB4P-I), Light Almond (USB4P-T), Gray (USB4P-GY) and Black (USB4P-E). If you are standardizing a building, order the suffix that matches the devices already on the walls, and note the Black suffix is E rather than BK.
7) Is the Leviton 4-port USB receptacle approved for commercial jobs in the US and Canada?
The USB4P carries a cCSAus listing, which covers both US and Canadian requirements on one mark. Leviton positions it for residential and light commercial work, and it runs on standard 125 VAC branch circuits.
8) Do I need USB-C at the wall, or is this Type-A unit enough?
All four ports on the USB4P are Type-A, the older rectangular connector. That is fine where users bring their own A-to-C or A-to-Lightning cables, and it is the better pick if you want four devices charging off one opening. If your users need to plug a USB-C cable straight into the wall, or need higher wattage for a laptop, specify a Type-C or A/C combination device instead.
9) Will this Leviton charger work with an older phone that uses USB 2.0?
Yes. The four Type-A ports work with USB 3.0, 2.0 and 1.1 devices, and the built-in smart chip reads what each connected device asks for and adjusts the charge to suit. Mixed fleets of older and newer phones on the same wall device are fine.
