3/8-Inch Keystone Tip Screwdriver, Cushion-Grip™, 8-Inch
602-8 - spec sheet

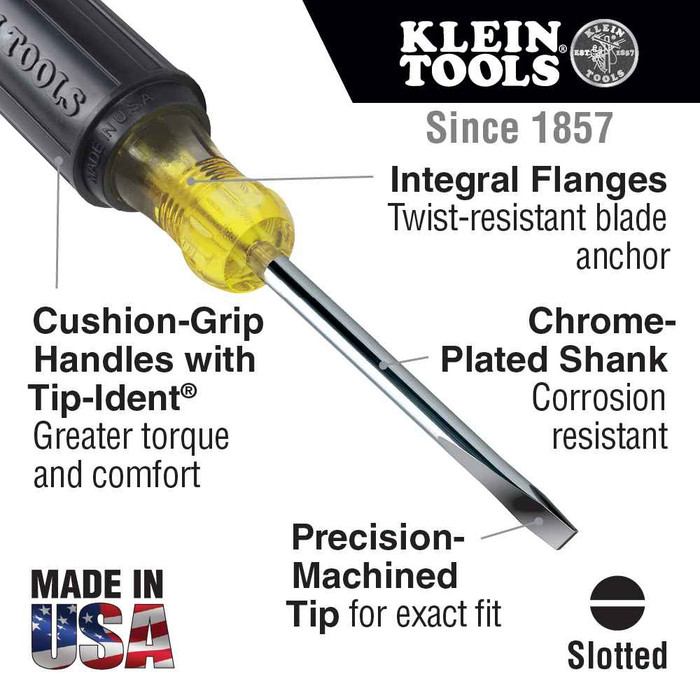

Features
- Made in USA
- Special heat-treated shafts
- Internal flanges inside handle provide solid, twist-resistant blade anchor
- Meets or exceeds applicable ASME / ANSI specifications
- Cushion-Grip™ handle for greater torque and comfort and premium chrome-plated for smooth feel and corrosion resistance
- Precision-machined tip for exact fit
- Hex bolster reinforces shank for hard use and allows wrench assisted turning
- Built to handle the tough jobs with ease
- Tip-Ident® quickly identifies the screwdriver type and tip orientation
Warnings
- NOT insulated. Will NOT protect against electrical shock.
- Do NOT use to pry or chisel.
- Always wear approved eye protection.
602-8 - spec sheet
Manufacturer Resources
Spec Sheet
Product Specs
- Handle Color:
- Black
- Handle Material:
- Rubber
- Insulated:
- No
- Item Depth:
- 13.4380 in
- Item Height:
- 1.3500 in
- Item Weight:
- 0.5500 lbs
- Item Width:
- 2.4300 in
- Magnetic:
- No
- Overall Length:
- 13.438" (34.1 cm)
- Shank Length:
- 8" (20.3 cm)
- Shank Type:
- Round
- Tip Size:
- 3/8" (9.5 mm)
- Tip Type:
- Keystone
- Department:
- Electrical
- Product Group:
- Hand Tools
- Product Subgroup:
- Screwdrivers & Drivers
- Product Material:
- Steel
- Product Weight:
- 8.8 oz (249 g)
- Product Type:
- Screwdriver
- Product Height:
- 1.35 in
- Country Of Origin:
- United States
- Product Width:
- 2.43 in
- Product Depth:
- 13.438 in
Klein Tools 602-8 – Frequently Asked Questions
1) Is the Klein Tools 602-8 screwdriver safe to use on live electrical circuits?
No. The 602-8 is not insulated and will not protect against electrical shock, so keep it off energized work. If you are working live, you need a rated insulated screwdriver instead. The description also warns against prying or chiseling with it, and to wear approved eye protection.
2) What does the 8-inch in the Klein 602-8 refer to, the whole tool or just the blade?
The 8 inches is the shank, not the overall tool. The 602-8 has an 8 inch (20.3 cm) round shank and measures 13.438 inches (34.1 cm) overall with the Cushion-Grip handle. Useful reach into a panel or deep box is the 8 inch shank figure.
3) What size slotted screws does a 3/8-inch keystone tip driver fit?
The 602-8 has a 3/8 inch (9.5 mm) keystone tip, a large slotted size suited to heavy terminal screws, lug screws, panel and machine screws with a wide slot. Keystone means the tip flares out to the full blade width rather than being ground down like a cabinet tip, so it carries more torque but will not drop into a counterbored or recessed slot the way a cabinet tip does.
4) Can I put a wrench on the Klein 602-8 for extra torque on a stuck screw?
Yes. The 602-8 has a hex bolster at the base of the shank that reinforces the shank and lets you turn it with a wrench. The Cushion-Grip handle also has internal flanges anchoring the blade to resist twisting under that load.
5) Will the Klein 602-8 screwdriver hold a screw magnetically?
No, the 602-8 tip is not magnetized. For overhead or blind work where you need the screw to stay put, pick a magnetic-tip driver or use a screw-holding driver instead.
6) What is the Klein 602-8 made of and will it hold up in a damp or outdoor service truck?
Steel shank, heat treated, with a premium chrome-plated finish for corrosion resistance and a smooth feel. The handle is black rubber Cushion-Grip. It is made in the USA and meets or exceeds applicable ASME/ANSI specifications.
7) How do I tell the 602-8 apart from the other Klein drivers in my pouch without pulling it out?
Klein puts Tip-Ident on the end of the handle, so the cap shows the screwdriver type and which way the tip is oriented. On the 602-8 that tells you at a glance it is a 3/8 inch keystone slotted blade before you pull it from the pouch.
8) How heavy is the Klein 602-8 for daily tool-pouch carry?
The 602-8 weighs 8.8 oz (249 g). That is the heft you would expect from a full-size 8 inch shank driver with a hex bolster, and it is what gives it the torque, so it is a pouch tool rather than a pocket tool.
