3M 77B Scotch Fire-Retardant E...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$288.57

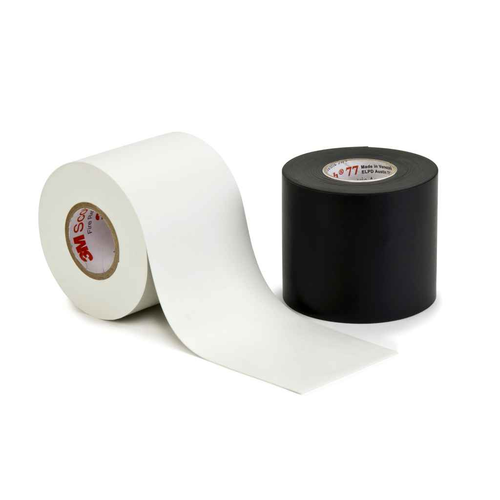

3M 77B Scotch Fire-Retardant Electric Arc Proofing Tape 77

3M 77B Scotch Fire-Retardant Electric Arc Proofing Tape 77

(No reviews yet) Write a Review

Model: 77B-1.5X20FT

In Stock (leaves warehouse same day if ordered before 3pm ET)

$288.57
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Scotch Fire-Retardant Electric Arc Proofing Tape 77, 1-1/2 in x 20 ft,Black, 1 roll/carton, 10 rolls/Case

  • Features

    • For protecting most types of electrical cables when exposed to potential failures in an adjacent cable
    • Intumescent elastomer backing
    • UL Listed and RoHS 2011/65/EU Compliant
    • Conformability offers virtually wrinkle-free wrapping with minimal effort

Product Specs

Color Family Incorporate Product Color:
Black
Elongation:
150%
Adhesive Material:
Non-adhesive
Shelf Life:
5 Year
Department:
Electrical
Flame Resistant:
Yes
Vulcanizing:
No
Minimum Operating Temperature Celsius:
0 Degree Celsius
Manufacturing Origin:
USA
Tape Grade:
Premium
Overall Length Metric:
6 m
Overall Length Imperial:
20 ft
Self Extinguishing:
Yes
Flame Retardant:
Yes
Breaking Strength Imperial:
36 lb/in
Total Thickness:
0.76 mm
Tape Type:
Insulating and Splicing
Tape Color:
Black
Backing Material:
Intumescent Elastomer
Product Material:
Intumescent Elastomer
Total Tape Thickness Without Liner Metric:
0.76 mm
Uv Resistant:
Yes
Liner Linerless:
Linerless
Product Type:
Arc Proofing Tape
Product Group:
Cable Management & Identification
Product Subgroup:
Electrical Tape

3M 77B-1.5X20FT – Frequently Asked Questions

1) Is 3M Scotch 77 arc proofing tape adhesive, and how do I secure the wrap?
Scotch 77 is a non-adhesive, linerless tape, so it will not stick to itself or to the cable jacket. You wrap it on and then band or overwrap the ends to hold it in place. The upside of non-adhesive is no residue on the cable and no liner to strip while you work.
2) What does the 77 arc proofing tape actually do in a cable fault?
The backing is an intumescent elastomer: under the heat of an arcing fault it expands into a char layer that shields the cable underneath. It is used to protect most types of electrical cable from failures in an adjacent cable, in a manhole, vault, or cable tray run. It is flame retardant and self-extinguishing.
3) Is 3M 77 arc proofing tape UL Listed?
Yes, Scotch 77 is UL Listed and RoHS 2011/65/EU compliant. It is also made in the USA, which matters on jobs with domestic sourcing requirements.
4) Can I use this arc proofing tape outdoors or in a wet vault?
The tape is UV resistant, so exposed outdoor runs are within its range. Watch the temperature: minimum operating temperature is 0 degrees Celsius (32 F), so wrapping in freezing conditions is outside the rated range.
5) How much cable does one roll of 3M 77 cover, and how is it packed?
Each roll is 20 feet (6 m) long, packed one roll per carton and 10 rolls per case. Since arc proofing is normally applied in a half-lapped wrap, plan on roughly half that in finished cable length per roll, and buy by the case for a vault or tray project.
6) How long can I keep unused rolls of this tape on the shelf?
Shelf life is 5 years, so MRO and utility storerooms can stock it against future outage work without churning inventory. Store the black rolls out of direct heat.
