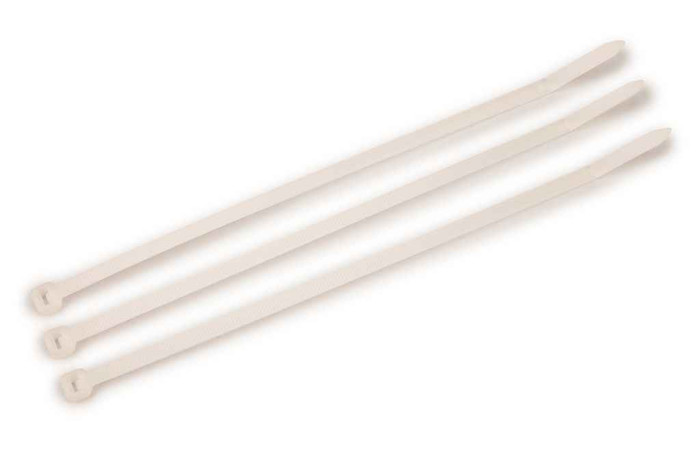

3M Cable Tie 8 in Standard Nylon 6/6 50 lbs Tensile Strength Plenum Rated

3M Cable Tie 8 in Standard Nylon 6/6 50 lbs Tensile Strength Plenum Rated

Professional Cable Management with UL Listed Plenum Rating

The 3M Cable Tie delivers reliable wire bundling and harness component management with professional-grade specifications. This 8 in standard cable tie features Nylon 6/6 construction with 50 lbs tensile strength and UL Listed 62275 Type 21 or 21S plenum rating for air handling spaces. Made in the USA with a curved tip design for faster threading and installation, this beige cable tie operates reliably from -40�F to 185�F while securing bundles from 0.0625 in to 1.87 in diameter without slipping.

Professional Features & Benefits

• 50 lbs Tensile Strength: Provides secure hold for demanding applications with reliable bundle retention under stress.
• UL Listed Plenum Rated: Certified for use in air handling spaces with UL 62275 Type 21 or 21S and AH-2 ratings for code compliance.
• Nylon 6/6 Construction: Delivers durability and chemical resistance with UL 94 V-2 flammability rating for professional installations.
• Wide Temperature Range: Operates reliably from -40�F to 185�F for versatile indoor and controlled environment applications.
• Curved Tip Design: Enables faster threading and installation while reducing installation time and effort.
• Made in USA: Ensures consistent quality and manufacturing standards for professional applications.
• Versatile Bundle Range: Accommodates bundle diameters from 0.0625 in to 1.87 in for flexible cable management solutions.

Technical Specifications

• Cable Length Imperial: 8 in
• Cable Length Metric: 193.04 mm
• Cable Tie Base Height: 8 in
• Cable Tie Length: 371 mm
• Cable Tie Type: Standard
• Color Family Incorporate Product Color: Beige
• Flammability Rating: UL 94 V-2
• Manufacturer Catalog Number: 7000133460
• Manufacturing Origin: USA
• Maximum Bundle Diameter: 1.87 Inch
• Maximum Bundle Diameter Metric: 102 mm
• Maximum Insulation Outer Diameter Metric: 3.7 mm
• Maximum Insulation Outside Diameter: 0.145 in
• Maximum Operating Temperature: 85 Degree Celsius
• Maximum Operating Temperature Celsius: 85 Degree Celsius
• Maximum Operating Temperature Fahrenheit: 185 Degree Fahrenheit
• Minimum Bundle Diameter: 0.0625 Inch
• Minimum Bundle Diameter Metric: 1.6 mm
• Minimum Installation Temperature Celsius: -20 Degree Celsius
• Minimum Installation Temperature Fahrenheit: -4 Degree Fahrenheit
• Minimum Operating Temperature Celsius: -40 Degree Celsius
• Minimum Operating Temperature Fahrenheit: -40 Degree Fahrenheit
• Operating Temperature Celsius: 85 Degree Celsius
• Operating Temperature Fahrenheit: 185 Degree Fahrenheit
• Operating Temperature Range Celsius: -40 �C to 85 �C
• Operating Temperature Range Fahrenheit: -40 �F to 185 �F
• Overall Length Imperial: 7.6 in
• Overall Length Metric: 193 mm
• Overall Width Imperial: 0.18 in
• Overall Width Metric: 4.6 mm
• Package Height: 0.50000 in
• Package Length: 12.00000 in
• Package Weight: 2.9780 LBS
• Plenum Rated: Yes
• Product Material: Nylon 6/6
• Product Type: Standard
• Tensile Strength Imperial: 50 lbs
• Tensile Strength Metric: 22.68 kg
• Uv Resistant: No

Installation & Operation

1. Select appropriate cable tie length based on bundle diameter requirements and allow for proper closure clearance.
2. Thread the curved tip through the head opening and around the cable bundle or harness components.
3. Pull the tail through the head until the desired tightness is achieved without over-tensioning.
4. Ensure the tie is properly seated and the bundle is secure without damaging cable insulation.
5. Trim excess tail length if required, leaving appropriate clearance for safety and accessibility.
6. Verify installation meets applicable codes and standards for plenum-rated applications when used in air handling spaces.

Professional Applications

• HVAC System Cable Management
• Plenum Space Wire Bundling
• Commercial Building Installations
• Data Center Cable Organization
• Industrial Control Panel Wiring
• Telecommunications Infrastructure
• Professional Audio/Video Systems

Why Choose 3M Quality?

3M cable ties deliver proven reliability with UL Listed plenum rating and Made in USA manufacturing standards. The Nylon 6/6 construction with UL 94 V-2 flammability rating ensures code compliance and long-term performance in professional installations. With 50 lbs tensile strength and wide temperature range capability, these cable ties provide the durability and performance professionals demand for critical cable management applications.
