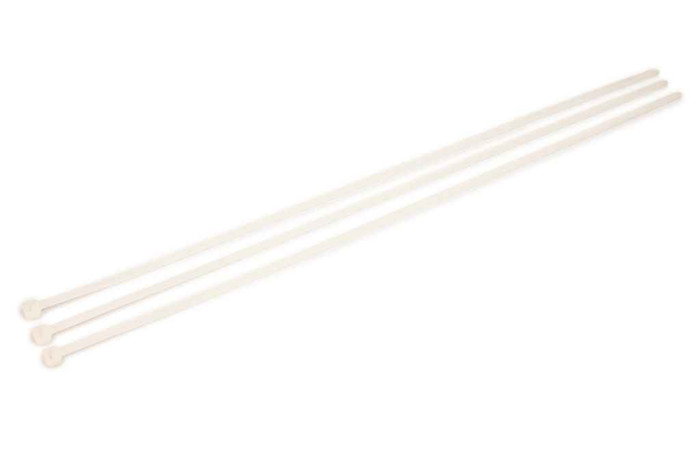

3M Cable Tie 15 in 120 lbs Tensile Strength Plenum Rated Nylon 6/6

3M Cable Tie 15 in 120 lbs Tensile Strength Plenum Rated Nylon 6/6

Professional cable management with curved tip design for faster installation

The 3M Cable Tie delivers reliable wire bundle and harness component securing with its curved tip design that allows for faster threading and installation. This 15 in cable tie features 120 lbs tensile strength and is constructed from durable Nylon 6/6 material. UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces, this professional-grade cable tie is made in the USA and provides secure bundling without slipping.

Professional Features & Benefits

• 120 lbs Tensile Strength: Provides reliable holding power for demanding wire management applications and heavy cable bundles.
• 15 in Length: Accommodates bundle diameters from 0.1875 in to 4 in for versatile cable management solutions.
• Plenum Rated AH-2: Approved for use in air handling spaces, meeting strict fire safety requirements for HVAC applications.
• Nylon 6/6 Construction: Delivers exceptional durability and chemical resistance for long-lasting performance in professional installations.
• Curved Tip Design: Enables faster threading and installation, reducing labor time and improving installation efficiency.
• UL Listed 62275 Type 21/21S: Meets rigorous safety standards for professional electrical and telecommunications applications.
• Wide Temperature Range: Operates reliably from -40�F to 185�F, suitable for diverse environmental conditions.

Technical Specifications

• Cable Length Imperial: 15 in
• Cable Length Metric: 381 mm
• Color Family Incorporate Product Color: Beige
• Flammability Rating: UL 94 V-2
• Manufacturer Catalog Number: 7100038009
• Manufacturing Origin: USA
• Maximum Bundle Diameter: 4 Inch
• Maximum Bundle Diameter Metric: 102 mm
• Maximum Operating Temperature: 85 Degree Celsius
• Maximum Operating Temperature Celsius: 85 Degree Celsius
• Maximum Operating Temperature Fahrenheit: 185 Degree Fahrenheit
• Minimum Bundle Diameter: 0.1875 Inch
• Minimum Bundle Diameter Metric: 4.8 mm
• Minimum Installation Temperature Celsius: -20 Degree Celsius
• Minimum Installation Temperature Fahrenheit: -4 Degree Fahrenheit
• Minimum Operating Temperature Celsius: -40 Degree Celsius
• Minimum Operating Temperature Fahrenheit: -40 Degree Fahrenheit
• Operating Temperature Celsius: 85 Degree Celsius
• Operating Temperature Fahrenheit: 185 Degree Fahrenheit
• Operating Temperature Range Celsius: -40 �C to 85 �C
• Operating Temperature Range Fahrenheit: -40 �F to 185 �F
• Overall Length Imperial: 15 in
• Overall Length Metric: 381 mm
• Overall Width Imperial: 0.298 in
• Overall Width Metric: 7.6 mm
• Package Height: 0.50000 in
• Package Length: 19.00000 in
• Package Weight: 1.1600 LBS
• Plenum Rated: Yes
• Product Material: Nylon 6/6
• Product Type: Cabel Ties
• Tensile Strength Imperial: 120 lbs
• Tensile Strength Metric: 54.43 kg
• Uv Resistant: No

Installation & Operation

1. Select appropriate cable tie length based on bundle diameter requirements and allow for proper tensioning.
2. Thread the curved tip through the head of the cable tie, taking advantage of the faster threading design.
3. Position the cable tie around the wire bundle or harness components to be secured.
4. Pull the tail through the head until the desired tension is achieved, ensuring secure bundling without over-tightening.
5. Trim excess tail length as needed, leaving sufficient material for future adjustments if required.
6. Verify secure installation and proper bundle organization before completing the cable management system.

Professional Applications

• Telecommunications and data center cable management
• HVAC system wire bundling in air handling spaces
• Electrical panel and control cabinet organization
• Industrial equipment wire harness securing
• Commercial building infrastructure management
• Plenum space cable routing and organization
• Professional audio/video installation projects

Why Choose 3M Quality?

3M Cable Ties are manufactured in the USA with rigorous quality control standards, ensuring consistent performance and reliability. The UL Listed 62275 Type 21/21S certification and Plenum Rating AH-2 demonstrate compliance with strict safety requirements for professional installations. With UL 94 V-2 flammability rating and Nylon 6/6 construction, these cable ties deliver the durability and safety performance that professionals demand for critical cable management applications.
