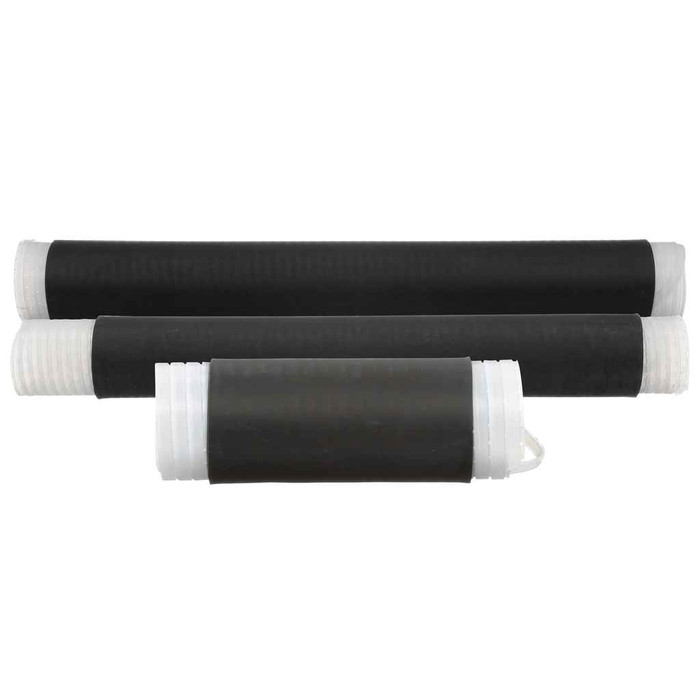

3M 7000031605 3M™ Cold Shrink Insulator 8425-8, 2-1/0 AWG (35-50 mm²), 10/case

3M 7000031605 3M™ Cold Shrink Insulator 8425-8, 2-1/0 AWG (35-50 mm²), 10/case

(No reviews yet) Write a Review

Model: 7000031605
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$95.09
$49.72
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3M™ Cold Shrink Insulator 8425-8, 2-1/0 AWG (35-50 mm²), 10/case

  • Features

    • Simple installation which requires no tools
    • Made of EPDM rubber which contains no chlorides or sulfur
    • Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
    • Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts
    • Withstands temperatures of -40 to 90 degC (-40 to 194 degF)
    • Covers a wide range of cable cross sections


7000031605 - spec sheet

Manufacturer Resources

Product Specs

Application:
Insulation, mechanical protection, repair
Cable Shielding:
Non-shielded
Conductor Material:
Aluminum
Country Of Origin:
United States
Etim Class 7 0:
EC000217
Etim Class 8 0:
EC000217
Halogen Free:
No
Inner Diameter After Shrink Imperial :
0.24 in
Inner Diameter After Shrink Metric :
6.1 mm
Inner Diameter Before Shrink Imperial :
0.941 in
Inner Diameter Before Shrink Metric :
23.9 mm
Manufacturing Origin:
USA
Maximum Conductor Size Imperial :
19.93 kcmil
Maximum Conductor Size Metric :
10.1 mm²
Maximum Connector Length:
3.0 in
Maximum Connector Length Metric :
76.2 mm
Maximum Operating Temperature Celsius :
90.0 Degree
Maximum Operating Temperature Fahrenheit :
194.0 Degree
Minimum Conductor Size Imperial :
2 AWG
Minimum Conductor Size Metric :
35 mm²
Minimum Operating Temperature Celsius :
-40.0 Degree
Minimum Operating Temperature Fahrenheit :
-40.0 Degree
Number Of Conductors:
1
Operating Temperature Celsius :
-40 up to +90°C
Overall Diameter Metric :
23.9 mm
Overall Length Imperial :
8.0 in
Overall Length Metric :
203.2 mm
Product Color:
Black
Product Material:
EPDM Rubber
Product Model:
Cold-shrink
Product Type:
Cold Shrink
Product Voltage:
1 kV
Rds Url Regulatory Data Sheet :
https://cdmsweb.3m.com/ingredientcommunication/file/Media/oNmlOJecv64
Relaxed Tube Length:
8.0 in
Relaxed Tube Length Metric :
203.2 mm
Rohs Eu Comments:
RoHS 2011/65/EU compliant without exemption
Shrink Ratio:
2:01
Splice Type:
Cold Shrink
Ul Approval:
No
Voltage Application:
Low Voltage
Wall Thickness After Shrinking:
3.8 mm
With Inner Glue:
No
Department:
Electrical

3M 7000031605 – Frequently Asked Questions

1) What voltage is the 3M 8425-8 cold shrink tube rated for?
It is a low voltage product rated to 1 kV (1000 volts). Use it for primary insulation on solid dielectric insulated wire and for splices at or below that level. It is not a medium voltage splice or termination product, and it is specified for non-shielded cable, so do not put it on shielded MV cable.
2) Do I need a torch or heat gun to install the 8425-8?
No heat at all. Cold shrink means the EPDM tube is factory-expanded on a removable core; you slide it into position and pull the core out, and the rubber recovers onto the cable by itself. No tools, no flame, which is why crews use it in energized-adjacent or confined spaces where an open flame is a problem.
3) Is the 3M 8425-8 cold shrink insulator UL listed or halogen free?
Two points for a spec review: the 8425-8 does not carry a UL approval, and it is not halogen free. It is RoHS 2011/65/EU compliant without exemption and made in the United States. If your job spec calls for a UL listed or halogen-free insulator, this is not the part.
4) Can the 3M 8425-8 cold shrink insulator be used outdoors or in a cold climate?
Its service range is -40 to 90 degC (-40 to 194 degF), so winter exposure and hot conduit runs are both inside spec. The EPDM rubber contains no chlorides or sulfur, which is what keeps it from attacking the conductor over time.
5) What jobs is the 8425-8 cold shrink tube actually used for besides splices?
Three common ones beyond insulating a splice: sealing terminal lug barrels, sealing conduit couplings, and sealing conduit-to-cable breakouts. The catalog application is insulation, mechanical protection and repair, so it also works as a jacket repair over damaged cable within its diameter range.
6) How thick is the wall on the 8425-8 once it recovers, and does it seal without mastic?
Wall thickness after shrinking is 3.8 mm. There is no inner glue or adhesive lining; the seal comes from the EPDM's own elastic pressure against the cable, so surfaces need to be clean and free of sharp edges for a tight grip.
