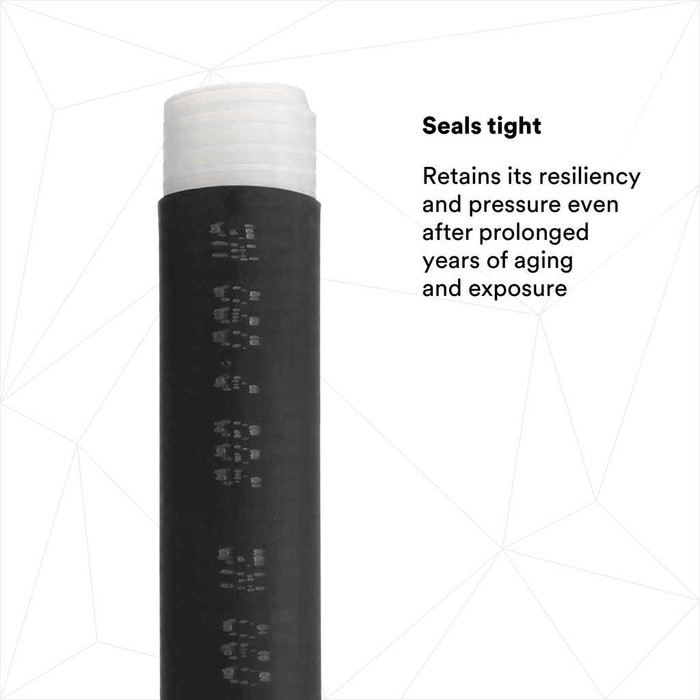

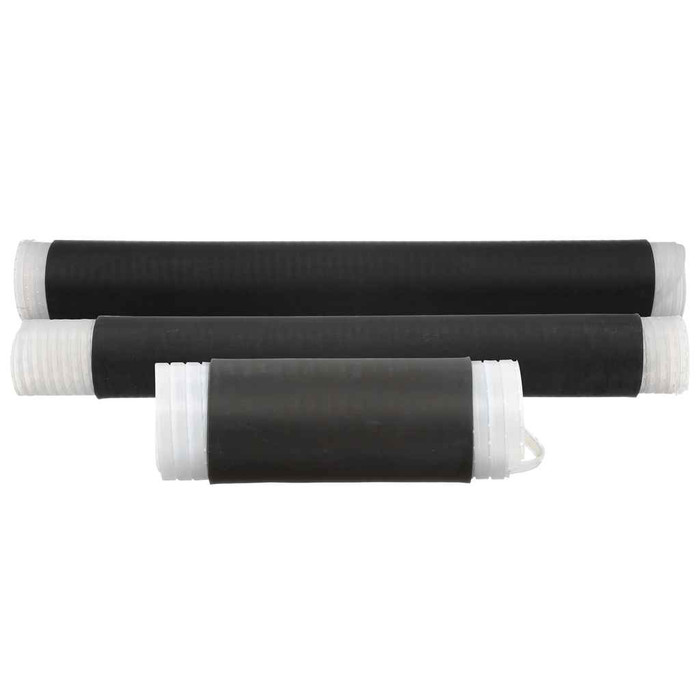

3M 7000005950 3M™ Cold Shrink Insulator 8428-12, Tape/Wire/UniShield® Shielding, 1 kV, Standard, 10/Case

3M 7000005950 3M™ Cold Shrink Insulator 8428-12, Tape/Wire/UniShield® Shielding, 1 kV, Standard, 10/Case

(No reviews yet) Write a Review

Model: 7000005950
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$149.31
$100.12
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3M™ Cold Shrink Insulator 8428-12, Tape/Wire/UniShield® Shielding, 1 kV, Standard, 10/Case

  • Features

    • Simple installation which requires no tools
    • Made of EPDM rubber which contains no chlorides or sulfur
    • Covers a wide range of cable cross sections
    • Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts
    • Withstands temperatures of -40 to 90 degC (-40 to 194 degF)
    • Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts


7000005950 - spec sheet

Manufacturer Resources

Product Specs

Application:
Insulation, mechanical protection, repair
Cable Shielding:
Non-shielded
Cable Type:
Power Cable
Conductor Material:
Aluminum
Country Of Origin:
United States
Etim Class 7 0:
EC000217
Etim Class 8 0:
EC000217
Halogen Free:
No
Inner Diameter After Shrink Imperial :
0.949 in
Inner Diameter After Shrink Metric :
24.1 mm
Inner Diameter Before Shrink Imperial :
1.937 in
Inner Diameter Before Shrink Metric :
49.2 mm
Manufacturing Origin:
USA
Maximum Conductor Size Imperial :
800 kcmil
Maximum Conductor Size Metric :
400 mm²
Maximum Connector Length:
8.0 in
Maximum Connector Length Metric :
203.2 mm
Maximum Operating Temperature Celsius :
90.0 Degree
Maximum Operating Temperature Fahrenheit :
194.0 Degree
Minimum Conductor Size Imperial :
600 kcmil
Minimum Conductor Size Metric :
300 mm²
Minimum Operating Temperature Celsius :
-40.0 Degree
Minimum Operating Temperature Fahrenheit :
-40.0 Degree
Number Of Conductors:
1
Overall Length Imperial :
12.0 in
Overall Length Metric :
304.8 mm
Product Color:
Black
Product Material:
EPDM Rubber
Product Model:
Cold-shrink
Product Type:
Splice
Product Voltage:
1 kV
Rds Url Regulatory Data Sheet :
https://cdmsweb.3m.com/ingredientcommunication/file/Media/oNmlOJecv64
Relaxed Tube Length:
12.0 in
Relaxed Tube Length Metric :
304.8 mm
Rohs Eu Comments:
RoHS 2011/65/EU compliant without exemption
Splice Type:
Cold Shrink
Units Per Case:
10
Voltage Application:
Low Voltage
Department:
Electrical

3M 7000005950 – Frequently Asked Questions

1) What conductor sizes does the 3M 8428-12 cold shrink insulator fit?
The 8428-12 covers conductors from 600 kcmil up to 800 kcmil (300 to 400 mm2), single conductor. If your cable is smaller than 600 kcmil, this size will over-shrink past its range and you want a smaller tube in the 8428 family.
2) Can I use the 3M 8428-12 on medium voltage shielded cable?
No. The 8428-12 is a 1 kV, low voltage insulator for non-shielded applications, intended for primary insulation of solid dielectric insulated wire and cable splicing rated to 1000 volts. For 5 kV and above on shielded cable you need a rated medium voltage cold shrink splice kit, not this tube.
3) Do I need a torch or heat gun to install the 8428-12?
No heat and no tools. It's a cold shrink tube: you position it over the joint and pull the core out, and the EPDM rubber contracts on its own. That's the reason crews use it in vaults, manholes, and anywhere a flame is not allowed.
4) What jobs is the 3M 8428-12 cold shrink insulator actually used for besides splices?
Three things beyond straight splice insulation: sealing terminal lug barrels, sealing conduit couplings, and covering conduit-to-cable breakouts. The catalogued application is insulation, mechanical protection, and repair, so it also works as a jacket repair sleeve on damaged low voltage power cable.
5) Will the 8428-12 hold up outdoors in freezing winters and hot duct banks?
Its operating range is -40 to 90 degC (-40 to 194 degF), which covers northern winter exposure and the heat of a loaded conductor in a duct bank. The EPDM compound carries no chlorides or sulfur, so it won't attack the connector or cable it's sealing.
6) Can the 8428-12 be used on aluminum conductor cable?
Yes, it's specified for aluminum conductor power cable, single conductor. The tube itself is an insulating and sealing sleeve, so it goes over whatever compression or mechanical connector you've already made up, as long as that connector stays within 8 inches long.
7) How many 3M 8428-12 insulators come in a case?
Ten per case. For a three-phase 600 kcmil splice you're using one per conductor, so a case covers roughly three sets of three-phase terminations with one spare.
8) Is the 3M 8428-12 RoHS compliant and where is it made?
It is RoHS 2011/65/EU compliant without exemption, and it's manufactured in the United States. Worth noting for spec packages: it is not halogen free.
