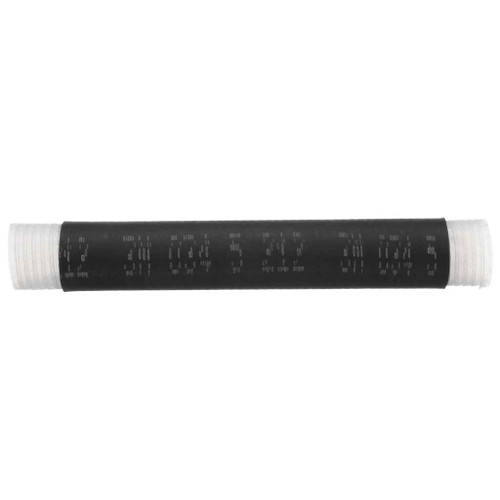

3M 7010397012 3M, Cold Shrink Insulator 8426-9P, 2/0 AWG-250 kcmil (70-125 mm²), 10/case - Pointof purchase
Model: 3M-7010397012
3M, Cold Shrink Insulator 8426-9P, 2/0 AWG-250 kcmil (70-125 mm²), 10/case - Pointof purchase
Features
Withstands temperatures of -40 to 90 degC (-40 to 194 degF)
Simple installation which requires...
3M
$113.03
$63.03
3M 7010397011 3M, Cold Shrink Insulator 8424-8P, 1-1/0 AWG, 10/case - Point of purchase
Model: 3M-7010397011
3M, Cold Shrink Insulator 8424-8P, 1-1/0 AWG, 10/case - Point of purchase
Features
Made of EPDM rubber which contains no chlorides or sulfur
Sealing of terminal lug barrels, conduit couplings and...
3M
$110.34
$60.34
3M 7010349008 3M, Cold Shrink Insulator 8427-12P, Tape/Wire/UniShield Shielding, 1 kV, Standard, 10/Case
Model: 3M-7010349008
3M, Cold Shrink Insulator 8427-12P, Tape/Wire/UniShield Shielding, 1 kV, Standard, 10/Case
Features
Specially designed for primary insulation of solid dielectric insulated wires and cable splicing...
3M
$142.11
$92.11
3M 8427-12P Cold Shrink Insulator 8427-12P, Tape, Wire, Unishield, 1 kV, Standard, 10 per case
Model: 3M-8427-12P
3M Cold Shrink Insulator 8427-12P, Tape, Wire, Unishield, 1 kV, Standard, 10 per case
Overview
Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated...
3M
$921.10
3M 7000006124 3M, Cold Shrink Insulator 8424-8 (OD 2.5-10.1 mm) 1kV, 10 EA/Case
Model: 3M-7000006124
3M, Cold Shrink Insulator 8424-8 (OD 2.5-10.1 mm) 1kV, 10 EA/Case
Features
Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
Made...
3M
$116.04
$66.04

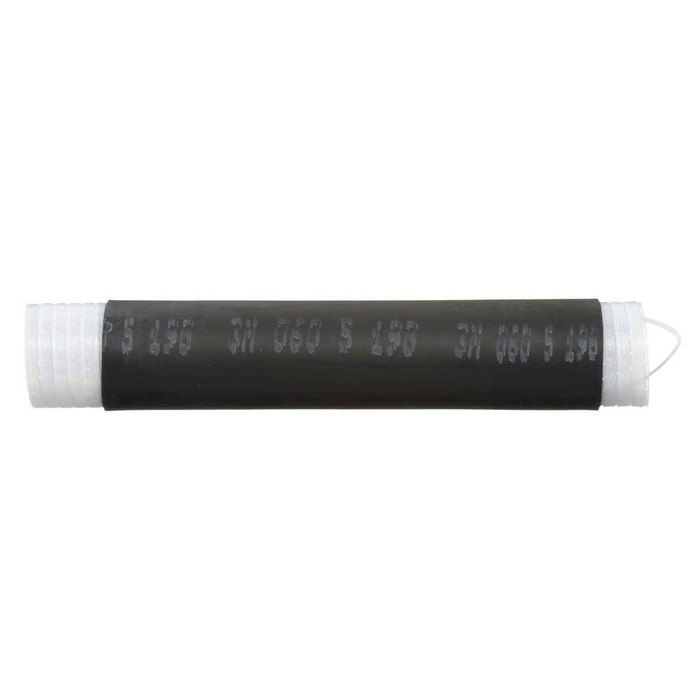

3M, Cold Shrink Insulator 8428-12P, 500-800 kcmil (300-400 mm²), 10/case - Point of purchase
7000132745 - spec sheet
Features
- Simple installation which requires no tools
- Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts
- Covers a wide range of cable cross sections
- Made of EPDM rubber which contains no chlorides or sulfur
- Withstands temperatures of -40 to 90 degC (-40 to 194 degF)
- Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
7000132745 - spec sheet
Manufacturer Resources
Product Specs
- Ais Url Article Information Sheet :
- https://https://cdmsweb.3m.com/ingredientcommunication/file/Media/OGArb9HsN1s
- Application:
- Insulation, mechanical protection, repair
- Cable Shielding:
- Tape Shield
- Cable Type:
- Power Cable
- Conductor Material:
- Aluminum
- Connector Included:
- No
- Country Of Origin:
- United States
- Dielectric Strength V Mil :
- 365 V/mil
- Elongation Uom:
- %
- Etim Class 7 0:
- EC000217
- Etim Class 8 0:
- EC000217
- Halogen Free:
- No
- Indoor Outdoor:
- Both
- Inner Diameter After Shrink Imperial :
- 0.949 in
- Inner Diameter After Shrink Metric :
- 24.1 mm
- Inner Diameter Before Shrink Imperial :
- 1.937 in
- Inner Diameter Before Shrink Metric :
- 49.2 mm
- Manufacturing Origin:
- USA
- Maximum Conductor Size Imperial :
- 800 kcmil
- Maximum Conductor Size Metric :
- 400 mm²
- Maximum Connector Length:
- 8.0 in
- Maximum Connector Length Metric :
- 203.2 mm
- Maximum Operating Temperature Celsius :
- 90.0 Degree
- Maximum Operating Temperature Fahrenheit :
- 194.0 Degree
- Minimum Conductor Size Imperial :
- 600 kcmil
- Minimum Conductor Size Metric :
- 300 mm²
- Minimum Operating Temperature Celsius :
- -40.0 Degree
- Minimum Operating Temperature Fahrenheit :
- -40.0 Degree
- Number Of Conductors:
- 1
- Product Color:
- Black
- Product Material:
- EPDM Rubber
- Product Model:
- Cold-shrink
- Product Type:
- Splice
- Product Voltage:
- 1 kV
- Rds Url Regulatory Data Sheet :
- https://cdmsweb.3m.com/ingredientcommunication/file/Media/q3l_4Oz1wnw
- Relaxed Tube Length:
- 12.0 in
- Relaxed Tube Length Metric :
- 304.8 mm
- Rohs Eu Comments:
- RoHS 2011/65/EU compliant without exemption
- Shelf Life:
- 1800
- Splice Type:
- Cold Shrink
- Voltage Application:
- Low Voltage
