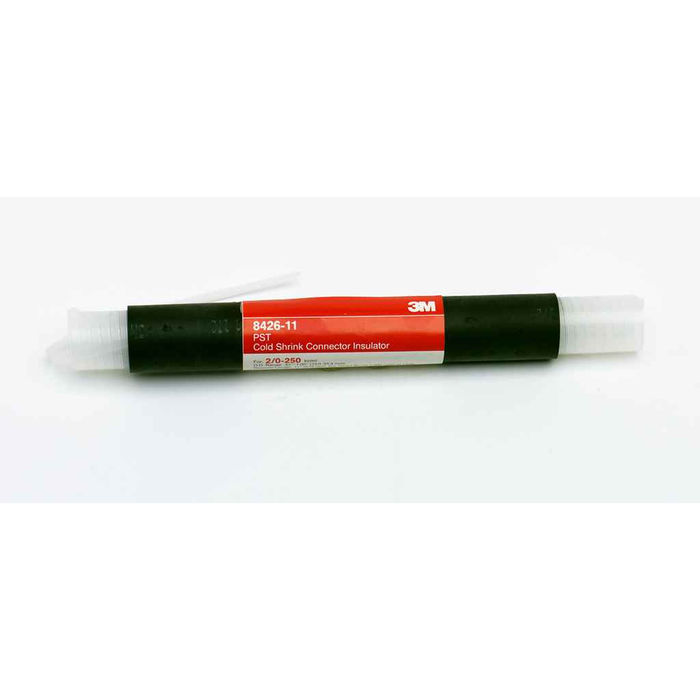

3M 8426-11 3M™ Cold Shrink Insulator 8426-11, 2/0 AWG-250 kcmil(70-125 mm²), 10/Case

3M 8426-11 3M™ Cold Shrink Insulator 8426-11, 2/0 AWG-250 kcmil(70-125 mm²), 10/Case

(No reviews yet) Write a Review

Model: 8426-11
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$107.69
$56.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3M™ Cold Shrink Insulator 8426-11, 2/0 AWG-250 kcmil(70-125 mm²), 10/Case

  • Features

    • Made of EPDM rubber which contains no chlorides or sulfur
    • Simple installation which requires no tools
    • Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts
    • Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
    • Made of black EPDM rubber


8426-11 - spec sheet

Manufacturer Resources

Product Specs

Application:
Insulation, mechanical protection, repair
Cable Shielding:
Non-shielded|| Tape Shield|| UniShield®|| Wire Shield
Cable Type:
Non-Shieled, Solid Dielectric Power Cable
Color Family Incorporate Product Color :
Black
Conductor Material:
Aluminum|| Copper
Conductor Size Range:
2/0 AWG-250 kcmil
Conductor Sizes:
70-125 mm²
Halogen Free:
No
Inner Diameter After Shrink Imperial :
0.547 in
Inner Diameter After Shrink Metric :
13.9 mm
Inner Diameter Before Shrink Imperial :
1.185 in
Inner Diameter Before Shrink Metric :
30.1 mm
Manufacturer Catalog Number:
7000006133
Manufacturing Origin:
USA
Maximum Connector Length:
7.0 in
Maximum Connector Length Metric :
177.8 mm
Maximum Operating Temperature Celsius :
90 Degree Celsius
Maximum Operating Temperature Fahrenheit :
194 Degree Fahrenheit
Minimum Operating Temperature Celsius :
-40 Degree Celsius
Minimum Operating Temperature Fahrenheit :
-40 Degree Fahrenheit
Number Of Conductors:
1
Overall Length Imperial :
11 in
Overall Length Metric :
279.4 mm
Package Height:
1.50000 in
Package Length:
20.00000 in
Package Weight:
0.2660 LBS
Product Material:
EPDM Rubber
Product Voltage:
1 kV
Relaxed Tube Length:
11 in
Relaxed Tube Length Metric :
279.4 mm
Splice Type:
Cold Shrink
Voltage Application:
Low Voltage
Department:
Electrical

3M 8426-11 – Frequently Asked Questions

1) Do I need a torch or heat gun to install the 8426-11?
No. This is a cold shrink tube, not heat shrink. It comes pre-expanded on a removable core, and you pull the core ribbon out to let the EPDM rubber contract onto the cable. No flame, no heat gun, no tools, which is why it gets specified in vaults, manholes and other spaces where open flame is a problem.
2) Can I use the 8426-11 on shielded cable?
Yes, for insulation, mechanical protection and repair work it's listed for use over non-shielded, tape shield, UniShield and wire shield cable constructions. The cable type it's designed around is non-shielded solid dielectric power cable, and its 1 kV rating means shielded medium voltage splices still need a proper MV splice kit; the 8426-11 is the jacket-level insulator and protector, not the MV splice body.
3) Can the 8426-11 cold shrink insulator be installed outdoors in cold weather?
Its operating range runs from -40 C (-40 F) up to 90 C (194 F), so it holds up in winter installs and at normal power cable conductor operating temperatures. The EPDM rubber contains no chlorides or sulfur, which is what keeps it from attacking the cable insulation or connector over time.
4) What else can I use the 8426-11 cold shrink tube for besides splices?
Beyond insulating a splice, it's used to seal terminal lug barrels, conduit couplings, and conduit-to-cable breakouts, and for general mechanical protection and cable repair. Anywhere you need a watertight elastomeric seal over an irregular shape within its 1.185 in expanded to 0.547 in recovered diameter range.
5) Is the 3M 8426-11 halogen free?
No. The 8426-11 is a black EPDM rubber tube and is not a halogen free product. If your facility spec calls for halogen free materials in cable accessories, this one will not meet it.
6) How many 8426-11 insulators come in a case and what is the 3M catalog number?
The 8426-11 is sold 10 per case. The manufacturer part number is 8426-11 and 3M's catalog number is 7000006133. It's made in the USA.
