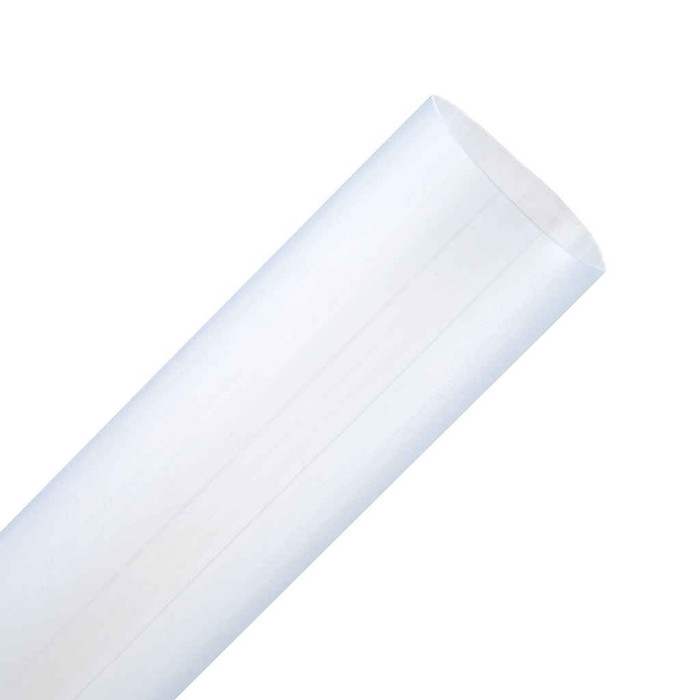

3M, Heat Shrink Thin-Wall Tubing FP-301-1.5-Clear-100', 100 ft Length per spool, 2 spools/case
7100025155 - spec sheet
Features
- A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
- HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
- FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
- FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
- KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
7100025155 - spec sheet
Manufacturer Resources
Product Specs
- Ais Url Article Information Sheet :
- https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xl82U5x_GPv70k17zHvu9lxtD7xtBevSS
- Country Of Origin:
- United States
- Elongation Uom:
- Decibel
- Etim Class 7 0:
- EC000217
- Etim Class 8 0:
- EC000217
- Expanded Inner Diameter:
- 1.5 in
- Expanded Inner Diameter Metric :
- 38.1 mm
- Flame Retardant:
- No
- Flammability Rating:
- No Flame Rating
- Heat Shrink Type:
- Single-Wall Polyolefin Heat Shrink Tubing
- Inner Diameter After Shrink Imperial :
- 0.75 in
- Inner Diameter After Shrink Metric :
- 19.05 mm
- Inner Diameter Before Shrink Imperial :
- 1.5 in
- Inner Diameter Before Shrink Metric :
- 38.1 mm
- Manufacturing Origin:
- USA
- Maximum Operating Temperature Celsius :
- 135
- Maximum Operating Temperature Celsius Uom:
- Degree
- Maximum Operating Temperature Fahrenheit :
- 275.0 Degree
- Mil Spec:
- AMS-DTL-23053/5, Class 2
- Minimum Shrink Temperature Celsius :
- 100
- Non Corrosive:
- Yes
- Operating Temperature Celsius :
- -55 to 135 Degrees Celsius
- Operating Temperature Range Celsius :
- -55 °C to +135 °C
- Operating Temperature Range Fahrenheit :
- -67 °F to 275 °F
- Overall Length Imperial :
- 100.0 ft
- Product Material:
- Flexible Polyolefin
- Rds Url Regulatory Data Sheet :
- https://cdmsweb.3m.com/ingredientcommunication/file/Media/fwt9ZntfVK8=
- Recovered Inner Diameter:
- 0.75 in
- Recovered Inner Diameter Metric :
- 19.05 mm
- Rohs Eu Comments:
- RoHS 2011/65/EU compliant without exemption
- Shelf Life:
- 3600
- Shrink Ratio:
- 2:01
- Solution For:
- Access Network: FTTH/FTTB/CATV
- Tensile Strength Imperial :
- 2400 Pound-Force Per Square Inch
- Tubing Type:
- Single Wall (Thin)
- Ul Approval:
- Yes
- Ul File Number:
- E-39100
- Units Per Case:
- 2
