3M 7000031598 3M™ Heat Shrink Tubing Assorted Black Kit FP-301-Black, 5 Kits/Case

3M 7000031598 3M™ Heat Shrink Tubing Assorted Black Kit FP-301-Black, 5 Kits/Case

(No reviews yet) Write a Review

Model: 7000031598
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$237.71
$187.71
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

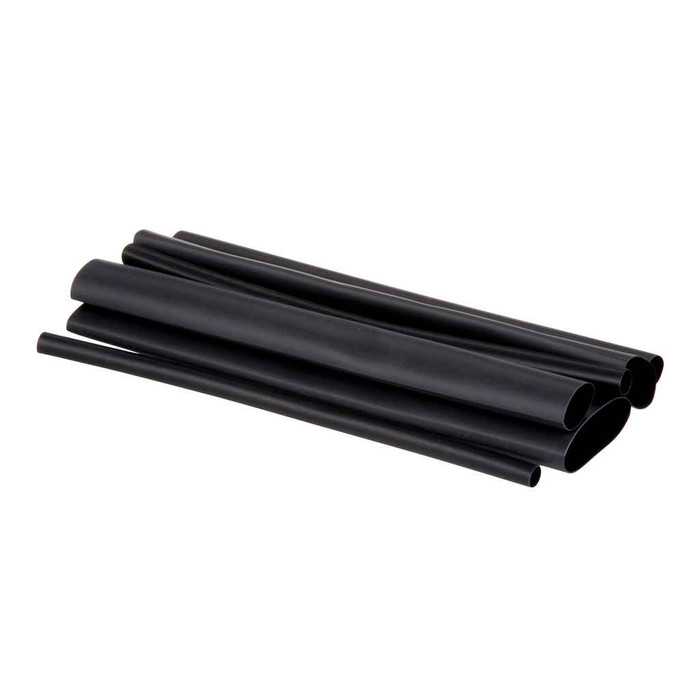

3M™ Heat Shrink Tubing Assorted Black Kit FP-301-Black, 5 Kits/Case

  • Features

    • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
    • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
    • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
    • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
    • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant

Manufacturer Resources

Product Specs

Additional Flammability Rating:
23053/5 class1
Applicable Sae Ams Dtl 23053 Specifications:
23053/5 class 1
Assortment Kits:
Yes
Country Of Origin:
United States
Dielectric Strength:
900.0 V/mil
Elongation Uom:
%
Etim Class 7 0:
EC000217
Etim Class 8 0:
EC000217
Flame Retardant:
Yes (except clear)
Flammability Rating:
UL 224 All Tubing Flame Test
Heat Shrink Type:
Heat Shrink Tubing Kits
Manufacturing Origin:
USA
Maximum Operating Temperature Celsius :
135
Maximum Operating Temperature Celsius Uom:
Degree
Maximum Operating Temperature Fahrenheit :
275.0 Degree
Mil Spec:
AMS-DTL-23053/5, Class 1
Minimum Shrink Temperature Celsius :
100
Non Corrosive:
Yes
Operating Temperature Celsius :
-55 to 135 Degrees Celsius
Operating Temperature Fahrenheit :
-67 °F to 275 °F
Operating Temperature Range Celsius :
-55 °C to +135 °C
Operating Temperature Range Fahrenheit :
-67 °F to 275 °F
Overall Length Imperial :
6.0 in
Overall Length Metric :
152.0 mm
Product Color:
Black
Product Form:
48 in (1.22 m) sticks
Product Material:
Flexible Polyolefin
Rohs Eu Comments:
RoHS 2011/65/EU compliant without exemption
Shelf Life:
3600
Shrink Ratio:
2:01
Solution For:
Access Network: FTTH/FTTB/CATV
Tensile Strength Imperial :
2400 Pound-Force Per Square Inch
Tubing Type:
Single Wall (Thin)
Ul Approval:
Yes
Units Per Case:
102
