3M 7000031588 3M™ Heat Shrink ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$246.66
$196.66
3M 7000031588 3M™ Heat Shrink Tubing FP-301-Color-Assortment: 5 Kits/Case

3M 7000031588 3M™ Heat Shrink Tubing FP-301-Color-Assortment: 5 Kits/Case

(No reviews yet) Write a Review

Model: 7000031588
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$246.66
$196.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3M™ Heat Shrink Tubing FP-301-Color-Assortment: 5 Kits/Case

  • Features

    • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
    • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
    • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
    • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant

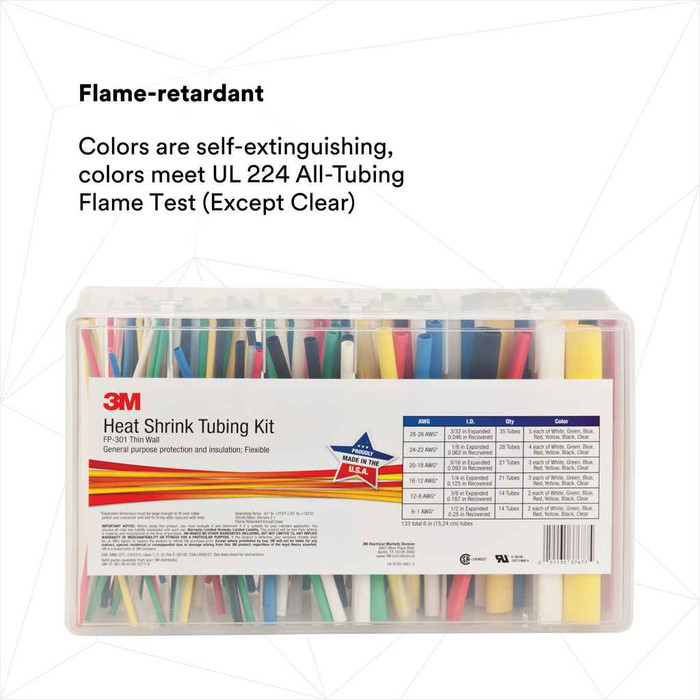

    • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)

Manufacturer Resources

Product Specs

Additional Flammability Rating:
23053/5 class1
Applicable Sae Ams Dtl 23053 Specifications:
23053/5 class 1
Assortment Kits:
Yes
Country Of Origin:
United States
Dielectric Strength:
900.0 V/mil
Elongation Uom:
%
Etim Class 7 0:
EC000217
Etim Class 8 0:
EC000217
Expanded Inner Diameter:
2.0 in
Expanded Inner Diameter Metric :
50.80 mm
Flame Retardant:
Yes (except clear)
Flammability Rating:
UL 224 All Tubing Flame Test
Heat Shrink Type:
Heat Shrink Tubing Kits
Manufacturing Origin:
USA
Maximum Operating Temperature Celsius :
135
Maximum Operating Temperature Celsius Uom:
Degree
Maximum Operating Temperature Fahrenheit :
275.0 Degree
Mil Spec:
AMS-DTL-23053/5, Class 1
Minimum Shrink Temperature Celsius :
100
Non Corrosive:
Yes
Operating Temperature Celsius :
-55 to 135 Degrees Celsius
Operating Temperature Fahrenheit :
-67 °F to 275 °F
Operating Temperature Range Celsius :
-55 °C to +135 °C
Operating Temperature Range Fahrenheit :
-67 °F to 275 °F
Overall Length Imperial :
48.0 in
Product Form:
48 in (1.22 m) sticks
Product Material:
Flexible Polyolefin
Recovered Inner Diameter:
1.0 in
Recovered Inner Diameter Metric :
25.4 mm
Rohs Eu Comments:
RoHS 2011/65/EU compliant without exemption
Shelf Life:
3600
Shrink Ratio:
2:01
Tensile Strength Imperial :
2400 Pound-Force Per Square Inch
Tubing Type:
Single Wall (Thin)
Ul Approval:
Yes
Units Per Case:
133
Department:
Electrical

3M 7000031588 – Frequently Asked Questions

1) What size wire or connectors will the 3M FP-301 color assortment kit cover?
The FP-301 assortment covers a wide span because it shrinks 2:1. The largest tubing in the range goes on at a 2.0 inch (50.80 mm) expanded inner diameter and recovers down to 1.0 inch (25.4 mm), so anything from a single conductor up to a sizable bundle or lug barrel is in scope as long as the part slides over the connector before heating and the recovered size is smaller than what you are covering.
2) What temperature does FP-301 tubing need to shrink, and how hot can it run afterward?
It starts recovering at 100 degrees C, which a standard electrical heat gun reaches easily. Once installed it holds a continuous operating range of -67 F to 275 F (-55 C to 135 C), so it is fine in engine compartments, unconditioned mechanical rooms, and outdoor panels.
3) Is 3M FP-301 heat shrink UL listed and rated for 600V work?
UL Listed under File E-39100 and CSA Certified, and the tubing is flame retardant for applications up to 600V. The one exception is the clear tubing, which is not flame retardant. It also passes the UL 224 all-tubing flame test and is RoHS 2011/65/EU compliant without exemption.
4) Does this 3M tubing meet a military spec for aerospace or defense wiring?
Yes. FP-301 is built to AMS-DTL-23053/5, Class 1, the flexible polyolefin heat shrink spec used on military and aerospace harnesses. Clear material is the Class 2 variant. If your drawing calls out 23053/5 Class 1, this is the material it is asking for.

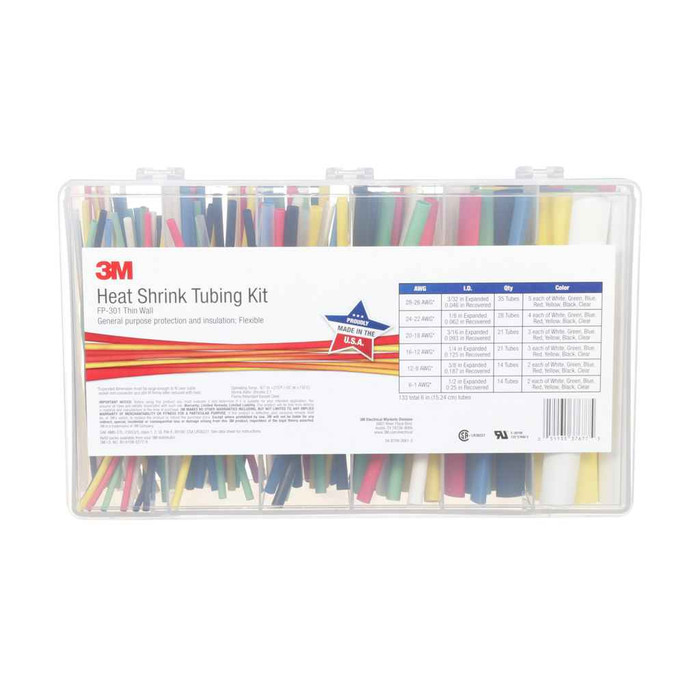

5) Why buy the color assortment instead of a single color of heat shrink?
Color coding. The assortment kit ships multiple colors so a crew can mark phases, polarity, or circuit IDs at the splice without adding separate wire labels. Every color in the kit carries the Class 1 flame retardant rating; only clear drops to Class 2 and is not flame retardant. Ordered as a case of 5 kits, 133 units total.
6) Where is 3M FP-301 heat shrink tubing made, for Buy American or TAA jobs?
Made in the United States. That matters on federal, military, and institutional contracts where domestic origin is written into the purchase order. The part number to cite is 3M 7000031588.
7) Will FP-301 corrode the copper or tinned terminals it covers?
No. The material is non-corrosive, so it can go directly over copper conductors, tinned lugs, and bare terminal barrels without attacking the metal over time.
8) How tough is 3M FP-301 tubing once it is shrunk down on a harness?
Tensile strength runs 2400 psi and dielectric strength is 900 V/mil, which is why it holds up as strain relief and split-resistant covering on wire harnesses rather than just as a cosmetic sleeve. Common uses are harnessing, wire marking, bundling, and component packaging.
