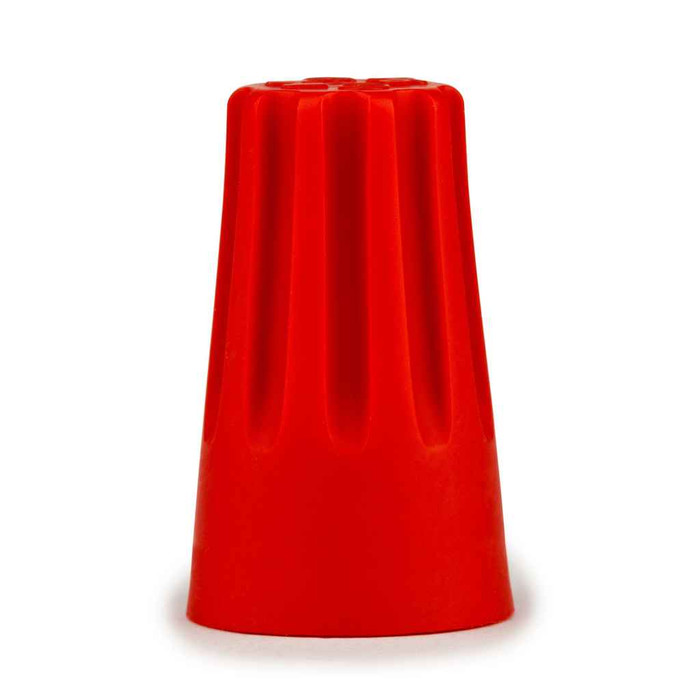

3M H-35-POUCH 3M, Highland, Wire Connector H-35-POUCH, 18-10 AWG, Red, 100 per Pouch

3M H-35-POUCH 3M, Highland, Wire Connector H-35-POUCH, 18-10 AWG, Red, 100 per Pouch

(No reviews yet) Write a Review

Model: H-35-POUCH
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.47
$23.26
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3M, Highland, Wire Connector H-35-POUCH, 18-10 AWG, Red, 100 per Pouch

  • Features

    • Available in hand driver or power driver options
    • Suitable for select 3M, Peformance Plus, Wire Connectors and 3M, Secure Grip Wire Connectors
    • Used for connecting and insulating wire connections in a pigtail application


H-35-POUCH - spec sheet

Manufacturer Resources

Product Specs

Color Family Incorporate Product Color :
Red
Connection Type:
Wire
Connector Style:
Twist On
Flame Retardant:
No
Manufacturer Catalog Number:
7010348892
Maximum Conductor Size:
10 AWG
Maximum Recommended Voltage Rating:
600 V
Maximum Wire Gauge:
10 AWG
Minimum Conductor Size:
18 AWG
Minimum Wire Gauge:
18 AWG
Package Height:
9.06000 in
Package Length:
5.90000 in
Package Weight:
1.1959 LBS
Wire Connector Type:
Twist-on Wire Connectors
Wire Gauge:
Twist-on Wire Connectors
Department:
Electrical

3M H-35-POUCH – Frequently Asked Questions

1) What wire sizes does the 3M Highland H-35 red wire connector handle?
The Highland H-35 red twist-on connector covers 18 AWG through 10 AWG conductors. That range takes in the everyday branch-circuit work most electricians do, 14 and 12 AWG, plus 10 AWG for water heater, dryer and A/C circuits, and 18 AWG for fixture and control leads. Outside 18-10 AWG you need a different connector.
2) Is the 3M Highland H-35 wire connector flame retardant?
No. The H-35 shell is not flame retardant. If your spec or inspector calls for a flame-retardant connector shell, this is not the one to submit.
3) How many wire connectors come in a pouch of 3M H-35-POUCH?
Each pouch holds 100 red H-35 connectors. Order by the pouch, not the piece. The pouch packaging is meant for the van or the tool pouch rather than a jar on the bench.
4) What are red wire nuts used for compared to yellow or blue ones?
Color is how the trade reads capacity at a glance. The red H-35 is the 18-10 AWG size, the largest of the common branch-circuit wire nuts, so it is what you reach for on 10 AWG splices and on larger multi-conductor pigtails where a smaller nut will not close. Smaller-capacity connectors in other colors handle light fixture and low-count 14/12 AWG splices. If the wires bottom out or the nut spins without biting, you are on the wrong size.
5) Can these red connectors be used for pigtailing in a device box?
That is exactly the application. The Highland H-35 connects and insulates wire connections in a pigtail arrangement, joining the circuit conductors and the device lead under one connector. With an 18-10 AWG range it takes multiple 14 or 12 AWG conductors plus a pigtail in a single splice.
6) Can I drive the H-35 wire nut with a drill instead of twisting by hand?
3M offers driver tooling in both hand driver and power driver versions for its wire connector line, and that tooling suits select 3M Performance Plus and 3M Secure Grip connectors. The H-35 itself is a twist-on connector, so for high-count pigtail work on a panel or a lighting retrofit, pair it with the appropriate driver rather than wearing out your wrist.
7) What is the 3M catalog number for the H-35-POUCH red wire connectors?
3M's catalog number for the Highland H-35-POUCH is 7010348892, and the ordering part number is H-35-POUCH. Distributors cross-referencing a 3M line sheet should use 7010348892; contractors ordering off a submittal will see H-35-POUCH.
