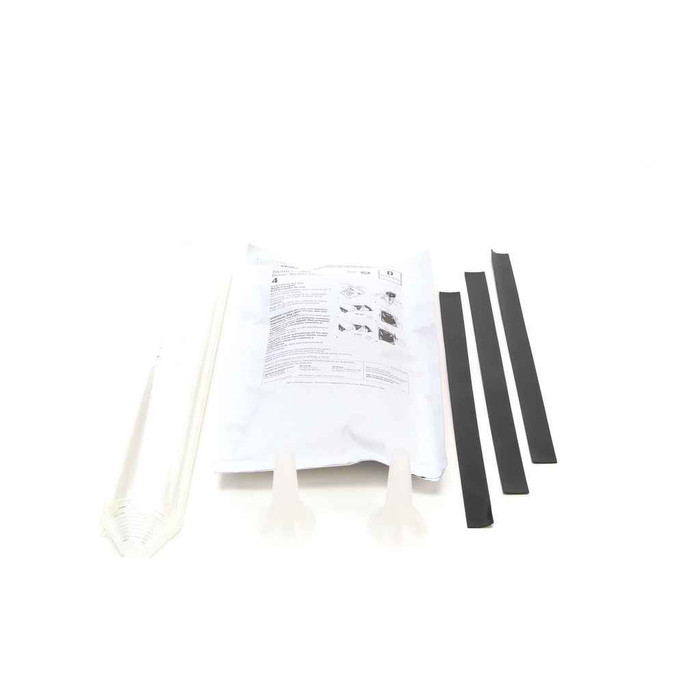

3M 7100117646 3M, Scotchcast, Inline Resin Splice kit 82-A3N, 1-5 kV, Non-Shielded, 10/Case

3M 7100117646 3M, Scotchcast, Inline Resin Splice kit 82-A3N, 1-5 kV, Non-Shielded, 10/Case

(No reviews yet) Write a Review

Model: 7100117646
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$341.06
$291.06
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3M, Scotchcast, Inline Resin Splice kit 82-A3N, 1-5 kV, Non-Shielded, 10/Case

  • Features

    • Excellent multi-purpose moisture sealing resin
    • Designed for weather-exposed or direct burial locations
    • Insulates and seals unshielded, single conductor cables and multiple conductor cables
    • Rated for 5 kV and 1 kV cables
    • Tough and oil resistant
    • Splices non-shielded submersible cables


7100117646 - spec sheet

Manufacturer Resources

Product Specs

Application:
Sealing, electrical insulation and mechanical protection
Cable Shielding:
Single Conductor Portable Cable
Conductor Amount:
Multiple
Country Of Origin:
United States
Dielectric Strength:
500.0 mV
Etim Class 8 0:
EC001169
Insulation O D Range:
1.00 - 1.563 Inch
Insulation Outside Diameter Range:
1.00 - 1.563 Inch
Insulation Outside Diameter Range Metric :
25 - 40 mm
Manufacturing Origin:
USA
Maximum Cable Outside Diameter:
1.56 in
Maximum Cable Outside Diameter Metric :
39.7 mm
Maximum Conductor Size Imperial :
3/0 AWG
Maximum Conductor Size Metric :
185 mm²
Maximum Insulation Outer Diameter Imperial :
1.5625 in
Maximum Insulation Outer Diameter Metric :
39.688 mm
Minimum Conductor Size Imperial :
3/0 AWG
Minimum Conductor Size Metric :
185 mm²
Minimum Insulation Outer Diameter Imperial :
1.0 in
Minimum Insulation Outer Diameter Metric :
25.4 mm
Product Color:
Black
Product Material:
Epoxy
Product Technology:
Resin
Product Type:
Splice
Product Voltage:
5 kV
Rohs Eu Comments:
RoHS 2011/65/EU compliant without exemption
Series:
82-A Series
Shelf Life:
1095
Splice Type:
Inline
Voltage Application:
Medium Voltage
