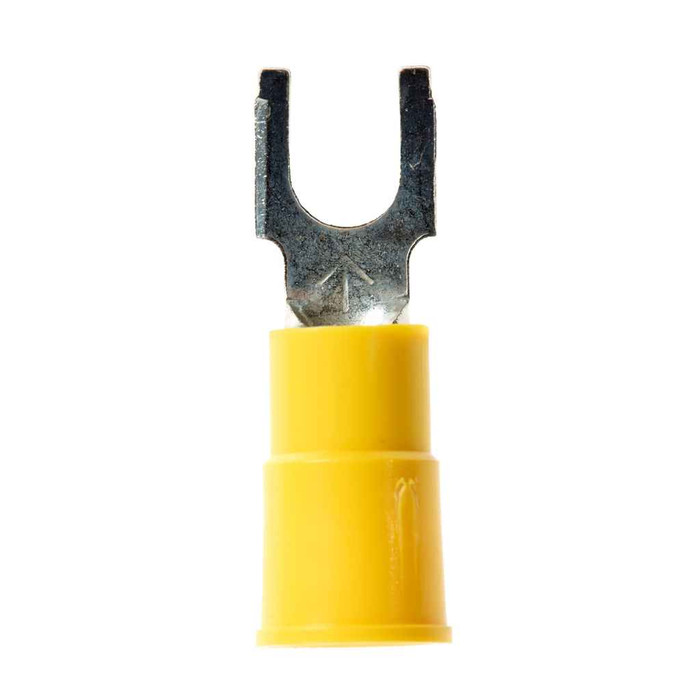

3M Scotchlok Block Fork Terminal Connectors #10 Stud 12-10 AWG Vinyl Insulated 50/Bottle

3M Scotchlok Block Fork Terminal Connectors #10 Stud 12-10 AWG Vinyl Insulated 50/Bottle

Professional electrical connections with reliable brazed-seam construction

3M Scotchlok Block Fork Terminal Connectors deliver professional-grade electrical connections for terminal block applications. These yellow vinyl-insulated connectors accommodate 12-10 AWG wire sizes with #10 stud compatibility, featuring a funnel-designed polyvinyl chloride sleeve for easy wire insertion and a brazed-seam barrel construction that ensures secure fit and reliable performance in electrical installations.

Professional Features & Benefits

• 12-10 AWG Wire Compatibility: Accommodates standard wire gauges for versatile electrical connection applications
• #10 Stud Size: Designed for secure mounting on standard terminal blocks and electrical panels
• 600V Maximum Voltage Rating: Supports high-voltage applications with reliable insulation protection
• Brazed-Seam Barrel Construction: Ensures secure mechanical connection and long-term electrical reliability
• Funnel-Designed PVC Sleeve: Facilitates easy wire insertion and provides effective insulation coverage
• 221�F Maximum Operating Temperature: Maintains performance integrity in demanding thermal environments
• ETP Copper Construction: Provides excellent conductivity and corrosion resistance for lasting connections

Technical Specifications

• Barrel Inside Diameter: 0.135 Inch
• Barrel Style: Brazed
• Clearance C : 0.29 Inch
• Color Family Incorporate Product Color : Yellow
• Conductor Size: 12 - 10 AWG
• Dimension E: 0.84 Inch
• Fork Type: Block
• Insulation Material: Vinyl
• Manufacturer Catalog Number: 7000133343
• Manufacturing Origin: USA
• Maximum Conductor Size: 10 AWG
• Maximum Insulation Outer Diameter Imperial : 0.250 Inch
• Maximum Insulation Outer Diameter Metric : 3.7 mm
• Maximum Insulation Outside Diameter: 0.145 in
• Maximum Operating Temperature Celsius : 105 Degree Celsius
• Maximum Operating Temperature Fahrenheit : 221 Degree Fahrenheit
• Maximum Recommended Voltage Rating: 600 V
• Maximum Wire Gauge: 10 AWG
• Minimum Conductor Size: 12 AWG
• Minimum Wire Gauge: 12 AWG
• Overall Length Imperial : 1.03 in
• Overall Length Metric : 26.162 mm
• Overall Width Imperial : 0.32 in
• Overall Width Metric : 8.128 mm
• Package Height: 4.37500 in
• Package Length: 1.62500 in
• Package Weight: 0.2500 LBS
• Product Material: ETP Copper
• Stud Size: #10
• Terminal Style: Block
• Terminal Type: Fork

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Terminal Block Connections
• Electrical Panel Installations
• Control Circuit Wiring
• Industrial Equipment Connections
• Commercial Electrical Systems
• Maintenance and Repair Applications
• Professional Electrical Installations

Why Choose 3M Quality?

3M Scotchlok terminal connectors are manufactured in the USA with ETP copper construction and vinyl insulation materials that provide reliable performance up to 600V and 221�F operating conditions. The brazed-seam barrel design ensures long-term electrical integrity and mechanical reliability for professional electrical installations.
