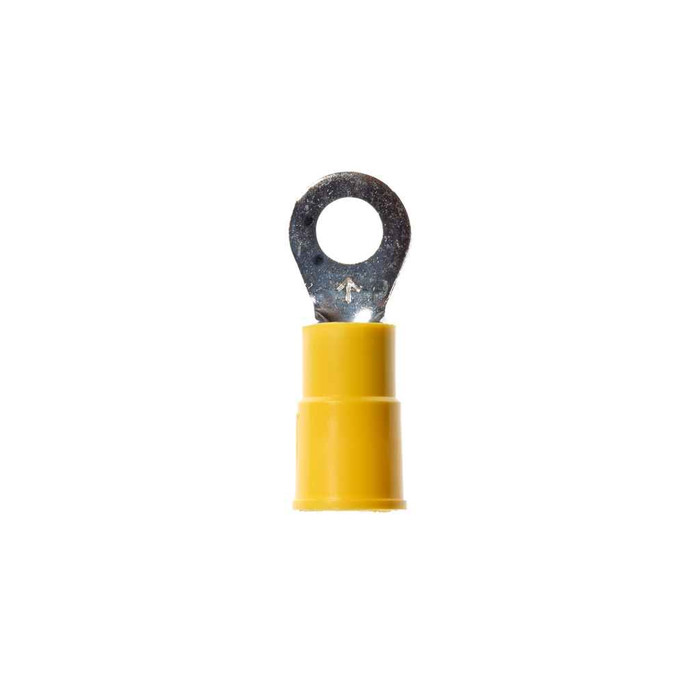

3M Scotchlok Ring Terminal Vinyl Insulated 12-10 AWG #10 Stud Yellow 50/Bottle

3M Scotchlok Ring Terminal Vinyl Insulated 12-10 AWG #10 Stud Yellow 50/Bottle

Professional vinyl-insulated ring terminals for secure electrical connections

3M Scotchlok Ring Terminal delivers reliable electrical connections with professional-grade vinyl insulation and brazed-seam barrel construction. Designed for 12-10 AWG wire sizes with #10 stud compatibility, these yellow vinyl-insulated terminals feature a funnel-designed polyvinyl chloride sleeve for easy wire insertion and standard-style ring tongue configuration that fits securely around studs. The brazed-seam barrel construction ensures secure fit and dependable performance in electrical applications.

Professional Features & Benefits

• 12-10 AWG Wire Compatibility: Accommodates standard wire gauges for versatile electrical connection applications
• #10 Stud Size: Standard-style ring tongue fits securely around #10 studs for reliable mechanical connection
• Funnel-Designed PVC Sleeve: Easy wire insertion reduces installation time and ensures proper conductor placement
• Brazed-Seam Barrel: Secure construction provides reliable electrical connection and mechanical strength
• 105�C Operating Temperature: High-temperature rating ensures performance in demanding electrical environments
• Yellow Vinyl Insulation: Color-coded identification and electrical insulation for safe, organized installations
• 50-Piece Bottle Packaging: Convenient quantity for professional electrical work and inventory management

Technical Specifications

• Color Family Incorporate Product Color: Yellow
• Connection Width Imperial: 0.19 in
• Connection Width Metric: 4.826 mm
• Manufacturer Catalog Number: 7000133338
• Maximum Conductor Size: 10 AWG
• Maximum Operating Temperature Celsius: 105 Degree Celsius
• Minimum Conductor Size: 12 AWG
• Overall Length Imperial: 1.03 in
• Overall Length Metric: 26.16 mm
• Overall Width Imperial: 0.38 in
• Overall Width Metric: 9.65 mm
• Package Height: 4.37500 in
• Package Length: 1.62500 in
• Package Weight: 0.2600 LBS
• Terminal Type: Ring

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Electrical Installations
• Commercial Wiring Projects
• Industrial Control Panels
• Electrical Equipment Connections
• Motor Control Centers
• Distribution Panel Connections
• Maintenance and Repair Applications

Why Choose 3M Quality?

3M Scotchlok terminals deliver professional reliability with brazed-seam barrel construction and high-temperature vinyl insulation rated to 105�C. The funnel-designed sleeve and standard ring tongue configuration ensure consistent, secure connections for demanding electrical applications.
