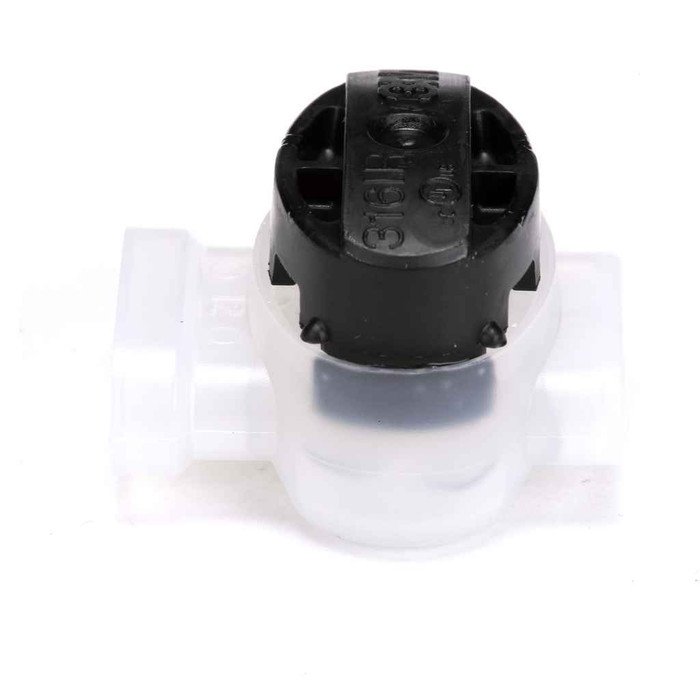

3M 7000058271 3M, Scotchlok, Electrical IDC 316IR, Pigtail, Irrigation Applications, Black/White, 22-16 AWG, 30 per carton, 300 /Case

3M 7000058271 3M, Scotchlok, Electrical IDC 316IR, Pigtail, Irrigation Applications, Black/White, 22-16 AWG, 30 per carton, 300 /Case

(No reviews yet) Write a Review

Model: 7000058271
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$52.37
$2.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3M, Scotchlok, Electrical IDC 316IR, Pigtail, Irrigation Applications, Black/White, 22-16 AWG, 30 per carton, 300 /Case

  • Features

    • Helps provide a moisture-resistant seal
    • Suitable for applications requiring moisture and UV protection
    • C UL Listed and RoHS 2011/65/EU Compliant
    • Accommodates 16 to 14 AWG solid/stranded, 12 AWG stranded (outer ports) and 18 AWG solid/stranded, 20 AWG stranded (inner port)


7000058271 - spec sheet

Manufacturer Resources

Product Specs

Ais Url Article Information Sheet :
https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xl82UNx_1Mv70k17zHvu9lxtD7xtBevSS
Conductor Sizes Imperial :
16 AWG
Connection Type:
Pigtail
Connector Connector Tool:
3M Crimping Tool E-9BM, 8" Mechanics (slip joint) Pliers
Connector Style:
Insulation Displacement
Country Of Origin:
United States
Etim Class 7 0:
EC000306
Etim Class 8 0:
EC000306
Flame Retardant:
Yes
Grease Filling Against Corrosion:
Yes
Insulation Color:
cap black, body white
Insulation Material:
Nylon
Insulation Outer Diameter Imperial :
0.155 in
Interrupt Free Shifting:
No
Manufacturing Origin:
USA
Max Number Of Cores:
3
Maximum Conductor Size Imperial :
16 AWG
Maximum Conductor Size Metric :
1.5
Maximum Operating Temperature Celsius :
105.0 Degree
Maximum Operating Temperature Fahrenheit :
221.0 Degree
Maximum Recommended Voltage Rating:
600.0 V
Minimum Conductor Size Imperial :
22 AWG
Minimum Conductor Size Metric :
.34 mm²
Moisture Resistant:
Yes
Packaging:
Box
Product Color:
Black, White
Product Material:
Flame Retardant Nylon
Product Type:
Connectors
Rds Url Regulatory Data Sheet :
https://cdmsweb.3m.com/ingredientcommunication/file/Media/_Ot6PJbrOII
Recommended Crimping Tool:
E-9BM
Rohs Eu Comments:
RoHS 2011/65/EU compliant without exemption
Run Maximum Insulation Outer Diameter Imperial :
0.155
Run Maximum Insulation Outer Diameter Metric :
3.9
Tap Maximum Insulation Outer Diameter Imperial :
0.155
Tap Maximum Insulation Outer Diameter Metric :
3.9
Ul File Number:
E23438
Voltage Application:
Low Voltage
Wire Connector Type:
IDC Connectors
Department:
Electrical

3M 7000058271 – Frequently Asked Questions

1) Can the 3M Scotchlok 316IR be used for buried irrigation valve wire splices?
That is what the 316IR is built for. It is a moisture-resistant, grease-filled insulation displacement connector for irrigation wiring, with the sealant packed in against corrosion so the splice tolerates wet, direct-burial conditions. It is a low voltage connector rated to a maximum recommended 600 V, so it covers 24 V valve solenoid runs with plenty of margin.
2) What wire sizes will the Scotchlok 316IR accept?
The 316IR covers 22 through 16 AWG overall. The port assignments matter: the outer ports take 16 to 14 AWG solid or stranded and 12 AWG stranded, while the inner port takes 18 AWG solid or stranded and 20 AWG stranded. Maximum insulation outside diameter is 0.155 in (3.9 mm) on both the run and the tap, so oversized jacket wire will not seat.
3) Do I have to strip the wires before using a Scotchlok 316IR?
No stripping. The 316IR is an insulation displacement connector: the metal element cuts through the insulation as you crimp the cap down, so you push the wires in with the jacket intact. You do need to seat it fully, and 3M calls for the E-9BM crimping tool or a pair of 8 inch mechanics (slip joint) pliers.
4) How many wires can go into one 316IR connector?
Three conductors maximum. It is a pigtail configuration, so all wires enter from the same end and the connector closes off the other side, which is the typical arrangement for tying a valve solenoid lead to a common and a field wire.
5) Is the 3M 316IR connector UL listed?
It carries a C UL Listing under 3M's UL file number E23438, and it is RoHS 2011/65/EU compliant without exemption. The body is flame retardant nylon.
6) What temperature can these irrigation splice connectors handle?
The 316IR is rated to a maximum operating temperature of 105 C (221 F). That covers valve boxes in full sun and direct-burial runs in hot climates.
7) How is the 316IR packaged and how many come in a case?
3M part 7000058271 ships boxed, 30 connectors per carton and 300 per case. For a landscape or grounds crew doing repeat valve repairs across a property, the case quantity is the one to stock.
8) Are these 3M Scotchlok connectors made in the USA?
Yes, country of origin on the 316IR is the United States. That matters on public works and government jobs carrying domestic sourcing requirements.
9) How do I tell a used 316IR apart from other Scotchlok connectors in the valve box?
Look for the black cap on a white body. That two-tone color is how the 316IR is identified in the field, and the shell is nylon.
