Scotchlok 905 IDC Double Run or Tap Electrical Connector 32V 22-18 AWG Tap 18-14 AWG Run Red Polypropylene Low Voltage Automotive Applications

Scotchlok 905 IDC Double Run or Tap Electrical Connector

Professional Low Voltage Electrical Connection Solution

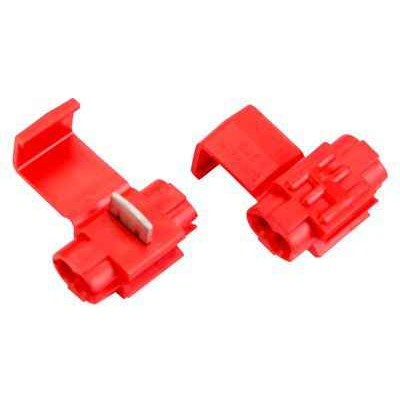

The Scotchlok 905 IDC Double Run or Tap Electrical Connector delivers reliable electrical connections for low voltage automotive and electronic applications. This red polypropylene-insulated connector accommodates 22-18 AWG tap wires and 18-14 AWG run wires, rated for 32V applications with temperature resistance up to 194�F (90�C). The insulation displacement design provides secure connections while maintaining proper insulation for professional installations.

Professional Features & Benefits

• 32V Rating: Suitable for low voltage automotive and electronic applications with reliable performance within specified voltage limits.
• Dual Wire Gauge Compatibility: Accommodates 22-18 AWG tap and 18-14 AWG run wires for versatile connection configurations in various installations.
• 194�F Temperature Rating: Withstands elevated temperatures up to 90�C for dependable operation in demanding automotive and electronic environments.
• Polypropylene Insulation: Durable plastic construction provides electrical insulation and mechanical protection for long-term reliability.
• Color-Coded Design: Red color coding enables quick wire size identification and reduces installation errors in professional applications.
• Brass Element Construction: Tin-plated brass elements deliver excellent conductivity and corrosion resistance for lasting electrical performance.
• RoHS Compliant: Meets RoHS 2011/65/EU compliance standards without exemption for environmentally responsible installations.

Technical Specifications

• 3m Id: 80601119607
• Agency Approvals: CE
• Conductor Size: 22 - 18 AWG (Tap), 18 - 14 AWG (Run)
• Conductor Sizes: 22 - 18 AWG (Tap), 18 - 14 AWG (Run)
• Connection Type: Double Run or Tap
• Connector Style: Insulation Displacement
• Family: IDC for Electrical Applications
• Flame Retardant: No
• Maximum Operating Temperature Celsius: 90 Degree Celsius
• Maximum Operating Temperature Fahrenheit: 194 Degree Fahrenheit
• Maximum Recommended Voltage Rating: 32 V
• Maximum Wire Gauge: 18 AWG
• Minimum Wire Gauge: 22 AWG
• Packaging: Box
• Product Color: Red
• Product Material: Plastic
• Product Type: Connector
• Rohs 2011 65 Eu Compliant: Yes
• Rohs Eu Comments: RoHS 2011/65/EU compliant without exemption
• Trademark: Scotchlok
• Voltage Application: Low Voltage
• Wire Connector Type: IDC Connectors
