Scotchlok MVI14-250DFX 3M Fema...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$52.86

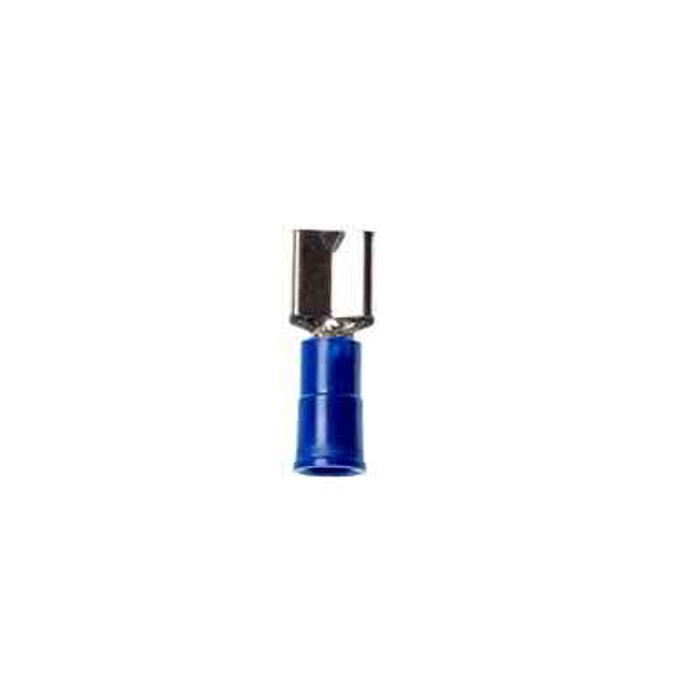

Scotchlok MVI14-250DFX 3M Female Disconnect Vinyl Insulated, 100/bottle, MVI14-250DFX

Scotchlok MVI14-250DFX 3M Female Disconnect Vinyl Insulated, 100/bottle, MVI14-250DFX

(No reviews yet) Write a Review

Model: MVI14-250DFX
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$52.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3M Scotchlok Female Disconnect Vinyl Insulated, 100/bottle, MVI14-250DFX

  • Overview

    • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
    • Made of durable brass for good conductivity and has corrosion-resistant tin plating
    • Dents and rolled edges of this female disconnect terminal offer excellent holding force
    • Blue vinyl-insulated, butted seam with an interlocking barrel and funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
    • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
    • Mates with 0.25-in wide male tab
    • Accommodates wire sizes 16 to 14 AWG
    • 3M™ Scotchlok™ Color-Coded Standard Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve. The polyvinyl chloride sleeve serves to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The vinyl-sleeve insulation is abrasion-resistant and flared to ensure easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
    • Allows for quick and easy disconnect of wires
    • 100/carton, 500/case
    • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
    • 3M™ Scotchlok™ Color-Coded Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

  • Legal Disclaimer

    • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
    • Manufacturing Origin: USA
    • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Manufacturer Resources

Product Specs

3m Id:
80611465842
Agency Approvals:
UL and CSA
Barrel Style:
Interlocking Barrel
Conductor Size:
16 - 14 AWG
Csa File Number:
LR22190
Fastener Orientation:
Female
Insulation Material:
Vinyl
Mates With Male Tab Width W :
0.250 Inch
Maximum Insulation Outer Diameter:
0.145 Inch
Packaging:
100 per bottle
Pad Width:
0.25 Inch
Product Brand:
Scotchlok
Product Length:
0.83 Inch
Rohs 2011 65 Eu Compliant:
Yes
Rohs Eu Comments:
RoHS 2011/65/EU compliant without exemption
Solution For:
Wireless Network: Infrastructure Accessories
Terminal Style:
Standard
Terminal Type:
Disconnect
Thickness:
0.032 Inch
Trademark:
Scotchlok
Ul File Number:
E70512

Scotchlok MVI14-250DFX – Frequently Asked Questions

1) What wire gauge does the Scotchlok MVI14-250DFX female disconnect crimp onto?
The MVI14-250DFX takes 16 to 14 AWG conductor. That is the blue color code band, so if you are crimping 22-18 AWG (red) or 12-10 AWG (yellow), this is the wrong barrel. There is also an insulation limit: the funnel sleeve accepts wire with a maximum insulation outer diameter of 0.145 inch, which matters on thick-jacketed fixture wire.
2) What voltage is this Scotchlok disconnect rated for in a lighting fixture?
It carries a 600V rating for building wire and 1000V for signs, fixtures and luminaires, so it is usable inside a sign or fixture canopy as well as in general branch wiring.
3) Is this terminal UL Listed and CSA certified for an inspected commercial job?
Yes, UL Listed and CSA Certified, and RoHS 2011/65/EU compliant without exemption. The agency file numbers are UL E70512 and CSA LR22190, which is what an inspector or a submittal package usually wants to see.
4) Can these disconnects be used in a hot attic or on rooftop HVAC equipment?
The vinyl-insulated MVI14-250DFX is rated from -40 to 221 degrees F (-40 to 105 degrees C), which covers attic plenum heat, rooftop units and cold-climate exterior work. For anything hotter at the terminal, such as direct contact with a heating element, you want a nylon or non-insulated terminal instead.
5) What is the terminal made of, and will it hold up in a damp or outdoor enclosure?
Brass barrel with tin plating, so you get good conductivity plus corrosion resistance in damp locations. The vinyl sleeve is abrasion resistant and flared at the entry, and the barrel is an interlocking butted-seam style that resists opening up under crimp pressure.
6) Will this female disconnect come loose off the tab from vibration?
The receptacle has dents and rolled edges that increase holding force on the male tab while still letting you pull it off by hand for service. That is the detail that keeps it seated on vibrating equipment like blower motors, without needing a locking tab.
7) Do I need a male and a female disconnect to make a serviceable splice?
Yes. The MVI14-250DFX is the female half only, so a disconnectable splice between two wires needs a matching 0.250 inch male disconnect crimped on the other conductor. If the other side is equipment with a factory 1/4 inch tab, the female alone finishes the connection.
8) How many terminals come in a bottle, and how are they packed for a service van?
They ship 100 per bottle. The bottle format is handy for a van or a bench bin since you can pour out a handful without a strip or tape to feed.
9) How long is the MVI14-250DFX terminal overall?
Overall length is 0.83 inch, which is worth knowing when you are stacking several disconnects in a tight junction box or fixture canopy and need to judge how much wire slack to leave.
