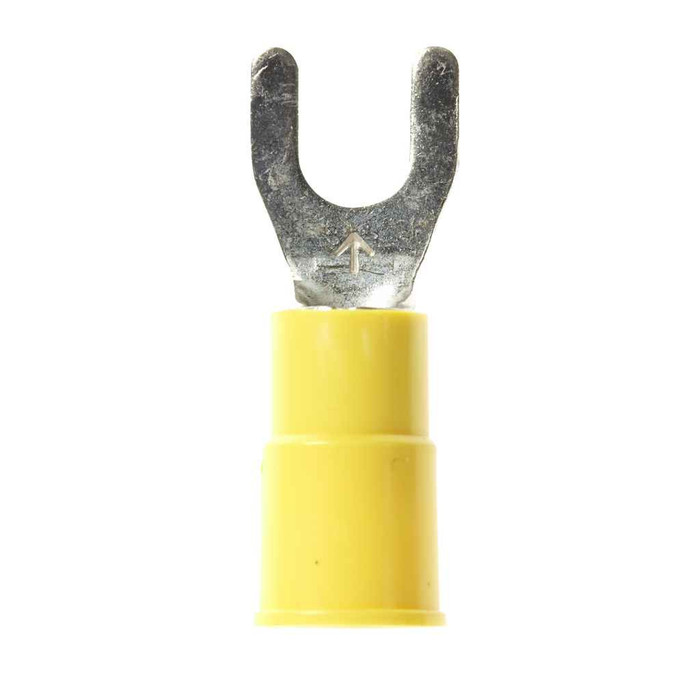

3M Scotchlok Fork Vinyl Insulated Terminal, 50/bottle

The Scotchlok fork terminal takes 12 to 10 AWG stranded copper (3.31 to 5.26 mm2). The barrel inside diameter is 0.135 inch and it will accept wire with an insulation outer diameter up to 0.25 inch, so standard THHN in those gauges seats without stripping back the jacket further than normal. Anything 14 AWG or smaller will not crimp reliably in this barrel.

Two stud sizes are offered: #8 and #10. The fork slot clearance is 0.29 inch, so the tongue slides over the threaded stud without removing the nut completely. Pick the size that matches the terminal block or lug stud you're landing on, since a #10 fork on a #8 stud will float under the nut.

A fork (spade) terminal like the Scotchlok MV10-10FX is the one to use when you want to back the nut off and slide the connector on or off without disconnecting anything else, which is why it suits free-standing studs and terminal strips. Its wider-tongue design is specifically for free-standing studs. A ring terminal is the better choice where vibration or a captive connection matters, because the nut has to come all the way off and the conductor cannot back out sideways.

The rated temperature range is -40 to 221 degrees F (-40 to 105 degrees C), which covers attic, rooftop sign and unheated mechanical room service. The insulation is vinyl (PVC), so it handles heat and cold in that band but is not a substitute for a nylon or heat-shrink terminal where abrasion resistance or moisture sealing is the concern.

Overall length is 1.03 inch and overall width 0.38 inch, with dimension E at 0.84 inch and a 0.29 inch fork clearance. On closely spaced terminal blocks, check the 0.38 inch width against your stud pitch, since adjacent forks can touch if the spacing is tighter than that.

Each bottle holds 50 terminals, and a full case is 500 pieces. The bottle packaging suits a van or service cart; the case quantity is the way to buy for a standardized MRO stock of 12 to 10 AWG fork terminals across a facility.

It's a brazed-seam barrel in electrolytic copper. The brazed seam keeps the barrel from splitting open under crimp pressure the way a butt-seam barrel can, and the funnel-shaped PVC sleeve lets you feed stranded conductors in without birdcaging the strands.

Yes on both counts: RoHS 2011/65/EU compliant without exemption, and manufactured in the United States. That combination is what government, healthcare and education procurement usually needs for domestic-preference and environmental documentation.
