3M 7000133316 3M™ Scotchlok™ R...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.39
$0.39

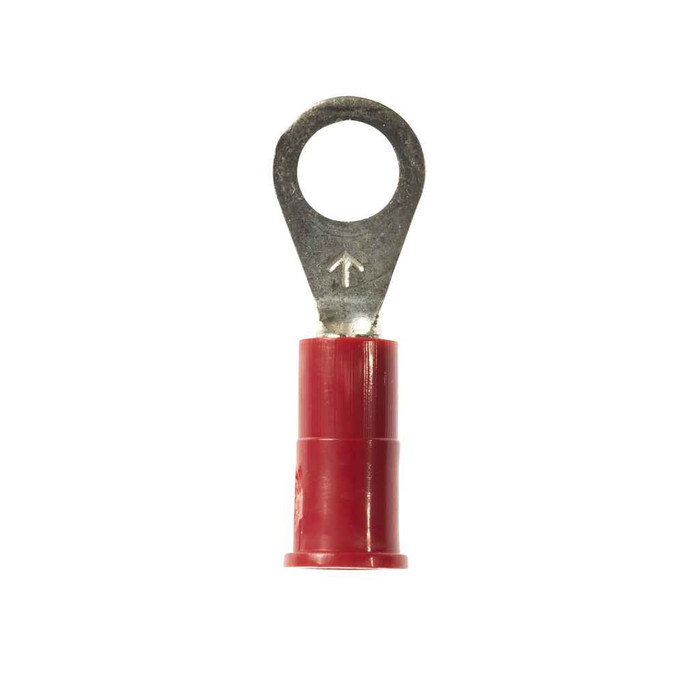

3M 7000133316 3M™ Scotchlok™ Ring Vinyl Insulated, 100/bottle, MV18-10R/LX, standard-style ring tongue fits around the stud, 500/Case

3M 7000133316 3M™ Scotchlok™ Ring Vinyl Insulated, 100/bottle, MV18-10R/LX, standard-style ring tongue fits around the stud, 500/Case

(No reviews yet) Write a Review

Model: 7000133316
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.39
$0.39
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3M™ Scotchlok™ Ring Vinyl Insulated, 100/bottle, MV18-10R/LX, standard-style ring tongue fits around the stud, 500/Case

  • Features

    • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
    • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
    • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
    • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
    • Standard-style ring tongue fits around the stud
    • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)


7000133316 - spec sheet

Manufacturer Resources

Product Specs

Ais Url Article Information Sheet :
https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xm821582ZOv70k17zHvu9lxtD7xtBevSS
Connection Width Imperial :
0.19 in
Connection Width Metric :
4.826 mm
Country Of Origin:
United States
Etim Class 8 0:
EC001052
Insulation Material:
Vinyl
Maximum Conductor Size Imperial :
18 AWG
Maximum Conductor Size Metric :
0.823
Maximum Operating Temperature Celsius :
105.0 Degree
Minimum Conductor Size Imperial :
22 AWG
Minimum Conductor Size Metric :
0.326 mm²
Overall Length Imperial :
0.93 in
Overall Length Metric :
23.62 mm
Overall Width Imperial :
0.31 in
Overall Width Metric :
7.87 mm
Product Color:
Red
Rds Url Regulatory Data Sheet :
https://cdmsweb.3m.com/ingredientcommunication/file/Media/I5iI7p13YB8=
Terminal Type:
Ring
Department:
Electrical

3M 7000133316 – Frequently Asked Questions

1) What wire gauge does the 3M Scotchlok MV18-10R/LX red ring terminal accept?
The MV18-10R/LX takes stranded or solid conductors from 22 AWG up to 18 AWG (0.326 to 0.823 mm2). Red is the standard color code for that range, so if you are landing 16 or 14 AWG you need the blue 16-14 barrel instead, not this one.
2) What stud or screw size does this Scotchlok ring terminal fit?
The ring opening measures 0.19 in (4.826 mm), which lands it on a #10 stud or screw. The whole terminal is 0.93 in long by 0.31 in wide, so it stays tight in crowded terminal blocks and fixture canopies.
3) Can I use these ring terminals on 277V or 480V lighting circuits?
Voltage rating on the MV18-10R/LX is 600V for building wire and 1000V for signs, fixtures and luminaires, so 277V fixture whips and 480V control wiring are both inside the rating. Conductor size is the limit here, not voltage.
4) Are 3M Scotchlok MV18-10R/LX terminals UL Listed for commercial and institutional work?
They are UL Listed, CSA Certified and RoHS 2011/65/EU compliant, which covers most inspector and facility-spec requirements on fixture and control wiring. Country of origin is the United States, which matters if you are bidding work with domestic sourcing language.
5) Will these hold up in an unconditioned attic or outdoor sign enclosure?
Rated -40 to 221 degrees F (-40 to 105 C), so attic, rooftop and sign cabinet temperatures are covered. The barrel is electrolytic copper with tin plating for corrosion resistance, and the sleeve is vinyl. For direct water exposure you still want a sealed or heat-shrink terminal rather than this vinyl-insulated style.
6) Ring terminal or fork/spade terminal for a fixture ground stud?
Use the ring. The MV18-10R/LX is a standard-style ring tongue that closes fully around the stud, so the wire cannot back out if the nut loosens, which is why ring terminals are the normal choice for grounds and any connection subject to vibration. A fork terminal slips off under a loosened screw and is only appropriate where you need to service the connection without fully removing the screw.
7) How do these come packaged for a shop or service truck?
3M part 7000133316 is packed 100 per bottle, 500 per case. The bottle packaging is what makes them practical on a van, and the funnel-shaped PVC sleeve lets you feed small stranded conductors in without brooming the strands.
