3M 7100017418 3M™ Scotchlok™ R...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.53
$0.59

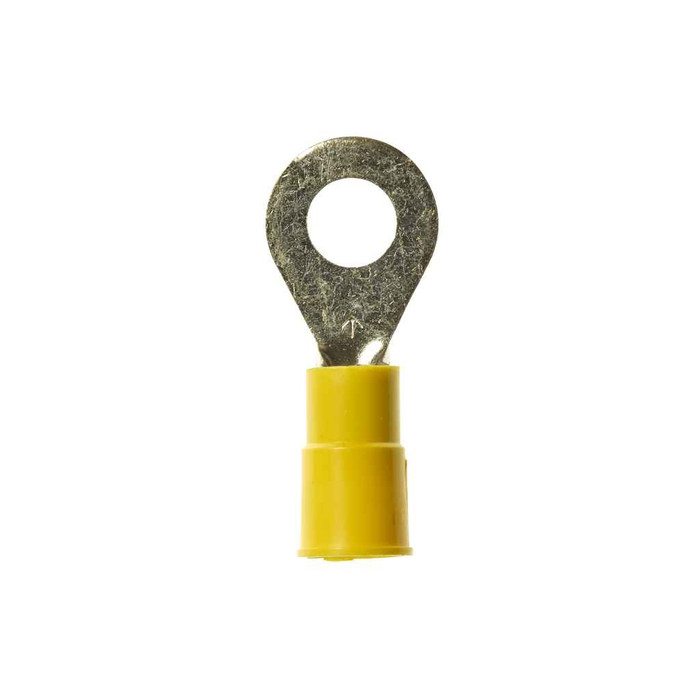

3M 7100017418 3M™ Scotchlok™ Ring Vinyl Insulated, 50/bottle, MV10-14R/SX, standard-style ring tongue fits around the stud, 500/Case

3M 7100017418 3M™ Scotchlok™ Ring Vinyl Insulated, 50/bottle, MV10-14R/SX, standard-style ring tongue fits around the stud, 500/Case

(No reviews yet) Write a Review

Model: 7100017418
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.53
$0.59
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3M™ Scotchlok™ Ring Vinyl Insulated, 50/bottle, MV10-14R/SX, standard-style ring tongue fits around the stud, 500/Case

  • Features

    • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
    • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
    • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
    • Standard-style ring tongue fits around the stud
    • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
    • 600V-rated for building wire and 1000V for signs, fixtures or luminaires


7100017418 - spec sheet

Manufacturer Resources

Product Specs

Ais Url Article Information Sheet:
https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xm82en8mxMv70k17zHvu9lxtD7xtBevSS
Connection Width Imperial:
0.25 in
Connection Width Metric:
6.35 mm
Country Of Origin:
United States
Etim Class 7 0:
EC001052
Etim Class 8 0:
EC001052
Insulation Material:
Vinyl
Maximum Conductor Size Imperial:
10 AWG
Maximum Conductor Size Metric:
5.26
Maximum Operating Temperature Celsius:
105.0 Degree
Minimum Conductor Size Imperial:
12 AWG
Minimum Conductor Size Metric:
3.31 mm²
Overall Length Imperial:
1.26 in
Overall Length Metric:
32.004 mm
Overall Width Imperial:
0.53 in
Overall Width Metric:
13.462 mm
Product Color:
Yellow
Rds Url Regulatory Data Sheet:
https://cdmsweb.3m.com/ingredientcommunication/file/Media/+1izgWz97uM=
Terminal Type:
Ring
Department:
Electrical
Product Type:
Ring Terminal
Product Group:
Wire Connectors & Terminals
Product Subgroup:
Lugs & Terminals

3M 7100017418 – Frequently Asked Questions

1) What wire gauge does the 3M Scotchlok MV10-14R/SX ring terminal accept?
The MV10-14R/SX yellow ring terminal is built for 12 to 10 AWG stranded or solid copper wire (3.31 mm2 to 5.26 mm2 metric). Yellow is the standard color code for that gauge band in the Scotchlok vinyl insulated line, so if you are crimping 14 AWG or smaller you need the blue or red body instead, not this one.
2) What stud or screw size will this 3M Scotchlok ring terminal fit over?
The ring opening measures 0.25 inch (6.35 mm), so it drops over a 1/4 inch stud or bolt. It is a standard-style ring tongue, meaning the ring is closed and has to go over the end of the stud rather than slide in from the side. If the stud is captive and you cannot pull the wire off the end, you want a spade or flanged fork terminal instead.
3) Can I use this terminal on 277/480V lighting circuits?
No. The Scotchlok vinyl insulated ring is rated 600V for building wire and 1000V for signs, fixtures or luminaires, so a 277V luminaire tap is within the fixture rating and a 480V building-wire conductor is not. For the higher building-wire voltages you need a terminal carrying a rating above 600V for that application.
4) Will this ring terminal hold up in an unconditioned mechanical room or outdoor enclosure?
Temperature range runs -40 to 221 degrees F (-40 to 105 degrees C), with 105 C stated as the maximum operating temperature, so rooftop equipment, attic runs and unheated mechanical spaces are inside its window. The barrel is electrolytic copper with tin plating for corrosion resistance. The vinyl body is not a sealed or adhesive-lined insulation, so in a wet or direct-spray location it should sit inside a rated enclosure.
5) Does the 3M MV10-14R/SX carry a UL listing for institutional work?
It is UL Listed, CSA Certified, and RoHS 2011/65/EU compliant. That covers most institutional and government specs that call for listed terminations, and the CSA mark means the same part can go into Canadian work. Country of origin is the United States, which matters if you are working to a domestic-preference procurement rule.
6) How do these 3M Scotchlok ring terminals come packaged for a crew?
They ship 50 per bottle, 500 per case. The bottle format is what most electricians want on a cart or in a van bin since you can pour out a handful without hunting through a strip. For a facilities stockroom standardizing on 12-10 AWG terminations, the case of 500 is the restock unit.
7) Is any special tooling needed to crimp the MV10-14R/SX, and what makes insertion easier?
The polyvinyl chloride sleeve is funnel-designed at the wire entry, which guides stray strands into the barrel instead of letting them splay outside it, so you get a full-strand crimp without pre-twisting. Crimp it with a tool sized for insulated 12-10 AWG terminals, using the yellow die position on a color-coded crimper.
