RACO 4-11/16 in. Square Steel ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$69.73
$20.73
RACO 252MS 4-11/16 in. Square Boxes & Covers 252MS

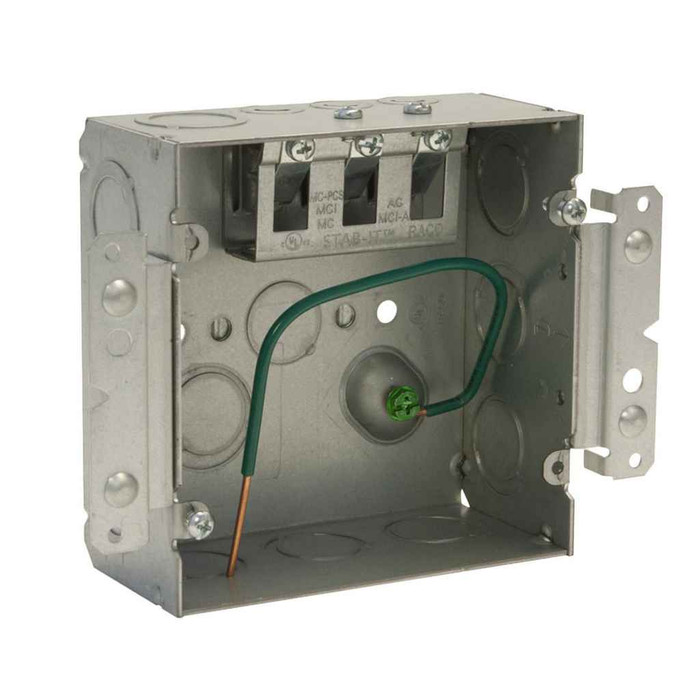

RACO 4-11/16 in. Square Steel Electrical Box with STAB-IT II Connector and M-Style Bracket

(No reviews yet) Write a Review

Model: 252MS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$69.73
$20.73
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RACO 4-11/16 in. Square Steel Electrical Box with STAB-IT II Connector and M-Style Bracket

Professional electrical box solution with advanced cable management

The RACO 4-11/16 in. square steel electrical box delivers reliable performance for commercial electrical installations. This welded steel construction box features a 2-1/8 in. depth with 42 cubic capacity and includes an innovative STAB-IT II connector system with pre-installed 8 in. solid #12 pigtail for faster installation. The included M-style bracket enables secure mounting to metal or wood studs, while the gray finish provides professional appearance and durability.

Professional Features & Benefits

  • STAB-IT II Connector System: Accommodates three cables with improved design allowing easy cable removal and connector reuse for enhanced installation flexibility
  • Versatile Cable Compatibility: Accepts cable sizes from 14/2 up to 10/3 for flex, MC, MCI, MCI-A, MC-PCS, AC, and HCF cable types
  • 42 Cubic Capacity: Provides ample wiring space for complex electrical connections and multiple circuits
  • Welded Steel Construction: Ensures structural integrity and long-term reliability in demanding commercial applications
  • Pre-installed Pigtail: 8 in. solid #12 pigtail reduces installation time and ensures proper grounding connections
  • cULus Listed: Meets rigorous safety standards and code compliance requirements for professional installations
  • 600V Rating: Suitable for use without bonding jumper in circuits up to 600 volts for versatile electrical applications

Technical Specifications

  • Actual Depth: 2.125 in
  • Application: Commercial
  • Bracket Type: M, for Metal or Wood Studs
  • Cable Clamps: 1
  • Carton Quantity: 25
  • Certified Listed: cULus Listed
  • Cubic Capacity: 42
  • Drawn Or Welded: Welded
  • Fire Resistance: No
  • Knockouts: (11) TKO, (1)1/2"
  • Minimum Pack Quantity: 25
  • Number Of Gang S : 2-Gang
  • Pallet Quantity: 1000
  • Product Color: Gray
  • Product Height: 4.85 in
  • Product Material: Steel
  • Product Type: Box
  • Product Weight: 1.379 lb
  • Product Width: 6.546 in
  • Raised Ground: Yes
  • Wiring System: Flex

Professional Applications

  • Commercial Building Electrical Systems
  • Office Building Installations
  • Retail and Industrial Facilities
  • Multi-Unit Residential Properties
  • Educational and Healthcare Facilities
  • Professional Service Buildings
  • Light Industrial Applications

Why Choose RACO Quality?

RACO electrical boxes are designed in USA and manufactured to meet the highest standards of reliability and durability. With cULus listing and welded steel construction, this square electrical box provides the professional quality and code compliance required for demanding commercial applications. The raised ground feature and 600V rating ensure safe, reliable performance for years of service.

Manufacturer Resources

Product Specs

Actual Depth:
2.125 in
Bracket Type:
M, for Metal or Wood Studs
Cable Clamps:
1
Carton Quantity:
25
Certified Listed:
cULus Listed
Cubic Capacity:
42
Drawn or Welded:
Welded
Fire Resistance:
No
Knockouts:
(11) TKO, (1)1/2"
Minimum Pack Quantity:
25
Number Of Gangs:
2-Gang
Pallet Quantity:
1000
Product Color:
Grey
Product Height:
4.85 in
Product Material:
Steel
Product Type:
Outlet Box
Product Weight:
1.379 lb
Product Width:
6.546 in
Raised Ground:
Yes
Wiring System:
Flex
Department:
Electrical
Product Group:
Boxes & Enclosures
Product Subgroup:
Electrical Boxes
Application:
Commercial

RACO 252MS – Frequently Asked Questions

1) Can the RACO 252MS square box be mounted to metal studs, or is it wood only?
Both. The 252MS ships with an M-style bracket rated for metal or wood studs, so one part covers steel stud framing and wood framing on the same job. No separate bracket or box hanger is needed.
2) What cable types and sizes does the STAB-IT II connector on this RACO box accept?
The STAB-IT II connector takes 14/2 through 10/3 in flex, MC, MCI, MCI-A, MC-PCS, AC and HCF cable, and holds up to three cables in the one connector. Unlike a one-shot clamp, the STAB-IT II design lets you back a cable out and reuse the connector, which matters when a run gets re-pulled.
3) Will a 2-1/8 in. deep 4-11/16 box fit in a 2x4 stud wall?
Yes. Depth is 2.125 in., so it sits inside the 3-1/2 in. cavity of a 2x4 wall with room behind. Overall the box runs 4.85 in. by 6.546 in. including the bracket, so check your stud spacing and any insulation or sheathing before you set it.
4) Can I use this RACO box in a fire-rated wall assembly?
No. The 252MS carries no fire resistance rating, so it is not the box for a rated wall or ceiling assembly. For those openings you need a box and putty pad or listed fire-rated assembly that the rating documentation specifically covers.
5) Do I need a bonding jumper with this RACO box on a 600V circuit?
No. The 252MS is rated for use without a bonding jumper in circuits up to 600 volts, and it has a raised ground provision plus a pre-installed 8 in. solid #12 pigtail for the grounding connection.
6) Can I buy a single RACO 252MS box or do I have to take a case?
The 252MS sells in cartons of 25, which is also the minimum pack quantity. A full pallet is 1,000 pieces. If you are standardizing a building on one box, the pallet quantity is the number to quote against.
7) How many knockouts are on the RACO 252MS and what size?
Eleven TKO (tapered, two-step) knockouts plus one dedicated 1/2 in. knockout. That gives you plenty of entry points for added MC drops or EMT beyond the single STAB-IT II connector, which itself handles up to three cables.
8) Is the RACO 252MS a 1-gang or 2-gang box, and what cover do I need?
It is a 2-gang box in the 4-11/16 in. square body. A 4-11/16 square box takes a square cover sized to the body, so you will order either a flat 2-gang device cover or a raised plaster ring to match your wall finish depth. Covers and rings are a separate line item from the box.
9) Will the RACO 252MS work for a residential rewire or is it a commercial box?
It is specified for commercial use and the STAB-IT II connector is set up for flex and MC wiring, which is what commercial jobs run. If you are pulling NM (Romex) in a single-family rewire, this is more box than you need and the connector is not the right clamp for that cable. It does suit multi-unit residential, where MC is common.
10) Is this RACO square box a welded box or a drawn box, and does it matter?
Welded steel. Drawn boxes are formed from one piece and are typically shallower; a welded box like the 252MS is built up from sheet, which is how it gets to 2-1/8 in. depth and 42 cubic inches. Either way it is steel and cULus Listed.
