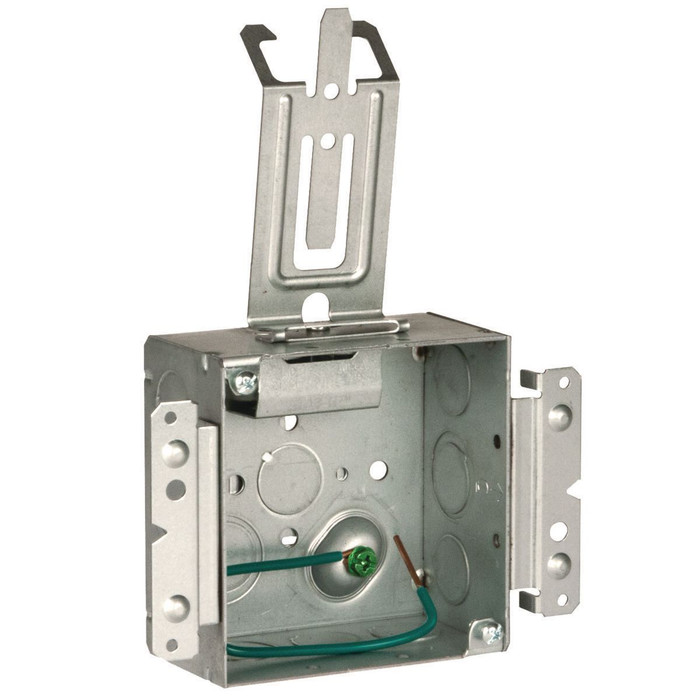

RACO 4 in. Square Welded Box, STAB-IT® Connector, M Bracket, 2-1/8 in. Deep
This RACO 4 in. square electrical box is welded for rugged one-piece construction and fitted with a STAB-IT® Series connector for fast, reliable cable termination. The box measures 2-1/8 in. deep and includes a raised ground with an 8 in. #12 solid copper pigtail for dependable grounding continuity. Configured with UBS, an M bracket for metal or wood stud mounting, and an integrated cable management clip, this box is UL Listed for demanding commercial and residential wiring applications. Designed for branch-circuit device and junction installations, it delivers a durable, code-compliant enclosure for new construction and renovation projects alike.
Key Features
- Trade Size: 4 in. square box body, 2-1/8 in. deep, for standard device and junction installations.
- Welded Construction: One-piece welded box body provides added rigidity and durability on the jobsite.
- STAB-IT® Connector: STAB-IT® Series connector allows quick, tool-minimal cable insertion and secure termination.
- Raised Ground: Includes a raised ground terminal with an 8 in. #12 solid copper pigtail for reliable equipment grounding.
- M Bracket: Mounting bracket configured for installation on metal or wood studs.
- Cable Management Clip: Integrated clip helps organize and secure cable runs entering the box.
- Knockouts: 1/2 in. and 1/2 - 3/4 in. combination (TKO) knockouts for flexible conduit and cable entry.
- UBS Configuration: Equipped per UBS designation for compatible device and cover installations.
Certifications & Compliance
- UL Listed
Technical Specifications
- Product Depth: 2.125 in
- Bracket Type: M, for Metal or Wood Studs
- Knockouts: 1/2 in;1/2 - 3/4 in Combination (TKO)
- Series: STAB-IT® Series
- Certified Listed: UL Listed
Typical Applications
- Commercial and Residential Electrical Wiring
- New Construction and Renovation Projects
- Metal or Wood Stud Wall Installations
- Junction and Device Box Applications
- Grounded Branch Circuit Wiring
Why RACO?
RACO builds this square box with welded, one-piece construction and a STAB-IT® Series connector to speed installation while maintaining a secure, code-compliant termination. The raised ground with #12 solid copper pigtail and UL Listing give electricians confidence in reliable grounding and inspection-ready performance on every job.
Manufacturer Resources
Spec Sheet
Product Specs
- list_batch:
- RACO-20260916
- Product Size:
- 4 in
- Product Depth:
- 2.125 in
- Product Shape:
- Square
- Drawn or Welded:
- Welded
- Bracket Type:
- M, for Metal or Wood Studs
- Knockouts:
- 1/2 in;1/2 - 3/4 in Combination (TKO)
- Series:
- STAB-IT® Series
- Certified Listed:
- UL Listed
- Product Type:
- Outlet Box
- Department:
- Electrical
- Product Subgroup:
- Electrical Boxes
- Product Group:
- Boxes & Enclosures
RACO 232MSCM – Frequently Asked Questions
1) Can the RACO 232MSCM 4 in. square box be mounted on metal studs, or is it wood stud only?
Both. The 232MSCM carries an M bracket, which RACO specifies for metal or wood stud mounting, so the same box works on a steel stud commercial partition and on wood framing in residential work. No separate bracket or box hanger is needed.
2) What does the STAB-IT connector on this RACO box do, and do I still need separate cable clamps?
The box comes fitted with a STAB-IT Series connector, so nonmetallic cable is pushed in and held at the box without adding a separate clamp-type connector to a knockout. There is also an integrated cable management clip to dress the cable runs entering the box. If you bring conduit in through the knockouts, that connector is a separate item.
3) Does this RACO 4 square box come with a ground provision already in it?
Yes. The 232MSCM has a raised ground with an 8 in. #12 solid copper pigtail already installed, so you land your equipment grounds on the pigtail rather than tapping the box or adding a ground clip.
4) Does a cover or device ring come with the RACO 232MSCM box?
No cover or mud ring is included. The 232MSCM is the box body with the STAB-IT connector, M bracket, cable clip and ground pigtail; you order the 4 in. square plaster ring or flat blank cover separately to match your device count and wall finish depth.
5) How deep is the RACO 232MSCM square box and what conduit and cable entries does it have?
It is a 4 in. square box, 2-1/8 in. deep, which is the deep version of the standard 4 square. Entries are 1/2 in. knockouts plus 1/2 - 3/4 in. combination (TKO) knockouts, so you can run either trade size without a reducing washer.
6) Is a welded 4 in. square box better than a drawn one for my job?
The 232MSCM is welded, one-piece construction, which is the choice where the box takes abuse during rough-in or gets loaded by conduit runs. Drawn boxes are formed from a single sheet and are typically used for lighter residential cable work. At 2-1/8 in. deep, the welded version also gives you the larger wire volume for multiple cables or a pair of devices.
7) Is the RACO 232MSCM UL Listed for commercial work?
It is UL Listed, and RACO specifies it for commercial and residential branch-circuit device and junction installations in new construction or renovation.
8) What is the manufacturer part number for this RACO square box with the M bracket and STAB-IT connector?
The part number is RACO 232MSCM: 4 in. square welded box, 2-1/8 in. deep, STAB-IT Series connector, M bracket, raised ground. The RACO spec sheet for it is published by Hubbell at hubbellcdn.com under RACO-232MSCM-SPEC-EN.pdf.
