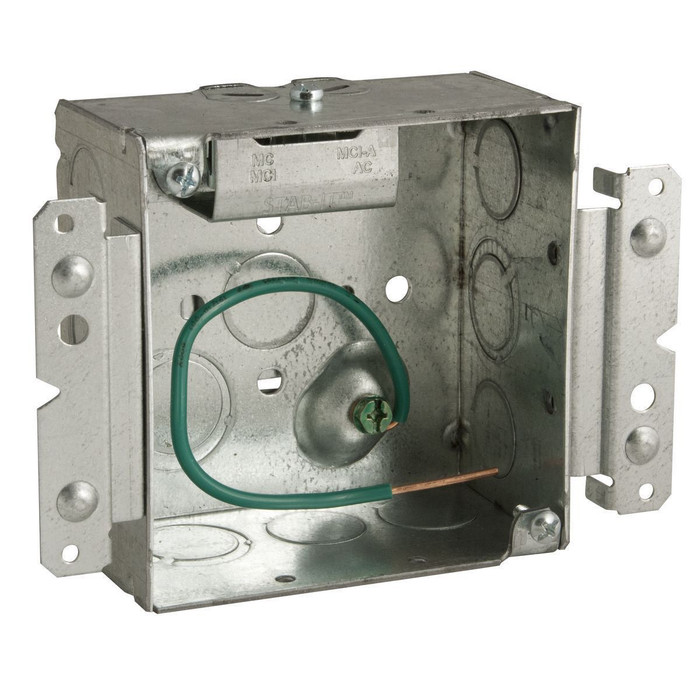

RACO 232MS 4 in. Square Welded Box, STAB-iT Series, 2-1/8 in. Deep, 600V

RACO 232MS 4 in. Square Welded Box, STAB-iT Series, 2-1/8 in. Deep, 600V

(No reviews yet) Write a Review

Model: 232MS

In Stock (leaves warehouse same day if ordered before 3pm ET)

$9.09
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RACO 232MS 4 in. Square Welded Box, STAB-iT Series, 2-1/8 in. Deep, 600V

The RACO 232MS is a 4 in. square welded outlet box built for durable, code-compliant electrical installations. Featuring a STAB-iT® Series connector, 2-1/8 in. depth, and a 600V rating, this box is engineered for reliable performance in commercial and residential wiring applications. It arrives with a raised ground and an 8 in. #12 copper pigtail for fast, secure grounding, and mounts easily with its M bracket for metal or wood studs. The 232MS is UL Listed for added confidence on the jobsite.

Key Features

  • Trade Size: 4 in. square box sized for standard outlet and junction box installations.
  • Welded Construction: Welded box design (Drawn or Welded: Welded) delivers added strength versus drawn alternatives.
  • Depth: 2-1/8 in. deep body provides ample interior working space for wiring and devices.
  • STAB-iT® Series Connector: Integrated STAB-iT connector allows fast, tool-minimal wire termination.
  • Voltage Rating: Rated 600V for demanding commercial and industrial branch circuits.
  • Raised Ground with Pigtail: Includes a raised ground and an 8 in. #12 copper pigtail for simplified equipment grounding.
  • M Bracket Mounting: M bracket is designed for mounting to metal or wood studs.
  • Knockouts: 1/2 in. and 1/2 - 3/4 in. combination (TKO) knockouts accommodate multiple conduit sizes.

Certifications & Compliance

  • UL Listed

Technical Specifications

  • Product Size: 4 in
  • Product Depth: 2.125 in
  • Product Shape: Square
  • Drawn or Welded: Welded
  • Bracket Type: M, for Metal or Wood Studs
  • Knockouts: 1/2 in;1/2 - 3/4 in Combination (TKO)
  • Series: STAB-IT® Series
  • Certified Listed: UL Listed

Typical Applications

  • New Construction and Renovation Wiring
  • Commercial and Residential Electrical Installations
  • Metal or Wood Stud Mounting Applications
  • Junction and Outlet Box Installations Requiring Equipment Grounding
  • 600V-Rated Branch Circuit Wiring

Why RACO?

RACO builds the 232MS with welded construction, a STAB-iT® Series connector, and an integrated raised ground with copper pigtail to simplify installation while supporting dependable, code-compliant performance. The UL Listed rating and 600V capability make it a trusted choice for electricians who need consistent quality on every job. From the M bracket to the combination knockouts, every detail of the 232MS is built to standardize and speed up box installation for metal or wood stud framing.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
RACO-20260916
Product Size:
4 in
Product Depth:
2.125 in
Product Shape:
Square
Drawn or Welded:
Welded
Bracket Type:
M, for Metal or Wood Studs
Knockouts:
1/2 in;1/2 - 3/4 in Combination (TKO)
Series:
STAB-IT® Series
Certified Listed:
UL Listed
Product Type:
Outlet Box
Department:
Electrical
Product Subgroup:
Electrical Boxes
Product Group:
Boxes & Enclosures

RACO 232MS – Frequently Asked Questions

1) Will the RACO 232MS mount to metal studs, or is it only for wood framing?
Both. The 232MS comes with an M bracket rated for metal or wood studs, so the same box covers steel stud commercial partitions and wood stud residential framing without changing part numbers.
2) How deep is the RACO 232MS 4 inch square box, and will it give me room for a device plus pigtails?
It's a 4 in. square box with a 2-1/8 in. (2.125 in.) deep body, which is the deeper of the two common 4-square depths and leaves working room for a device and conductors rather than forcing a splice-only install.
3) What conduit sizes will the knockouts on the RACO 232MS take?
The box has 1/2 in. knockouts plus 1/2 - 3/4 in. combination (TKO) knockouts, so you can land 1/2 in. connectors straight away or pop the outer ring for 3/4 in. without a step bit or a reducing washer.
4) Does the RACO 232MS come with a ground already in it?
Yes. The 232MS ships with a raised ground and an 8 in. #12 copper pigtail already attached, so the equipment ground is ready to splice when you rough in. No separate ground clip or screw to add.
5) Welded or drawn 4 square box, which should I spec?
The 232MS is a welded box. Welded construction is the stronger of the two for 4 in. square bodies, which is why it's the usual pick for commercial rough-in and anywhere the box takes abuse during framing. Drawn boxes are the lighter-duty alternative.
6) Is the RACO 232MS rated for 600 volt commercial branch circuits?
Yes, the 232MS carries a 600V rating and is UL Listed, which covers standard 120/208 and 277/480 branch circuit work in commercial and industrial buildings as well as residential wiring.
7) I need a box with threaded 3/4 in. hubs instead of knockouts - what should I order instead of the 232MS?
The RACO 232MS ships with 1/2 in. and 1/2 - 3/4 in. combination (TKO) knockouts, which are punched openings rather than threaded hubs. For an assembly that arrives with hubs already in place, the Thomas & Betts Red-Dot 2IH3-2 is a 2-gang RT box with three 3/4 in. hubs, sold in packs of 100. Choose by how the raceway terminates: hubs land conduit directly, knockouts take a connector sized to the opening you punch.
8) Which of the two is a UL Listed welded-body box for a 600V branch circuit?
The RACO 232MS is the welded-construction 4 in. square box here, UL Listed and rated 600V, with a raised ground and an 8 in. #12 copper pigtail included for equipment grounding. The Red-Dot 2IH3-2 from Thomas & Betts is identified as a 2-gang RT box with three 3/4 in. hubs. If your specification calls out a welded 4 in. square body on a stud bracket with the ground pigtail already fitted, the 232MS is the part that matches that description.
9) Can I standardize on the 232MS across a whole building's outlet and junction boxes?
That's what it's built for. One part number covers metal and wood stud framing via the M bracket, handles 1/2 in. or 3/4 in. raceway through the combination knockouts, and arrives pre-grounded with the copper pigtail. For a property or facilities crew that means one box on the truck instead of three, with the cover or ring chosen per opening.
