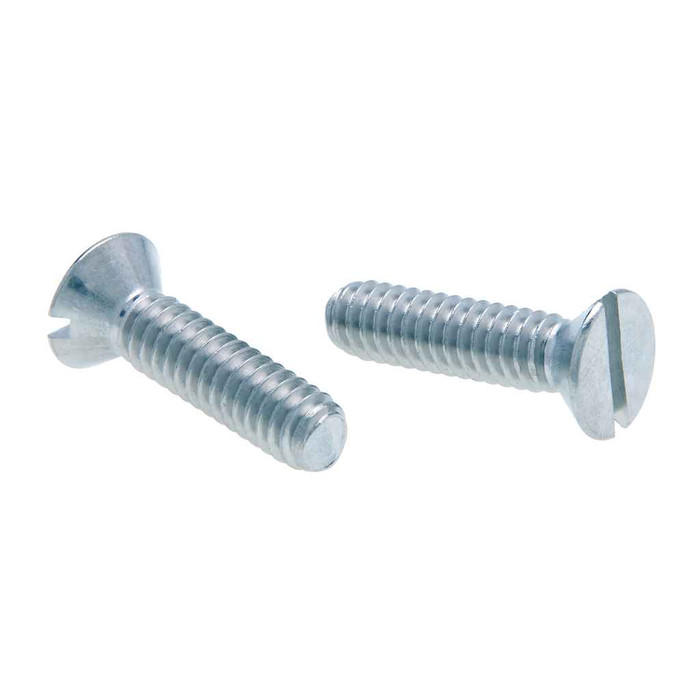

Metallics JFM61 4-40 x 1 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

Metallics JFM61 4-40 x 1 in. Flat Head Slotted Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFM61
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.17
$0.17
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
4-40 x 1 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

  • Features

    • Steel Zinc Material
    • 4-40 Diameter, 1" Length
    • Zinc yellow screws are popular in electronics applications.
    • Flat head with slotted Drive

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.055 - 0.067 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.191 - 0.212 in.
Fastener Length:
1
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.25 lbs
Product Width:
3 in
Slot Depth:
0.02 - 0.03
Slot Width:
0.031 - 0.039
Sub Division:
Electrical-E H2
Tensile Strength:
360 lb minimum
Thread Per Inch:
40
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JFM61 – Frequently Asked Questions

1) Will a 4-40 x 1 in. flat head machine screw thread into a standard 4-40 tapped hole or nut?
Yes. The Metallics JFM61 is cut to 40 threads per inch in UNC form, made to ANSI/ASME B1.1, so it mates with any standard 4-40 UNC tapped hole, nut, or insert. Thread length is the full 1 inch nominal screw length, so allow for how deep your tapped hole actually goes.
2) Does the head on the JFM61 machine screw sit flush in a countersunk hole?
It's a flat head, which is the countersink style that finishes flush with the surface when the hole is chamfered at 82 degrees. Head width runs 0.191 to 0.212 in. and head height 0.055 to 0.067 in., so your countersink needs to be at least that wide to bury the head completely. On an unchamfered hole the head will stand proud.
3) Are these zinc plated steel screws OK for outdoor or damp locations?
These are AISI 1006-1022 carbon steel with a zinc finish. Zinc plating handles indoor and dry enclosure work fine, but it is a sacrificial coating, not stainless, so in wet, washdown, or exterior exposure it will eventually rust. For those locations specify a stainless machine screw in the same 4-40 x 1 in. size instead.
4) How many 4-40 x 1 in. machine screws come in a pack, and can I buy just a few?
The JFM61 ships as a jar of 100, with 100 count being the order minimum. There is no loose or small-pack option on this item, so a job needing a dozen screws still buys the jar of 100. Metallics does list other sizes and quantities in this FM and FMP series by request.
5) Do these machine screws meet Buy American and ARRA requirements for a government job?
The JFM61 carries both an ARRA compliant and a Buy American compliant designation in the manufacturer's data, with country of origin listed as China. On federally funded work, confirm which clause your contract actually invokes, since the compliance flag and the origin need to be read together by your specifier.
