Metallics JSRM34 4-40 x 1/4 in...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.27
$0.27

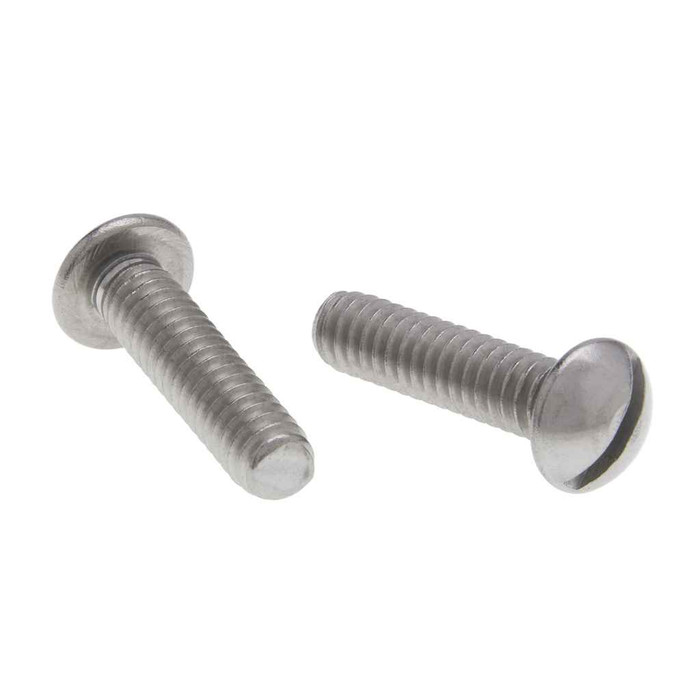

Metallics JSRM34 4-40 x 1/4 in. Round Head Slotted Machine Screws - 18-8 Stainless - 100qty

Metallics JSRM34 4-40 x 1/4 in. Round Head Slotted Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JSRM34
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.27
$0.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
4-40 x 1/4 in. Round Head Slotted Machine Screws - 18-8 Stainless - 100qty

  • Features

    • 18-8 stainless Material
    • Round head with slotted Drive
    • 4-40 Diameter, 1/4" Length

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.075 - 0.086 in.
Fastener Head Type:
Round
Fastener Head Width:
0.193 - 0.211 in.
Fastener Length:
4-Jan
Hardness:
Rockwell B85-B95
Language Code:
EN
Material Standard:
SAE
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.17 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.046 - 0.065
Slot Depth:
0.044 - 0.058
Slot Width:
0.031 - 0.039
Sub Division:
Electrical-E H2
Tensile Strength:
80000 psi minimum
Thread Per Inch:
40
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
SRM
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JSRM34 – Frequently Asked Questions

1) Will a 4-40 x 1/4 in. machine screw thread into a standard device or switch plate tapped hole?
The Metallics JSRM34 is a 4-40 thread, 40 threads per inch, with a 1/4 inch length. That is the small machine screw thread used on instrument panels, terminal blocks and small enclosure hardware, not the 6-32 used on standard wiring device mounting and wall plates. If your plate or device tap is 6-32, this screw will not engage it.
2) Do these Metallics machine screws meet Buy American or ARRA requirements on a public job?
Metallics flags the JSRM34 as compliant for both ARRA and Buy American, with country of origin China. If your contract language is strict domestic-melt, confirm the specific clause against that origin before submitting.
3) Are these stainless screws okay for outdoor or damp electrical boxes?
18-8 stainless is the material, which handles damp and outdoor general-purpose service without rusting the way plated steel does. Avoid continuous salt spray or chloride exposure, where 316 is the better choice.
4) Can I use the published tensile strength to spec these for a load-bearing connection?
Not as a design value. Metallics lists 80,000 psi minimum and Rockwell B85-B95 hardness, but notes outright that tensile figures for stainless screws are approximations because there is no single performance standard for stainless machine screws. Treat them as general-purpose fasteners, not structural ones.
5) Are the thread dimensions on these screws inch or metric standard?
Inch. The 4-40 designation is a Unified inch thread built to SAE material standard, so it mates with inch-tapped holes and a 4-40 tap, not with any M3 metric hardware.
6) How are these 4-40 stainless screws packaged and what is the minimum I can buy?
They ship in a jar, 100 count, and 100 is the order minimum. The jar weighs about 0.17 lbs.
7) I need a different length in 4-40 stainless. Is that an option?
Yes. The JSRM34 is the 1/4 inch length in the Metallics SRM machine screw series, and other sizes and quantities are available by request.
